Jenway 4510 User Manual
Page 8
2.5 Inputs/Outputs
451 050/REV A/03-03
5
1. Conductivity Socket
7 pin DIN socket which allows the conductivity cell to be connected.
2. Analog Out
2 x 4mm sockets. Analogue output (buffered electrode potential).
3. Output Socket
9 way socket for RS232 connection.
4. Power In
AC 9V I/P socket. 2.1 x 5.5mm socket allowing the power supply to be
connected to the instrument.

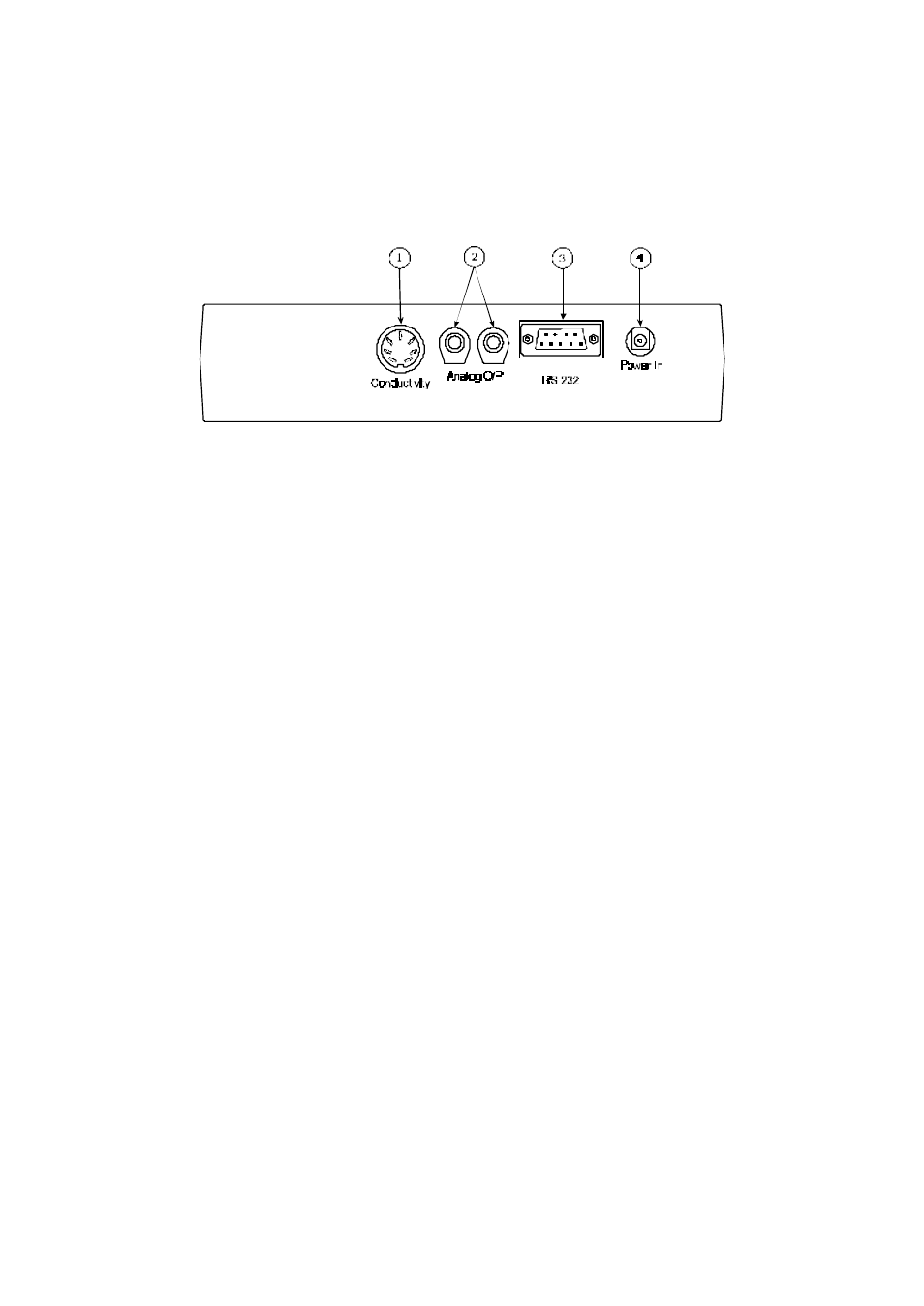

2.5.1 Rear panel layout
