Jenway 4510 User Manual
Page 6
451 050/REV A/03-03
3

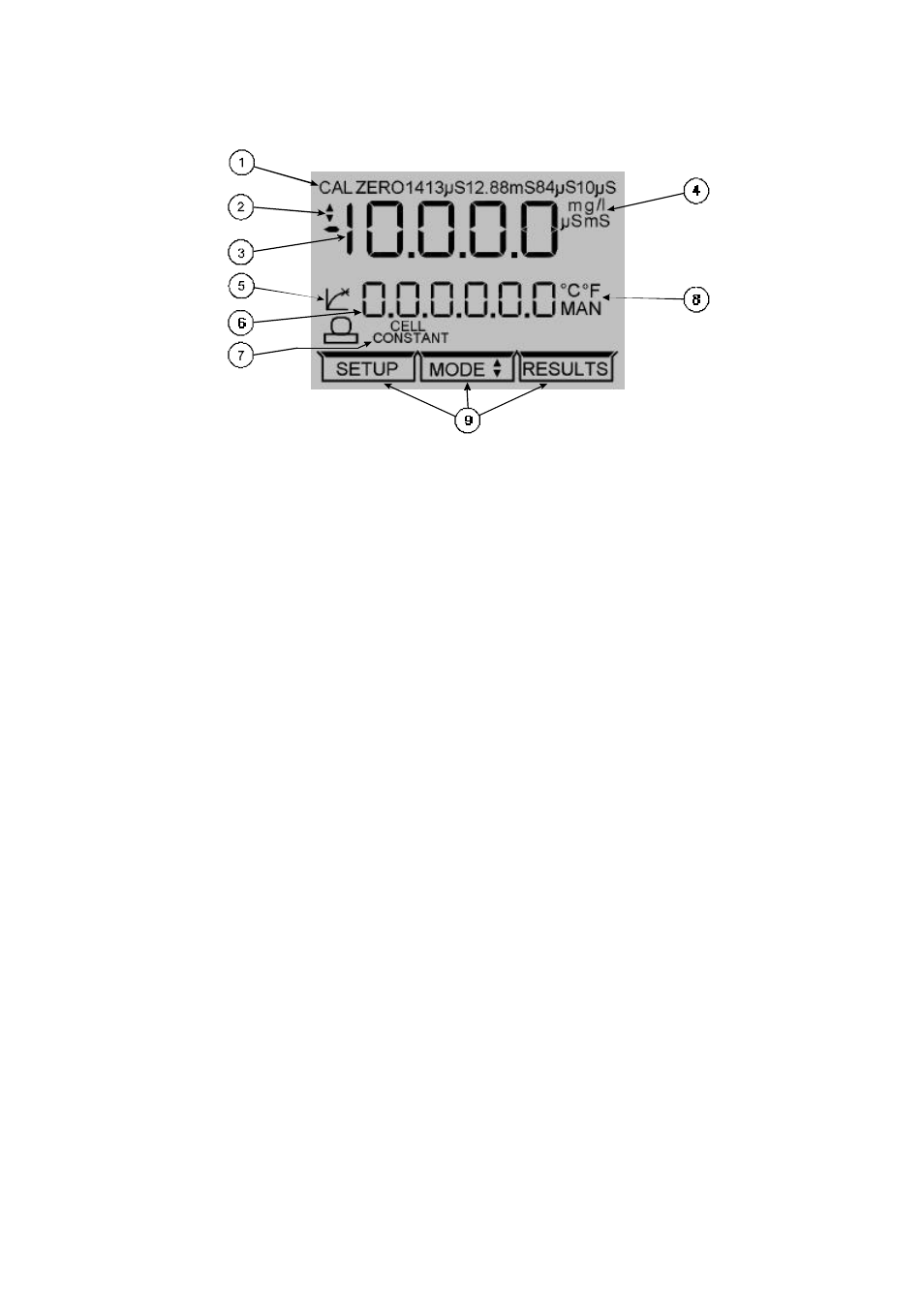

2.3 Displays
1.
Standard selection – indicates which type of standard is being used. Also indicates when a
calibration is being performed.
2.
Symbol – displayed during set-up of instrument parameters.
3.
Primary display – 4½ digit. Provides direct readout in Conductivity or TDS of samples and
standards.
4.
Mode annunciators – shows selected measurement mode; Conductivity (µS or mS) and TDS
(mg/l or g/l).
5.
Endpoint symbol
6.
Secondary display – 6 digit display. Provides direct readout of automatic or manual
temperature. Scrolls and displays selected parameter information in set-up mode.
7.
Status display – 2½ digit.
8.
Mode annunciators – indicates temperature in °C or °F and whether the measurements are
manually or automatically temperature compensated.
9.
Mode tags – Each mode tag is highlighted when selected; SETUP, MODE or RESULTS.
