HT401
EN - 17
4.4.9. Temperature measurement

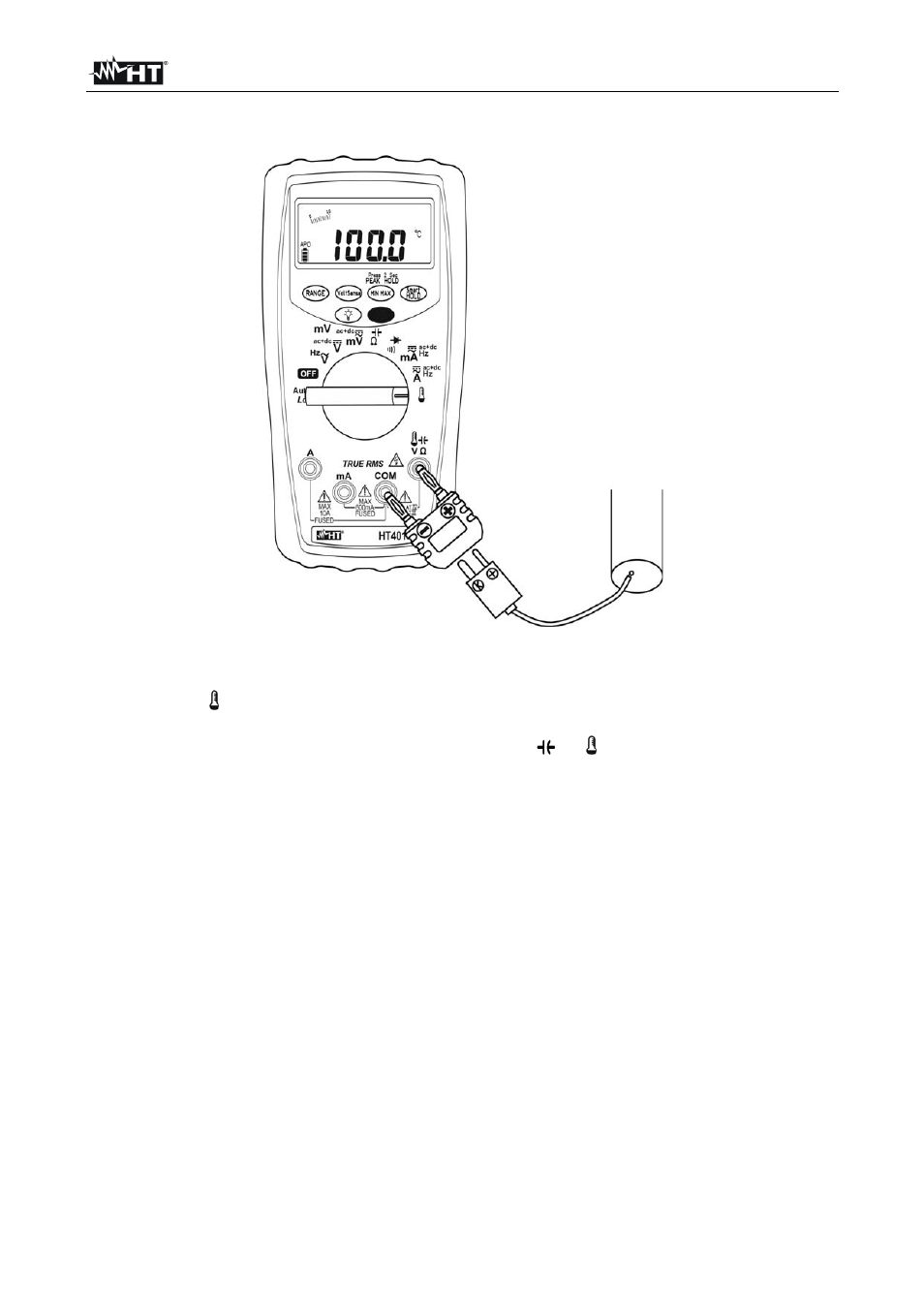

Fig. 10: Temperature measurement
1. Select the position
2. Press the MODE key to select measurement in °C or °F
3. Insert the supplied adapter into the input terminals
V
 and COM respecting the red
and black colours found on it.
4. Connect the K-type probe to the instrument by means of the adapter, respecting the
positive and negative polarity on the probe’s plug. The display shows the value of
temperature
5. The message “O.L” indicates that the temperature being measured exceeds the
maximum value measurable by the instrument
6. For Maximum and Minimum value measurement and HOLD function please refer to §
4.2
