American Standard 3505 - Manual (Page 2)

RUBBER
GASKET
TANK MTG.
BOLTS PRE-
INSTALLED
NUT
WASHER
WAX RING
SEALANT
5 4
6
8
7a 7b

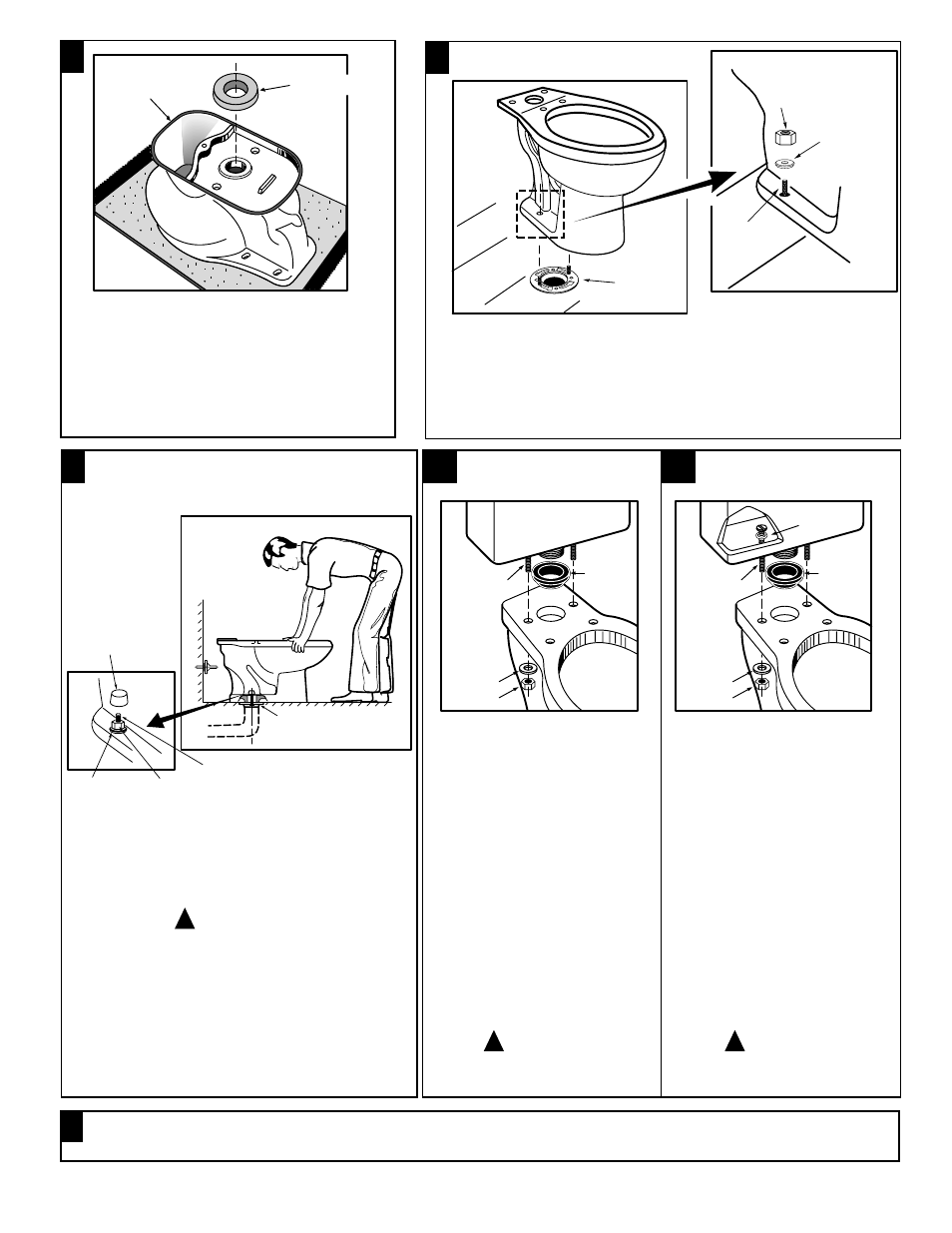

INSTALL WAX SEAL
Invert toilet on floor (cushion to prevent
damage), and install wax ring evenly around
waste flange (horn), with tapered end of ring
facing toilet. Apply a thin bead of sealant
around base flange. POSITION TOILET ON FLANGE
a. Unplug floor waste opening and install toilet on closet flange
so bolts project through mounting holes.
b.
Loosely install retainer washers and nuts. Side of washers
marked "THIS SIDE UP" must face up!
INSTALL TOILET
a. Position toilet squarely to wall and, with a
rocking motion, press bowl down fully on wax
ring and flange. Alternately tighten nuts until
toilet is firmly seated on floor.
CAUTION:
DO NOT OVERTIGHTEN NUTS
OR BASE MAY BE DAMAGED!
b. Install caps on washers. (If necessary, cut
bolt height to size before installing caps.)
c.
Smooth off the bead of sealant around
base. Remove excess sealant.
INSTALL TANK
a. Install large rubber gasket
over threaded outlet on bottom
of tank and lower tank onto bowl
so that tapered end of gasket fits
evenly into bowl water inlet
opening, and tank mounting
bolts go through mounting holes.
Secure with metal washers and
nuts.
b. With tank parallel to wall,
alternately tighten nuts until tank
is snugged down evenly against
bowl surface.
INSTALL TANK
a. Install large rubber gasket
over threaded outlet on bottom
of tank and lower tank onto bowl
so that tapered end of gasket fits
evenly into bowl water inlet
opening.
b. Insert tank mounting bolts
and rubber washers from inside
tank, through mounting holes,
and secure with metal washers
and nuts.
c. With tank parallel to wall,
alternately tighten nuts until tank
is snugged down evenly against
bowl surface.
INSTALL TOILET SEAT Install toilet seat in accordance with manufacturer's directions.
CLOSET FLANGE
CLOSET BOLT
CLOSET
BOLT
NUT
NUT
WASHER
TAPERED
WASHER
BOLT CAP
RUBBER
GASKET
TANK MTG.
BOLTS
NUT
WASHER
FLANGE
!
!
- 2 -
CAUTION:
DO NOT OVERTIGHTEN NUTS MORE
THAN REQUIRED FOR A SNUG FIT!
!
CAUTION:
DO NOT OVERTIGHTEN NUTS MORE
THAN REQUIRED FOR A SNUG FIT!
For Tanks/Bowls using Speed
Connect System (Tank
mounting bolts pre-installed). For all other Tanks/Bowls
RUBBER
WASHER
7 3 0 2 3 7 - 1 0 0 R E V . Q
