Model AV1-N4X

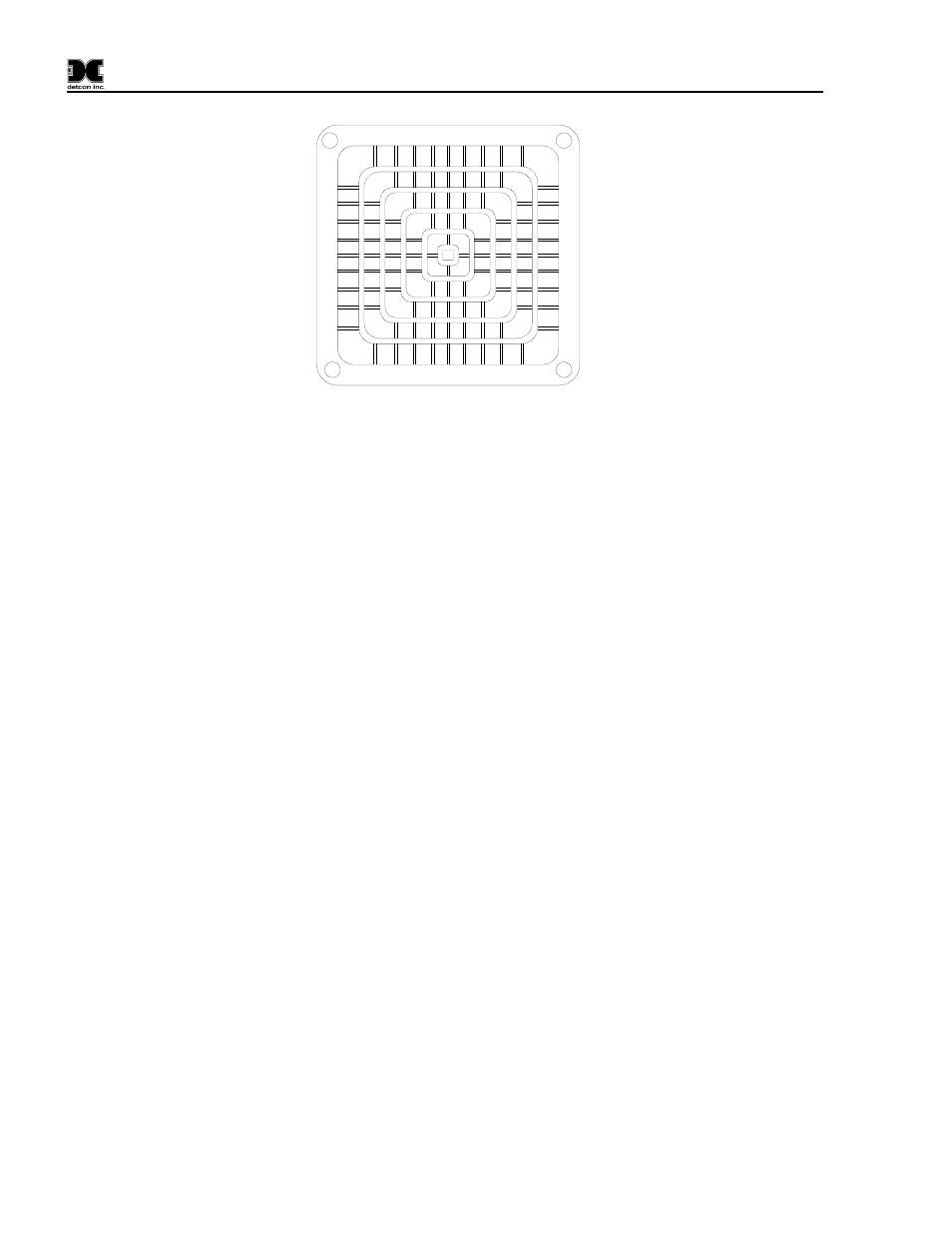

3.2 Horn
Specifications:
Voltage:
12VDC, 24VDC, 50/60HZ,
120VAC 50/60HZ,
240VAC 50/60HZ,
(See specifications label for voltage rating)
Mount: Surface / Panel
Operating Current: 0.50 Amps at 12VDC,
0.25 Amps at 24VDC,
0.18 Amps at 120VAC,
0.09 Amps at 240VAC
Temperature Rating: -65°F to +150°F
Sound Output:
99db @ 10 feet,
109dB @ 1 meter
Enclosure Rating: Type 4
Approvals: UL Listed, CSA certified, FM Approved
Height: 4 in.
Width: 4 in.
Depth: 2.5 in
Warranty: 1 Year
4.0 Troubleshooting
Tools Required Digital volt-ohm meter
Refer to
. Figure 2 Wiring Diagram
Verify proper voltage is being applied to the strobe and siren by measuring with the digital voltmeter probes
(see specifications label located inside the enclosure to determine correct voltage).
Strobe: measure voltage from the second terminal on the terminal strip to the third terminal.
Siren: measure voltage from the second terminal on the terminal strip to the fourth terminal.
If power is being provided and the corresponding strobe or siren does not activate, return the alarm station for
repair or replacement as discussed in section 6.0 (
) of this manual or replace damaged components as
referred to in section 5.0 (Spare Parts List).
Warranty
AV1-N4X Instruction Manual Rev. 1.1 Page 4 of 6
