AV1/AV2-C1D2M
Operating Temperature Maximum 150°F
Flash Rate/Minute 80
Effective Candle Power 165
Enclosure Rating Type 4X, IP66
Height 8.75in
Diameter 5.5in.
1.2 Siren

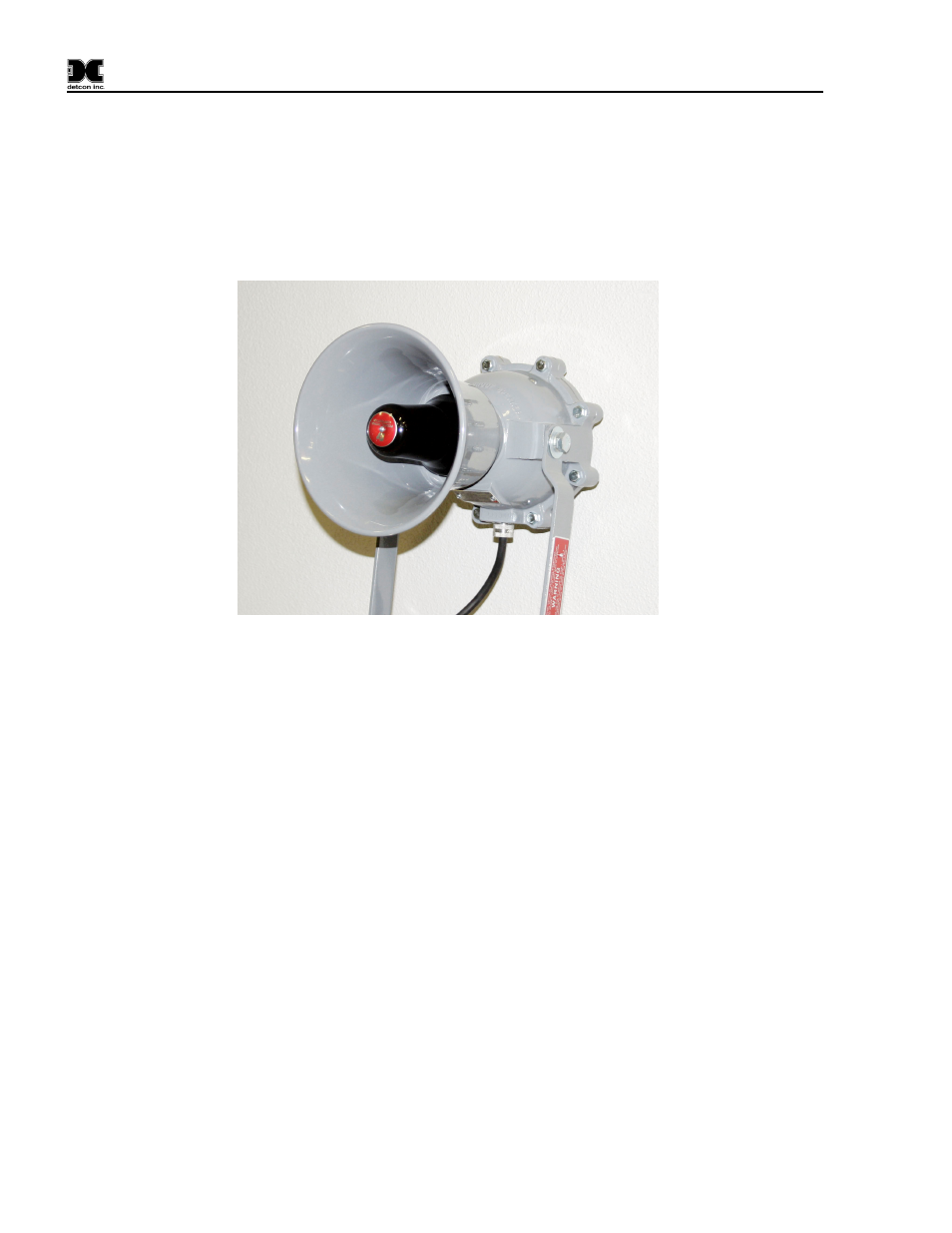

Figure 2 SSTX-MV Siren
The alarm station Explosion Proof Power Alarm® siren is a rain-tight solid-state audible alarm that features
four field selectable sounds: Wail, Yelp, Horn, and Temporal Slow Whoop.
The siren is weatherproof constructed with a cast aluminum housing and spun Aluminum horn. It produces a
noise level of a 98dbA @ 10 feet in a wide angle sound dispersion pattern.
The explosion proof power alarm siren is available in voltage ratings of 24VDC, 120VAC or 240VAC @
50/60Hz. and mounts on a unidirectional mounting bracket with ½” conduit access. UL listed for Class I,
Groups B, C and D
Specifications
Voltage 24VDC, 120 VAC 50/60 HZ, 240 VAC 50/60 HZ
Mount Omni Directional Mounting Bracket
Operating Current 0.6Amps at 24 VDC
0.21Amps at120 VAC
0.12Amps at 240 VAC
Temperature Rating -35°C to +72°C; -31°F to +161°F
Sound Output DB (A) @ 10’ on Axis
Wail 108
Yelp
Horn 108
102
Temporal Slow Whoop 102
Enclosure Rating Type3R, IP44
AV1/AV2-C1D2M Instruction Manual Rev. 2.1 Page 2 of 8
