1.5 SPARE PARTS
Part# Description
2840 Power switch
2842 Power indicator lamp
2841 Flow fualt indicator lamp
5151-02 Flow fault circuit assembly
3518 24 VDC pump
3489 1000 ml/m flow meter with valve
3606-SD1/SD2 117VAC to 24VDC power supply assembly
8236
Moisture filter pot
1.6 WARRANTY
Detcon Inc., as manufacturer, warrants under intended normal use each new Model 971-04117-0LA gas
detection system to be free from defects in material and workmanship for a period of one year from the
date of shipment to the original purchaser. Sensor assembly warranties are explained in their respective
instruction manuals. All warranties and service policies are FOB the Detcon Inc. facility located in The
Woodlands, Texas.
Detcon Model 972-041170-00L Gas Detection System PG.6
6" of
vent
tube
0
100
200
300
400
500
CAL PORT
SET
FLOW
SAMPLE
PORT
detcon inc.
HOUSTON, TEXAS

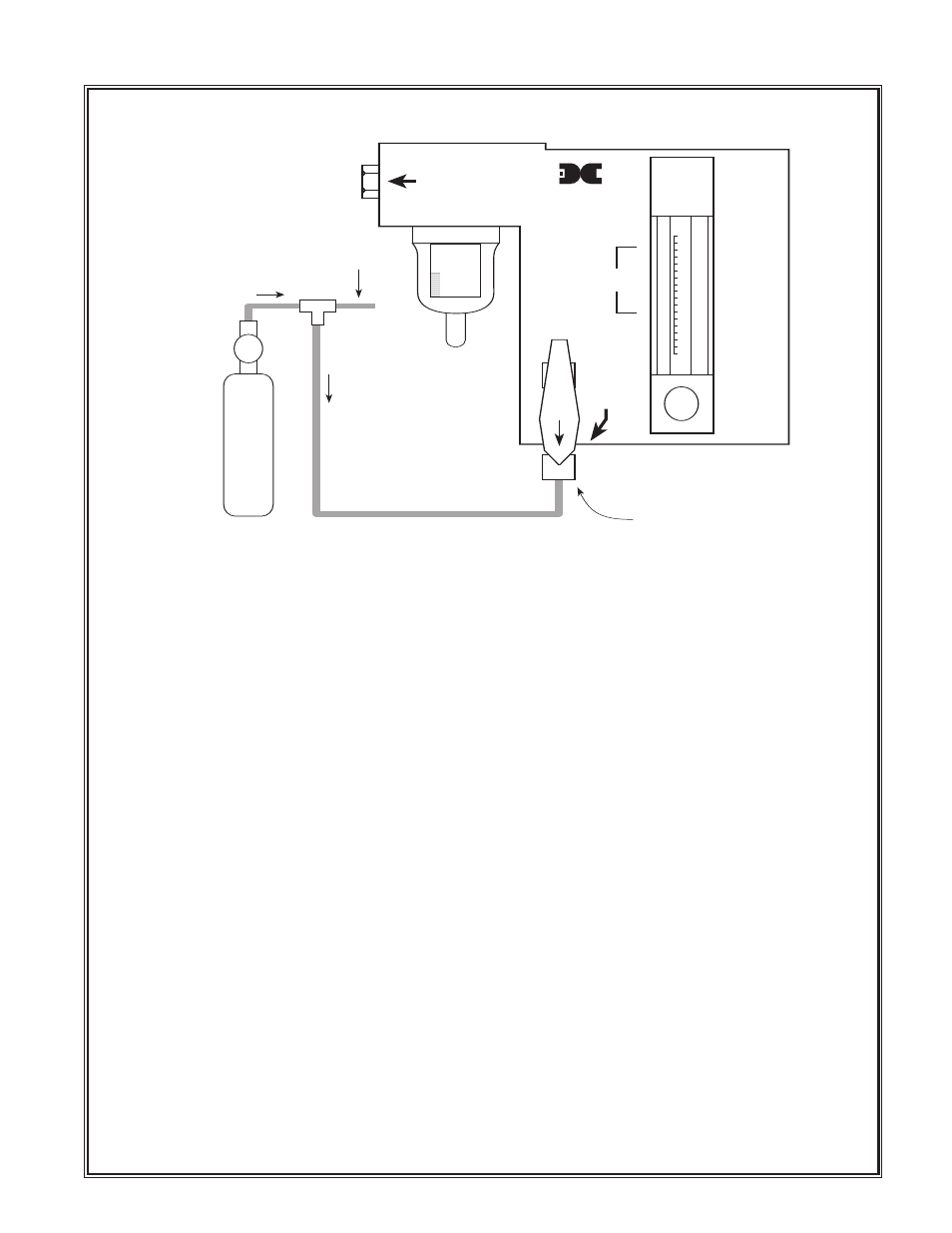

SAMPLE DRAW
GAS DETECTION SYSTEM
Calibration
Port
Fixed flow
regulator
Span gas
cylinder
Teflon
tubing
1/4"
Tee
500 ml/m
1000
ml/m
