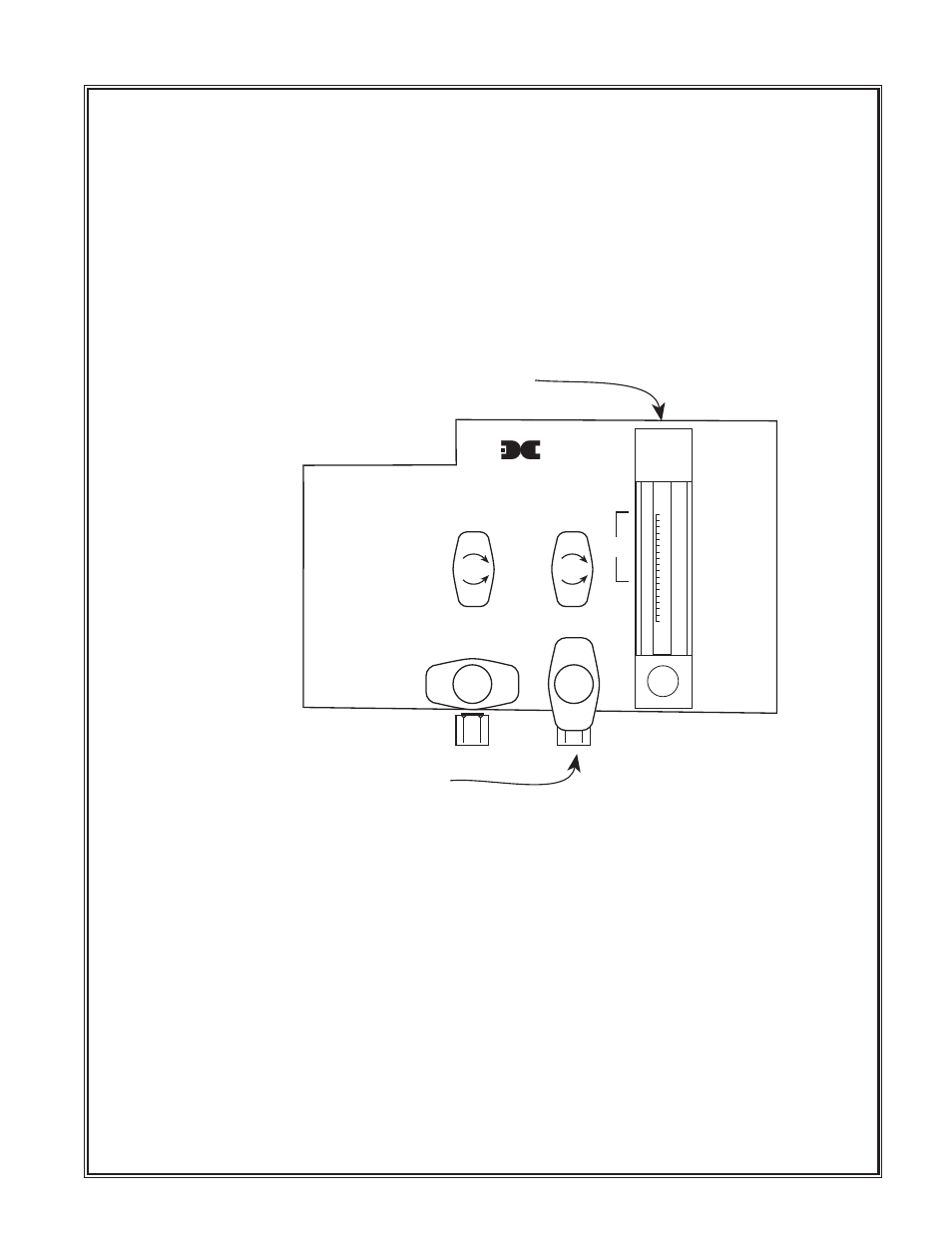

2. Install a length of tubing from the desired sample point to the sample port as shown below. Sample draw tubing should be
teflon 1/8 or 1/4" OD. Sample flow rates are set between 500 and 1000 ml/m.
CAUTION:
When detecting for NH3, CL2, CLO2, HF, or HCL care must be taken to avoid use of stainless steel tubing and
connections because stainless steel readily adsorbs these gases and will cause significant error in the detection process. Teflon
tubing is recommended for these applications.
3. Install a length of tubing from the vent port to an area deemed safe for vent as shown above.
Detcon Model 971-041170-00K Gas Detection System PG.3
Sample Port
0
100
200
300
400
500
detcon inc.
HOUSTON, TEXAS
SAMPLE DRAW
GAS DETECTION SYSTEM
VENT
SET
FLOW
CAL
IN
CL
OSE
O P E N
SAMPLE
VALVE
CL
OSE
O P E N
Vent Port
