240 Operators Manual

Model 240 Operator Manual

Rev. 1.8

Page 23 of 29

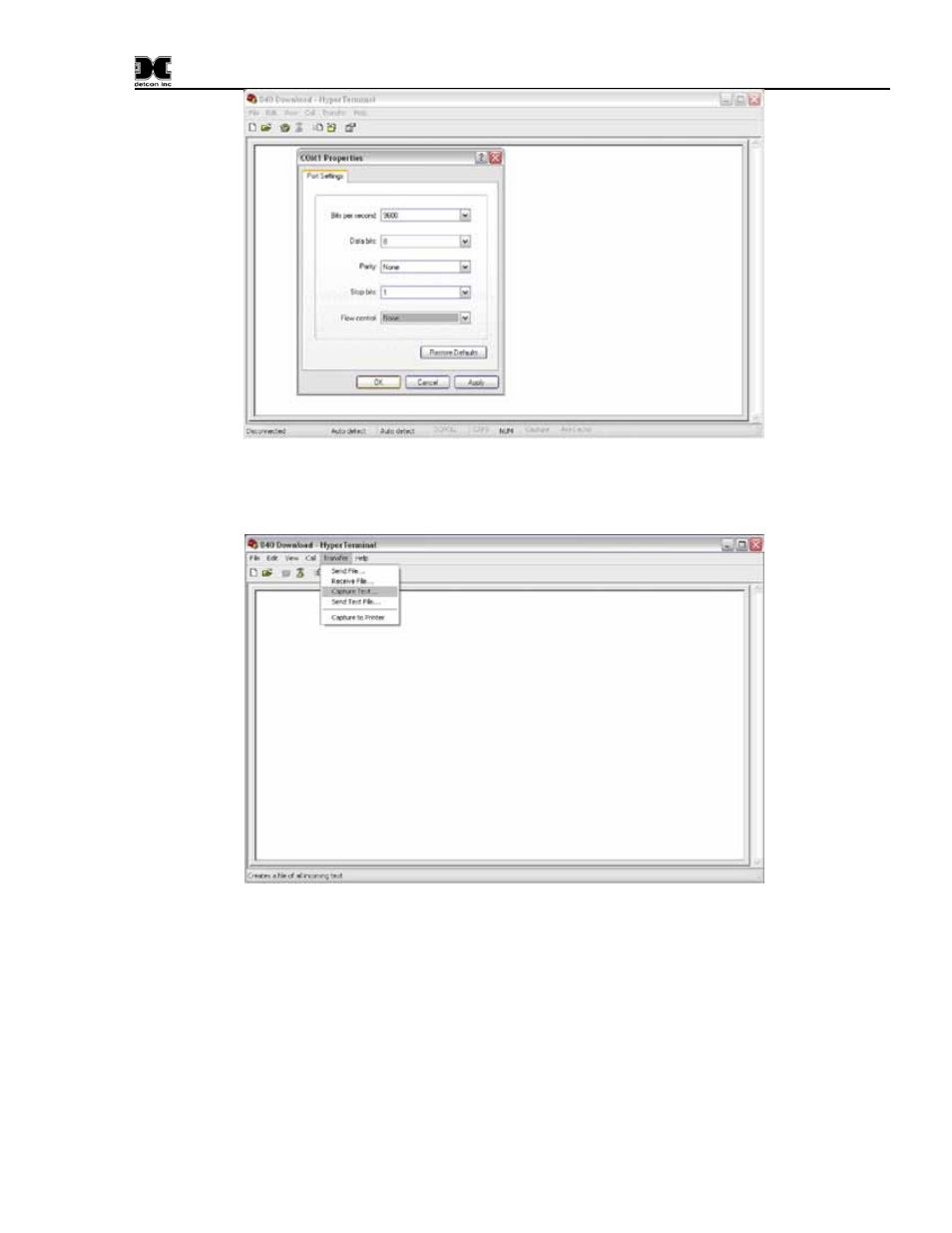

Figure 14 Communications port properties

From the main menu Select: Transfer> Capture Text.

Figure 15 Setting up capture

Select a Name and location where the downloaded data is to be saved, and click “Start”. The file will be
saved as a text file and the file extension of *.txt should be used.
