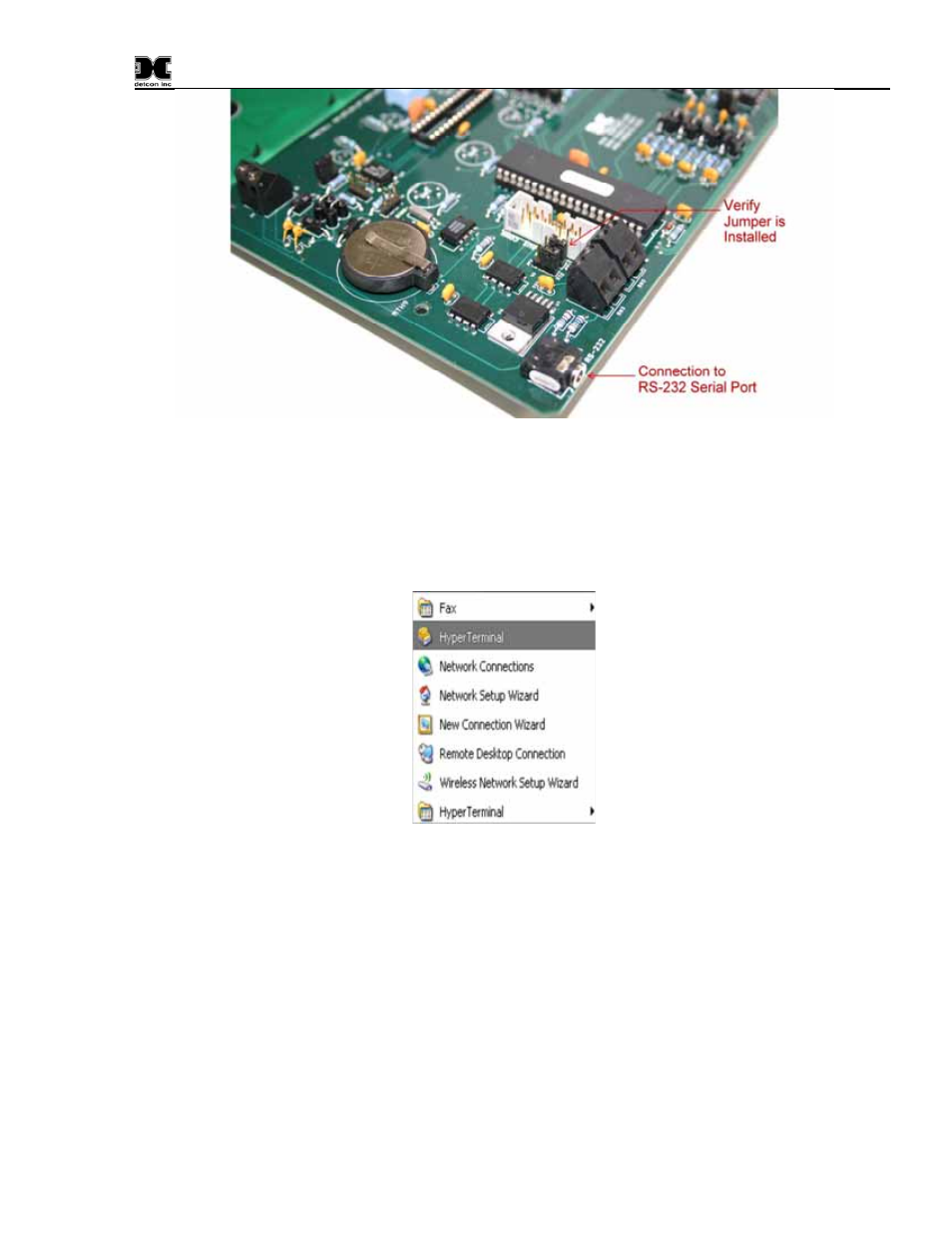

Figure 10 Serial connection and jumper locations
Make the connection from the Model X40 controller to your PC (COM1) using the supplied cable. The
controller’s 1/8” jack connection is located on the bottom of the PCB.
From the Start menu, select Programs> Accessories> Communications> Hyper Terminal.
Figure 11 Invoking Hyper Terminal
Hyper Terminal will open with the following Connection Description Dialog box. Type “X40 Download”
as the name for the connection and click ‘OK’.
