SW-AV1-N4

SW-AV1-N4 I.M.

Rev.0.0

Page 4 of 8

2.0 Installation

NOTE: The wireless alarm station is a precision instrument and care should be taken when handling it.

1. The location for mounting the wireless alarm station should be carefully selected. Occasional access

to the unit will be necessary for battery replacement and maintenance. Mount the unit securely on a
wall or flat vertical surface using the provided mounting holes (hardware not provided).

12.75"

13.75"

33.25"

6.8"

11.4"

11.85"

Ø0.312"

Mounting

Holes

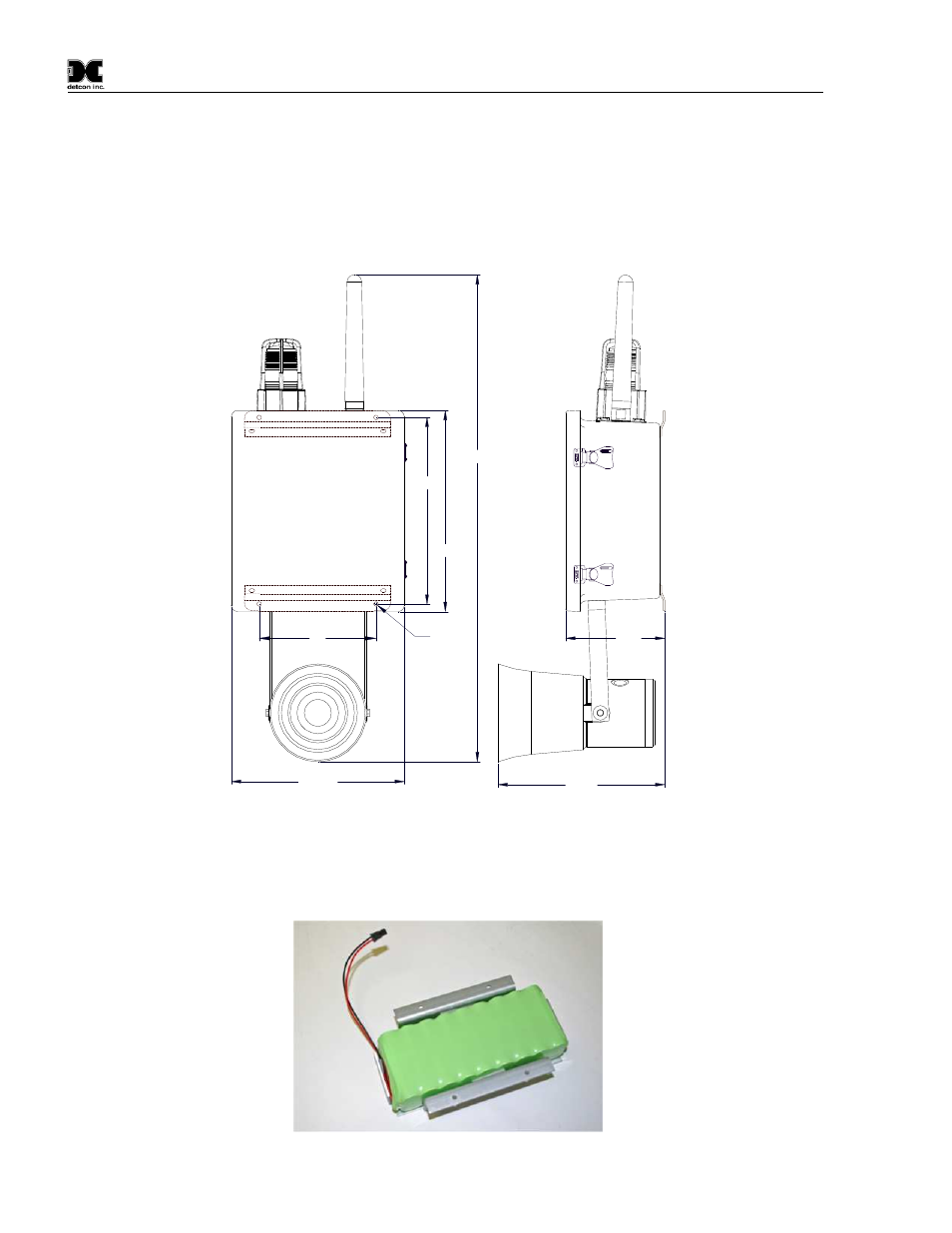

Figure 6 Dimensional

2. The Battery pack for the unit is shipped separately, and should be installed before AC power is

applied. Unpack the battery pack and inspect it to ensure that there is no physical damage to the pack.
Locate the battery bracket and remove the bracket (remove the four 6-32 screws).

Figure 7 Battery Pack and Bracket
