STEP 5
A. Attach the drawer back to the drawer sides with
four 1 1/4” #8 screws. Make sure parts are aligned
as in illustration 5A.
B. Insert drawer bottom into the slots in the drawer
sides, best side to inside of drawer. Slide down until
seated in the slot in the drawer back. See illustration
5B.
C. Screw the cam posts into the two outside holes on
the inside face of the drawer front until seated. Only
3/8” of the post goes into the wood, leaving the 4
larger guide rings/head exposed. See illustration 5C.
View our cam video at www.catskillcraftsmen.com.
D. Insert the posts into holes in the drawer sides until
seated against the front end of the drawer sides.
Insert cams so that slot in the cam fits over the post
and turn with Phillips screwdriver until seated. Don’t
over-torque! See illustration 5D.
E. Attach drawer handle with the two 7/8” Truss
head screws (no illustration).
F. Attach drawer glides to drawer sides using 5/8”
#5 screws. See illustration 5F

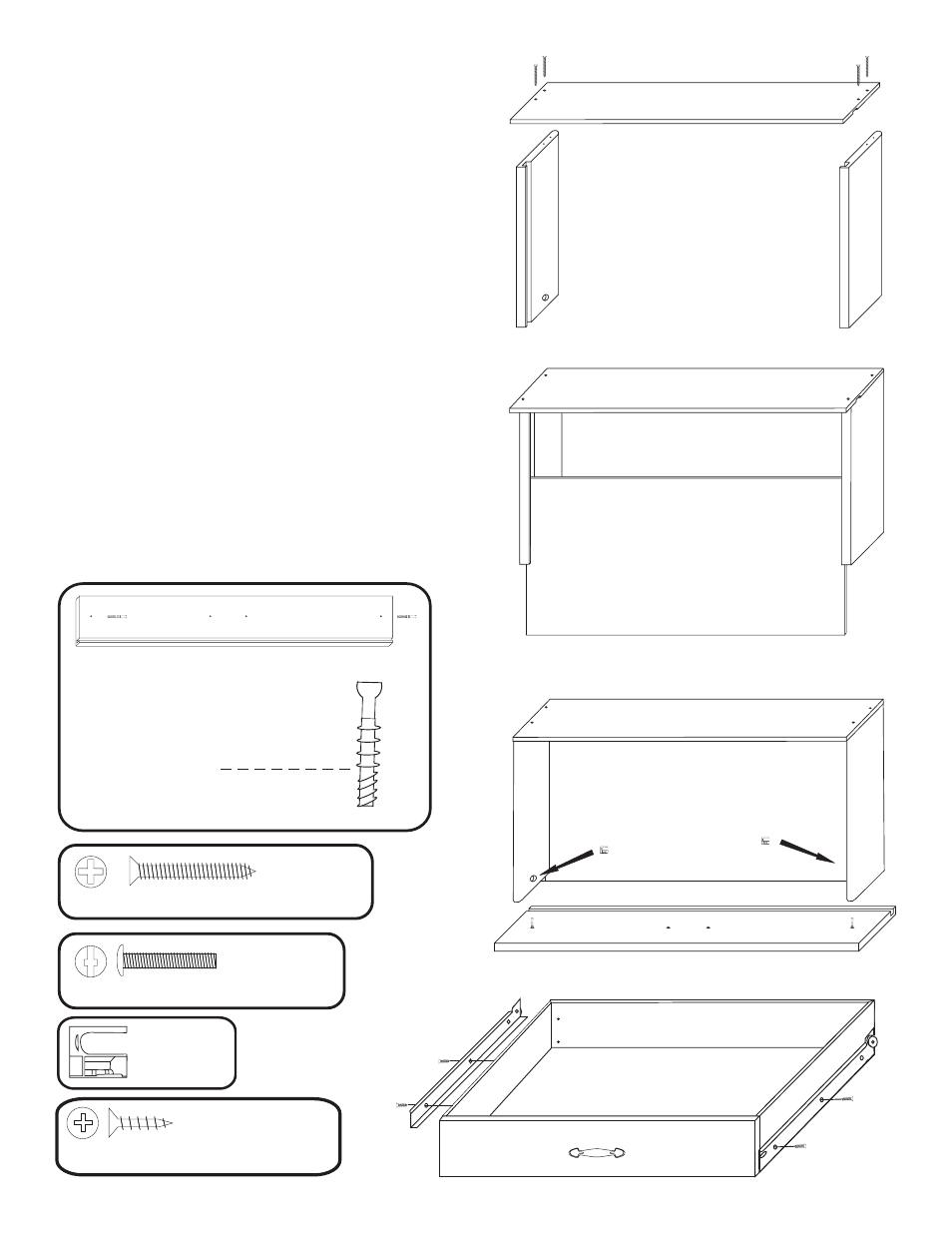

ILLUSTRATION 5A
ILLUSTRATION 5B
ILLUSTRATION 5D
ILLUSTRATION 5F
ILLUSTRATION 5C
Below line in wood
Cam Posts (2)
4 used
in this step
1 1/4” Phillips Flat Head #8 Screw
2 used
in this step
7/8” Truss Head Machine Screw
2 used
in this step
Cam
4 used
in this step
5/8” Phillips Flat Head #5 Screw
5/8” #5
5/8” #5
