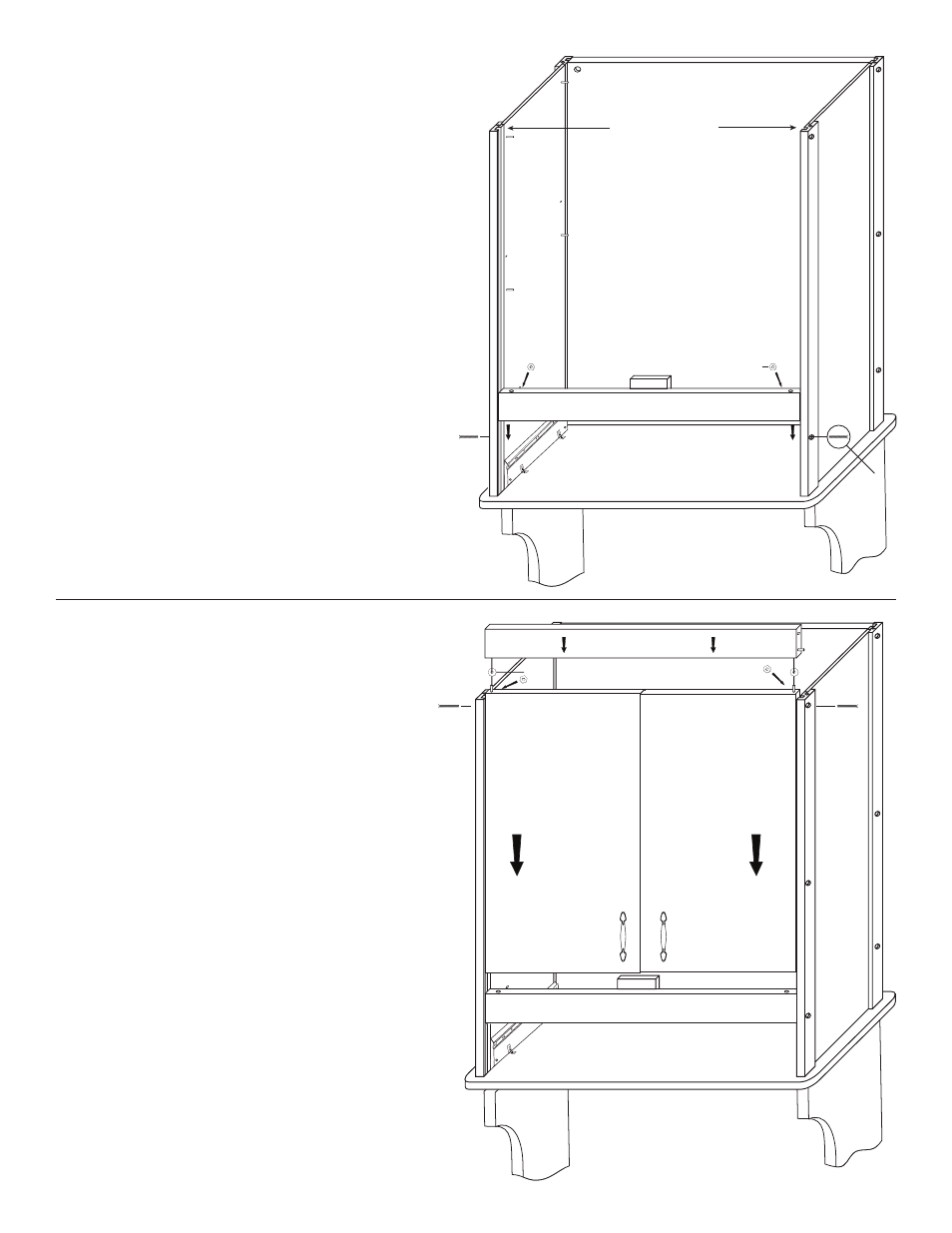

STEP 8
A. Take the top front brace (identical to
bottom front brace) holes in bottom long
edge up, insert the pins into the slots
on the inside of the front legs and slide
brace down until the holes in the brace
ends align with the holes in the front legs.
Secure brace with 1 3/4” bolts/hex nuts.
B. Take the middle front brace with magnet
block and slide brace into place making
sure magnet block and holes for door pins
are up as illustrated. Secure with 1 3/4”
bolts/hex nuts.
STEP 9
A. Insert the pins in the door tops
into the holes in the middle front
brace as in Illustration 7. Place a
washer over the pins in the door
bottoms.
B. Take the bottom front brace,
insert brace as in step 7, making
sure the pins in the doors align
with the holes in the brace as in
Illustration 8. Secure with 1 3/4”
bolts/hex nuts.
1 3/4” Bolts
Nut
Insert brace pins here
Washer
ILLUSTRATION 8
ILLUSTRATION 9
