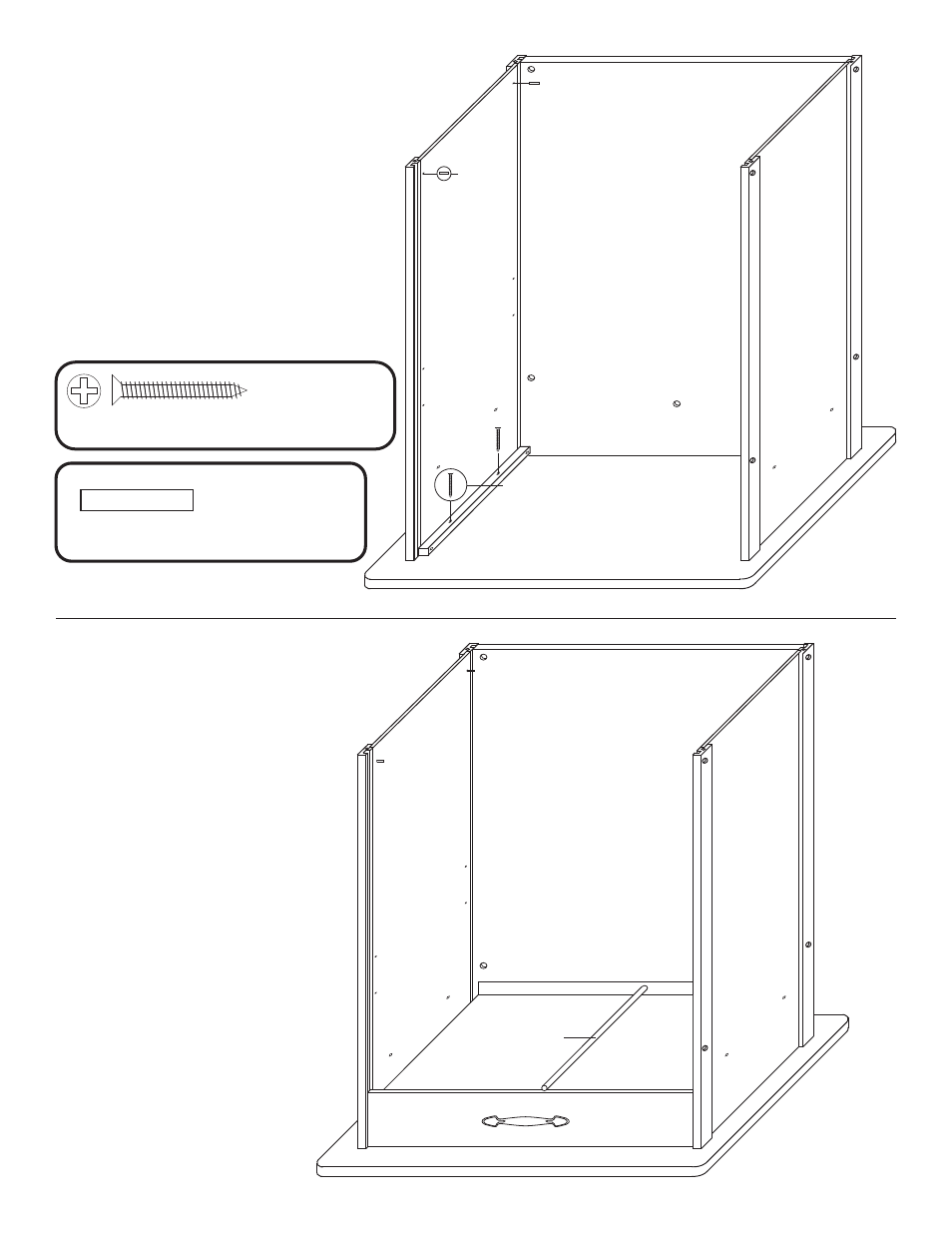

STEP 7
A. Turn the side/back assembly ( from step 5 )
upside down ( invert ) on top of the inverted
table top.
B. Drop two 1 1/4” # 8 screws into the
holes in each of the table top sticks.
C. Using the ( X ) marks from step 6 as
a guide, insert the tips of the screws into
the pilot holes in the unit top and finger
tighten. When all 4 screws are properly
aligned, tighten down.
D. Tap two 1” pins into each side panel.
These pins will hold the bottom shelf.
See illustration7
4 Used in this step
1” Long 3/16” DIA. Steel Pin (8)
ILLUSTRATION 7
STEP 8
ILLUSTRATION 8
1 1/4” Phillips Flat Head #8 Screw (27)
4 Used in this step
A. Take Drawer, insert the Drawer
Dowel thru the hole in the Drawer
Back, invert Drawer and place in
cabinet cavity. Insert/turn Drawer
Dowel into the 1/2’ dia. hole in the
back panel.
TT
P2
P1
P1
D1
D6
1” Pin
1 1/4” #8 Screw
