STEP 3

A. Attach the drawer back to the drawer sides with

four 1 1/4 #8 screws. Make sure parts are aligned

as in illustration 3A.

B. Insert drawer bottom into the slots in the drawer

sides, best side to inside of drawer. Slide down

until seated in the slot in the drawer back.

See illustration 3B.

C. Screw the cam posts into the two outside holes

on the inside face of the drawer front until seated.

Only 3/8 of this post goes into the wood, leaving

the 4 guide rings/head exposed. See illustration 3C.

D. Insert the posts into holes in the drawer side

until seated against the front ends of the drawer

sides. Insert cams so that slot in the cam fits over

the post and turn with Phillips screwdriver until

seated. Dont over-torque! See illustration 3D.

E. Attach drawer handle with the two 3/4 Truss

Head Machine screws ( no illustration ).

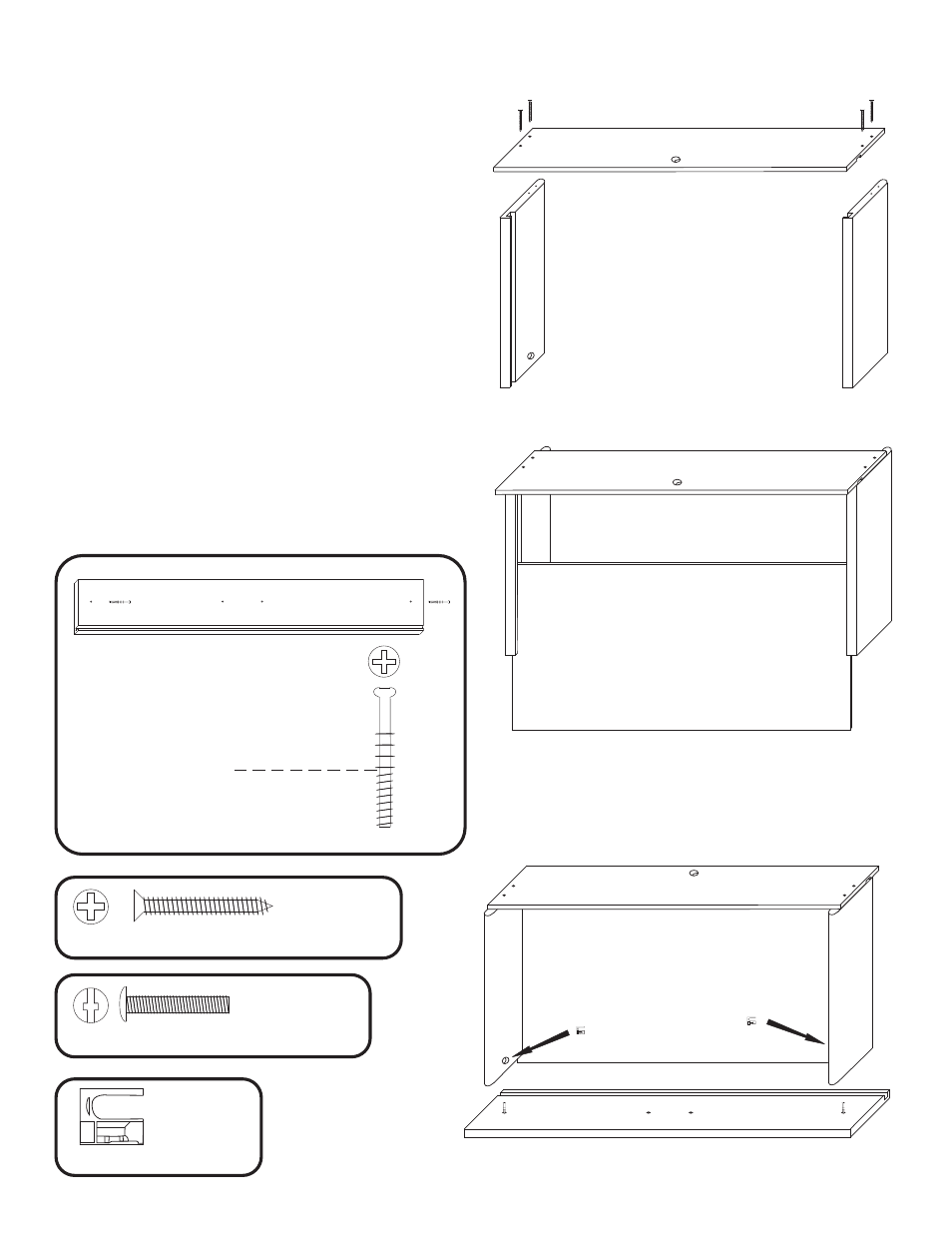

ILLUSTRATION 3A

Below line in wood

Cam Posts (2)

ILLUSTRATION 3C

ILLUSTRATION 3B

ILLUSTRATION 3D

Cam (2)

2 used

in this step

3/4 Truss Head Machine Screw (2)

2 used

in this step

1 1/4 Phillips Flat Head #8 Screw (27)

4 used

in this step
