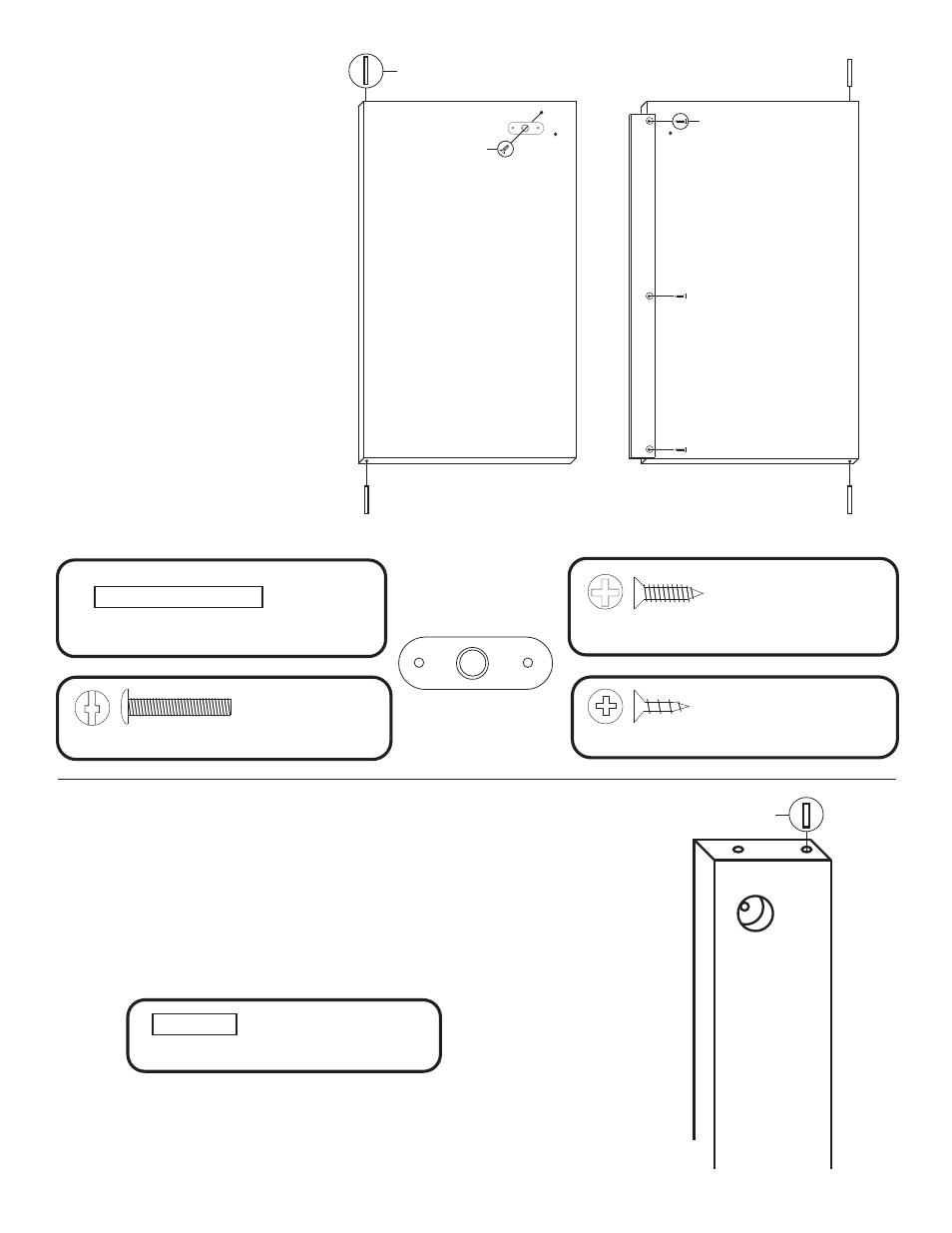

STEP 1
A. Tap/insert ONE 1 1/2” pin
into each end of both doors.
DON”T OVERDRIVE PINS!
pins should stick up about
1/2” when seated.
B. Attach the doorspacer to
the left door with 5/8” #8
screws. The spacer has a
space at the top to allow
magnet clearance and is
almost flush with the bottom
of the door.
C. Attach the magnet plate
(may be stuck to magnet!)
with the small flat head screw
to the top of the right door.
Bumps toward wood.
D. Attach door knobs with two
1 1/4” truss head machine
screws.
1 1/2” Long 3/16” DIA. Steel Pin (4)
4 used in
this step
5/8” Phillips Flat Head #8 Screw (3)
3 used in this step
Magnet Plate (1)
1 1/4” Truss Head Machine Screw (2)
2 used
in this step
1/2” Phillips Flat Head #4 Screw (1)
1 used in this step
ILLUSTRATION 1
STEP 2
3/4” Long 3/16” DIA. Steel Pin (4)
4 used in this step
Take the 2 front braces and tap/insert one 3/4” steel pin
into each end of both braces until seated. About 3/8”
will stick out when seated. Ok if loose.
ILLUSTRATION 2
DR DL
1/2” #4 Screw
5/8” #8 Screw
1 1/2” Pin
3/4” Pin
