STEP 4

A. Tap/insert ONE 1 1/2 pin into each end of the door. DONT OVERDRIVE PINS! Pins should stick

up about 1/2 when seated.

B. Attach the magnet plate (may be stuck to magnet in the hardware pack!) with the 1/2 #4 screw

to the top of the door. Bumps go toward the wood, and the plate should be vertical.

C. Attach door handle with 1 truss head machine screws.

Washers may be necessary to ensure a snug

fit.

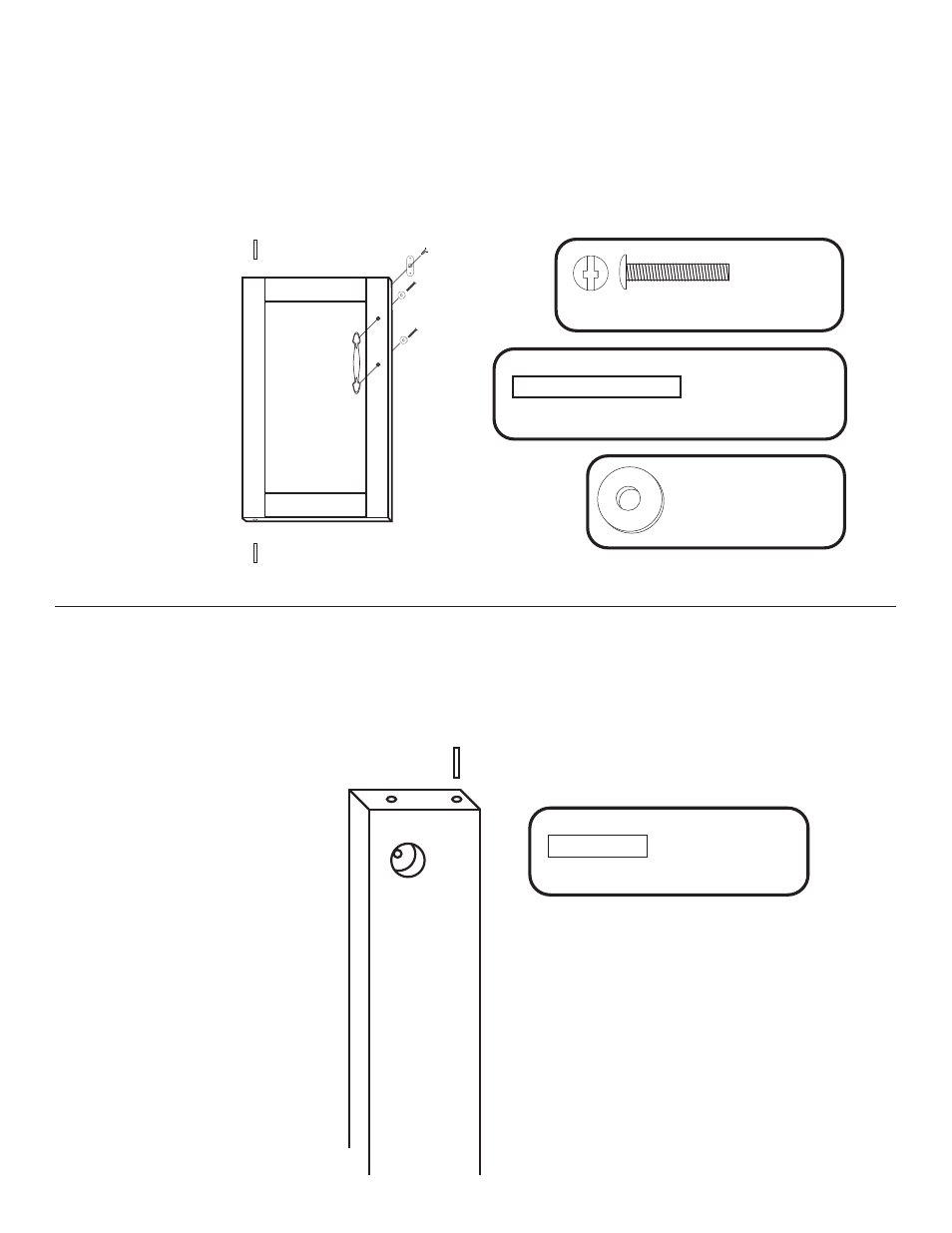

ILLUSTRATION 4

STEP 5

A. Take the 2 front braces and tap/insert one 3/4 steel pin into each end of both braces until

seated. About 3/8 will stick out when seated. OK if loose.

ILLUSTRATION 5

1 Truss Head Machine Screw

2 Used

in this step

2 Used

in this step

1 1/2 Long 3/16 DIA. Steel Pin

4 Used

in this step

3/4 Long 3/16 DIA. Steel Pin

3/16 Flat Washer

2 Used

in this step
