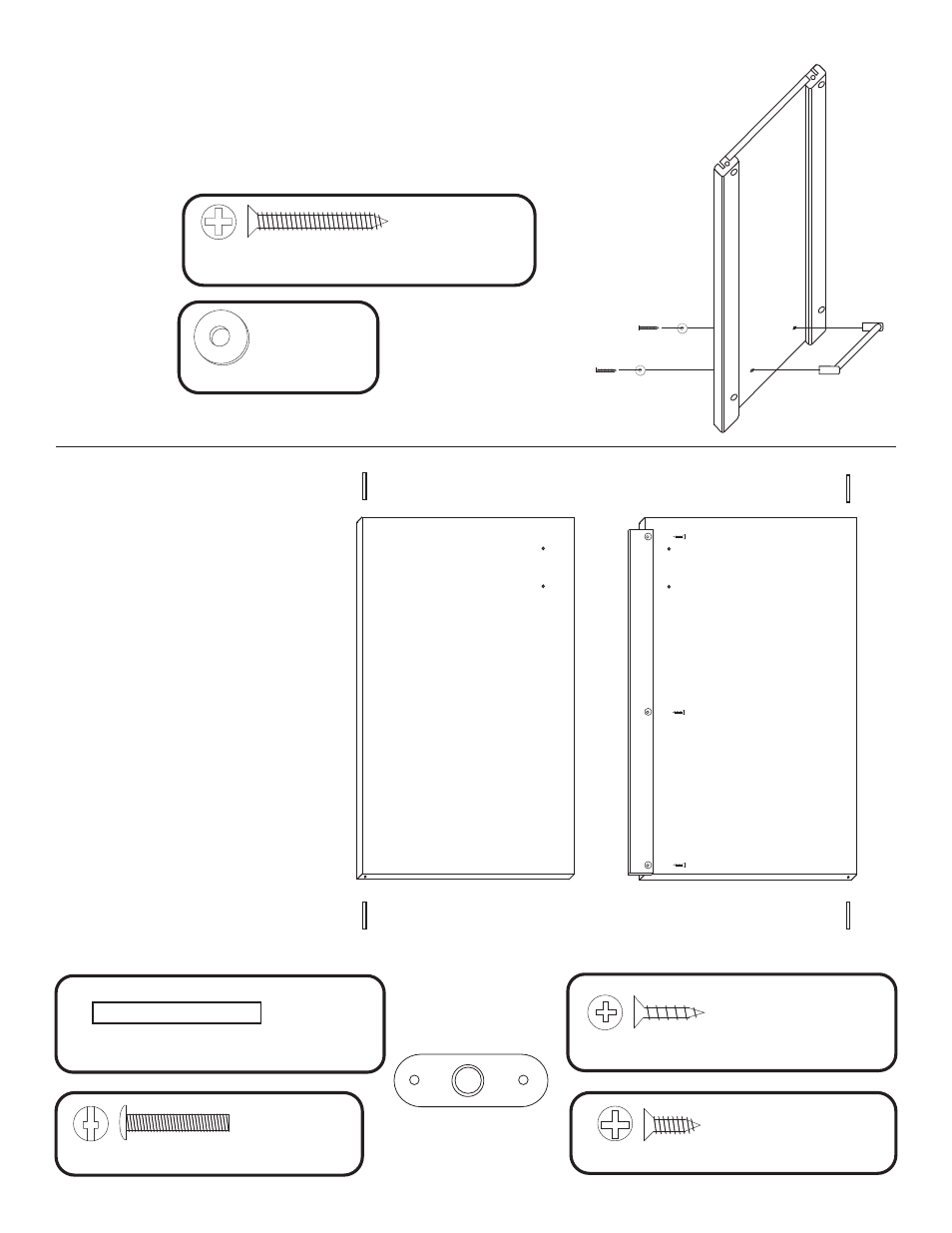

STEP 10
Attach handle/towel bar to side panel with 1 1/4” #8 screws from inside side panel.
1 1/4” Phillips Flat Head #8 Screw (12)
2 Used in this step
STEP 11
A. Tap/insert ONE 1 1/2” pin
into each end of both doors.
DON”T OVERDRIVE PINS!
pins should stick up about
1/2” when seated.
B. Attach the doorspace to
the left door with 5/8” #8
screws. The spacer has a
space at the top to allow
magnet clearance and is
almost flush with the bottom
of the door.
C. Attach the magnet plate (
may be stuck to magnet! )
with the small flat head
screw to the top of the right
door.
D. Attach door handles with
1” truss head machine
screws.
1 1/2” Long 3/16” DIA. Steel Pin (4)
4 used in
this step
5/8” Phillips Flat Head #8 Screw (23)
3 used in this step
ILLUSTRATION 10
Magnet Plate (1)
1” Truss Head Machine Screw (6)
2 used
in this step
1/2” Phillips Flat Head #4 Screw (1)
2 used in this step
ILLUSTRATION 11
2 Used
in this step
3/16” Flat Washer (2)
NOTE: Put washers in between the screws and the Side Panel so the
screws don’t pull through the Side Panel.
