STEP 4

Invert table top on a smooth flat surface and

make a large (X) mark over each of the pilot

holes in the bottom. Make marks about

1 1/2” long. These marks will help you align

the cabinet with the pilot holes in step 5.

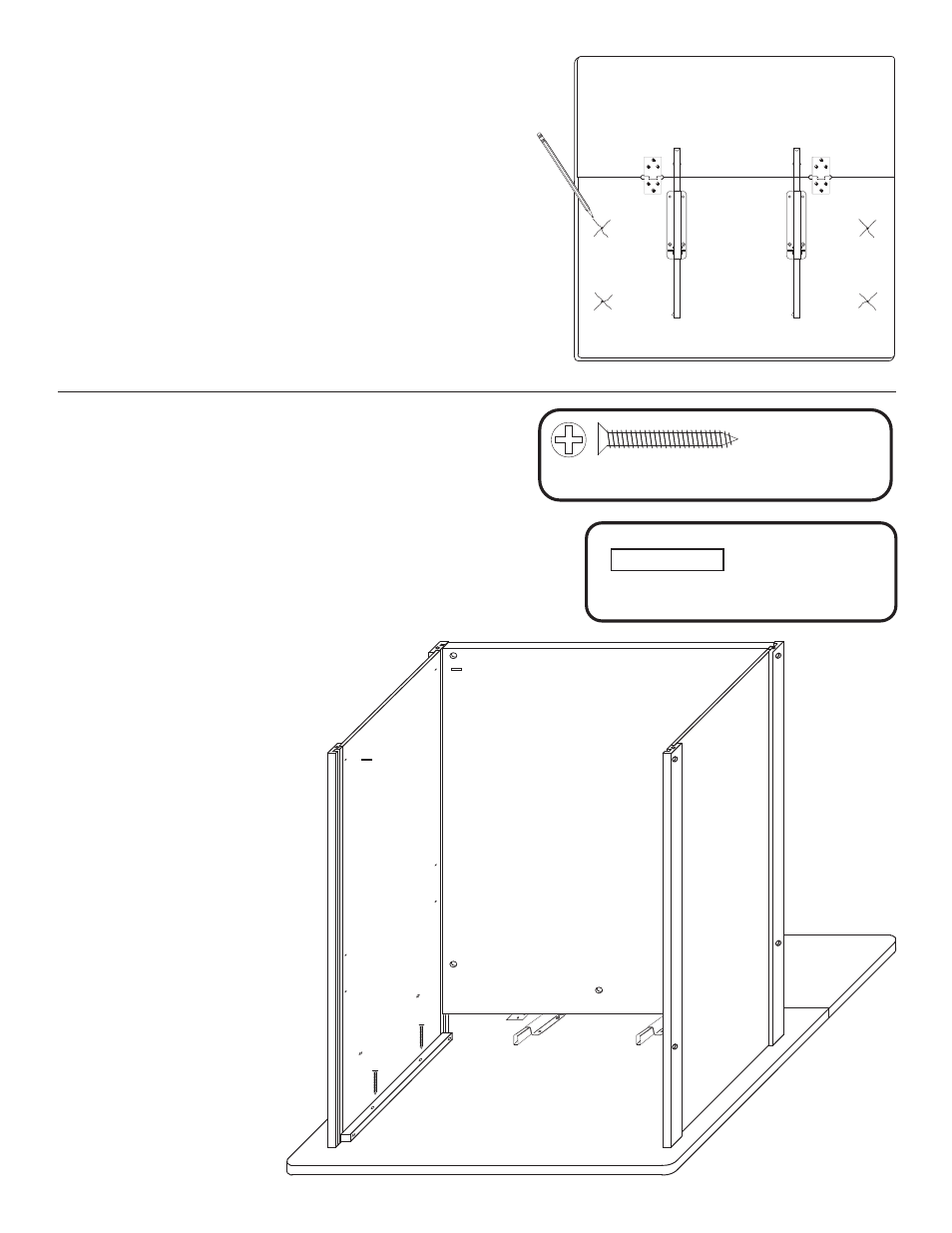

ILLUSTRATION 4

STEP 5

A. Turn the side/back assembly ( from step 2 )

upside down ( invert ) on top of the inverted table top.

B. Drop two 1 1/4” # 8 screws into the holes in

each of the table top sticks.

C. Using the (+) marks from step 4 as a guide,

insert the tips of the screws into the pilot

holes in the unit top and finger tighten.

When all 4 screws are properly aligned,

tighten down.

D. Tap two 1” pins into each side panel.

These pins will hold the bottom shelf.

See illustration5

1 1/4” Phillips Flat Head #8 Screw (12)

4 Used in this step

1” Long 3/16” DIA. Steel Pin (8)

ILLUSTRATION 5
