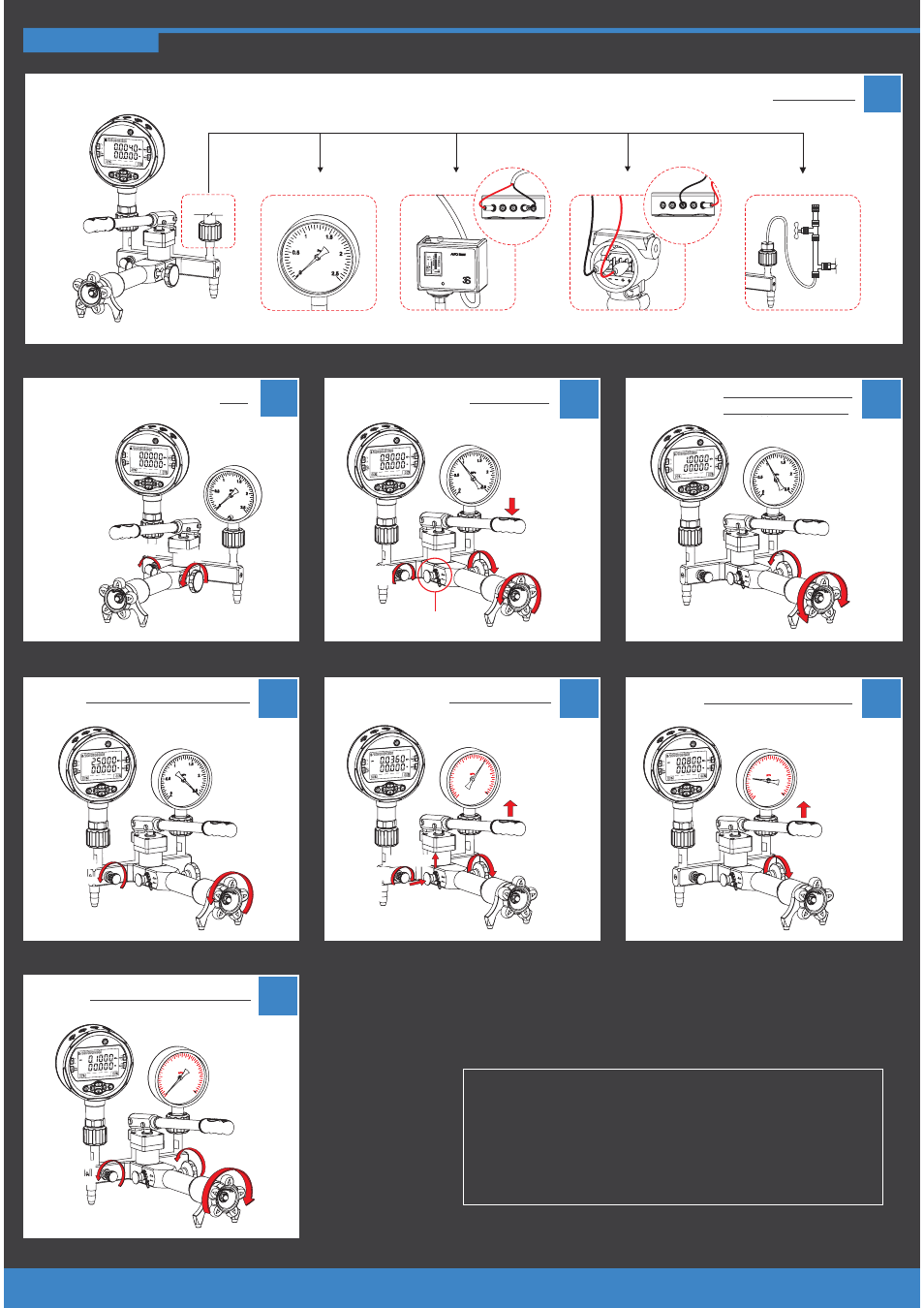

A Connection
Basic Operation
B Vent C Pre-pressure D
Pressurizing process
and fine adjustment
Remark:
A Additel has made a concerted effort to provide complete and current
information for the proper use of the equipment. The product
specifications and other information contained this manual are subject
to change without notice.
B
:
: Above pictures are just for reference.
SW V mA COM 24V SW V mA COM 24V SW V mA COM 24V
dial gauge pressure switch pressure transmitter flexible hose
k
Pressure Gauge Pressure Gauge
DIGITAL PRESSURE CALIBRATOR
Units
A
0 25 50 75 100
Pressure Gauge
DIGITAL PRESSURE CALIBRATOR
Units
A
0 25 50 75 100
open
open
Zeroing should
be operated
under this
condition only
.
①
push the security bolt pin in
② set it to the
mid position
of its travel
③ open
⑤ push down to
pre pressurize to
desired value or
until pressurization
stops
-
DIGITAL PRESSURE CALIBRATOR
Units
A
0 25 50 75 100 Pressure Gauge Pressure Gauge
④ close, do not
use too much
force
DIGITAL PRESSURE CALIBRATOR
Units
A
0 25 50 75 100 Pressure Gauge Pressure Gauge
② pressurize to
higher pressure
by turning the
handle and
make fine
adjustment
① close, do not use
too much force
E Decrease pressure process
fine adjust
Pressure Gauge Pressure Gauge
DIGITAL PRESSURE CALIBRATOR
Units
A
0 25 50 75 100
② ① open it slowly
to get the
desiredvalue,
and close!
F Vacuum process
⑤
operate it to
get the desired
value
0
0.02
0.04 0.06
0 8 .0 0 8 .0
- 0.1
Vacuum Gauge
Units
0 25 50 75 100
A
DIGITAL PRESSURE CALIBRATOR
① open ② pull out
③
push in,select
the vacuum
position
④ close（
）
but it
must be open
when select
the pressure /
vacuum
G Repeat Vacuum process
②
operate it to
get the desired
value
① open
0
0.02 0.02
0.04 0.06
0 8 .0 0 8 .0
- 0.1
Vacuum Gauge Vacuum Gauge
Units
0 25 50 75 100
A
DIGITAL PRESSURE CALIBRATOR
H Decrease vacuum process
Units
0 25 50 75 100
A
DIGITAL PRESSURE CALIBRATOR
0
0.02
0.04 0.06
0 8 .0 0 8 .0
- 0.1
Vacuum Gauge
① close
③ fine adjust ②
open it slowly
to get the
desired value,
and close!
