16

Assembly and adjustments (continued)


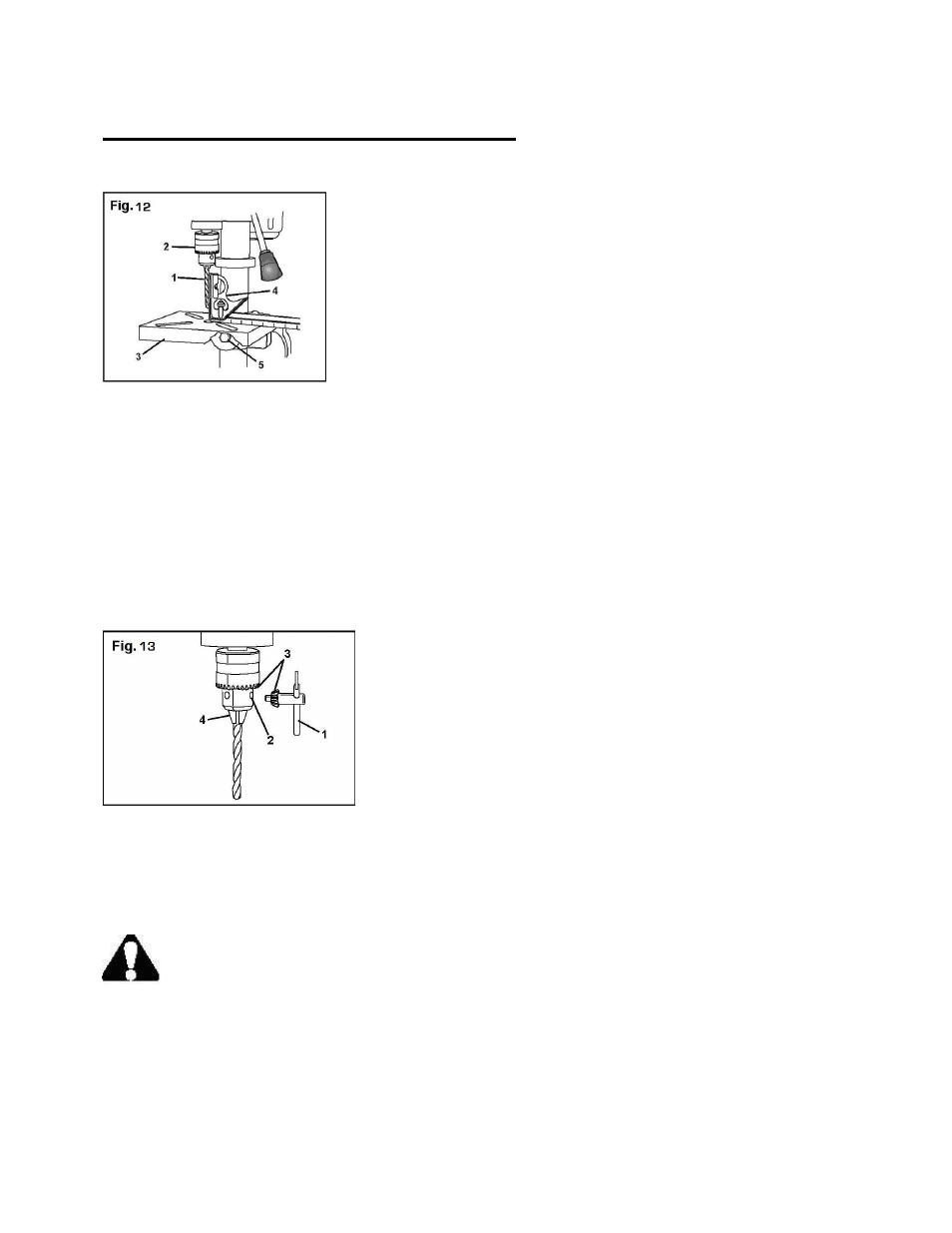

Square the table to the head

(Fig. 12)


1. Insert a 3" (7.6 cm) drill bit (1) into the chuck (2) and tighten.
2. Raise and lock the table (3) about 1" (2.5 cm) from the end of the drill bit.
3. Place a combination square (4) on the table as shown. The drill bit should be parallel to the

straight edge of the square.

4. If an adjustment is needed, loosen the bevel lock (5) with a wrench.
5. Square the table to the bit by tilting the table.
6. Tighten the bevel lock bolt (5) when square.

Install drill bits

(Fig. 13)


1. Place the chuck key (1) into the side keyhole of the chuck (2), meshing the gear teeth (3).
2. Turn the chuck key counterclockwise to open the chuck jaws (4).
3. Insert a drill bit into the chuck far enough to obtain maximum gripping of the chuck jaws.
4. Center the drill bit in the chuck jaws before final tightening of the chuck.
5. Use the chuck key for the final tightening to make sure the drill bit will not slip while drilling.

WARNING: To avoid injury, make sure the chuck key is removed from the chuck before

starting any drilling operation.
