Assembly and adjustments (continued)



Feed handles

1. Thread the three feed handle rods into the holes on the feed hub.

2. Hand tighten.

Note: One or two of the feed handles may be removed if an unusually-shaped workpiece interferes
with handle rotation.

Laser batteries


1. Turn off the laser.

2. Insert 2 "AAA" batteries in the laser battery compartment.

3. Close the laser battery cover.

CAUTION: Remove the laser light batteries when the tool is to be stored without use for a few
days or more. If left in position, the batteries might leak and damage the laser light assembly.
Damage due to leaking batteries is not covered under the warranty.

Mount the drill press

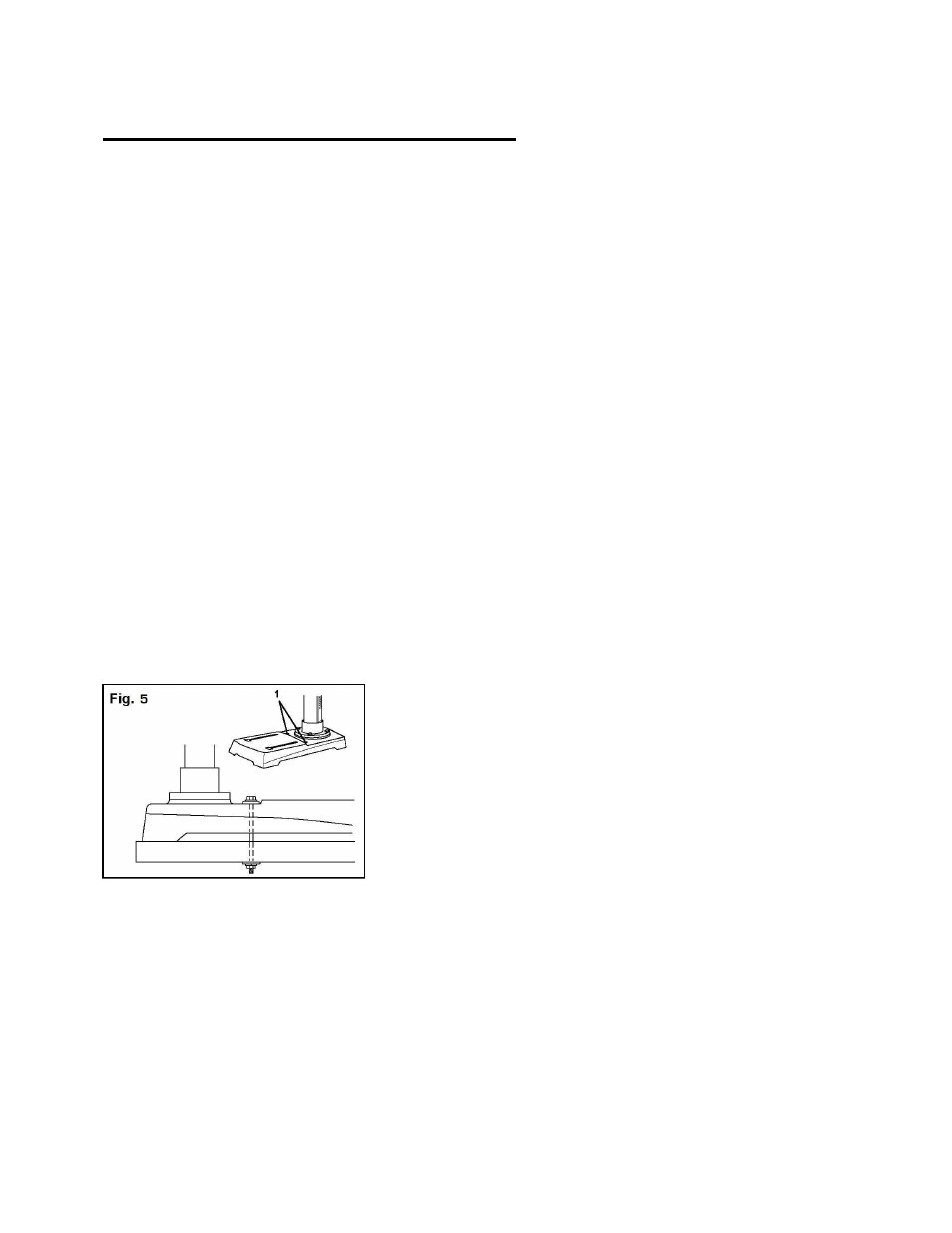

(Fig. 5)


Your drill press must be securely fastened through the mounting holes (1) to a stand or work bench
with heavy-duty fasteners. This will prevent the drill press from tipping over, sliding, or walking
during operation.

IMPORTANT: If the stand or workbench has a tendency to move during operation, fasten it
securely to the floor.
