10

Assembly and adjustments (continued)

Tools needed for assembly


• Adjustable wrench
• Hammer and block of wood

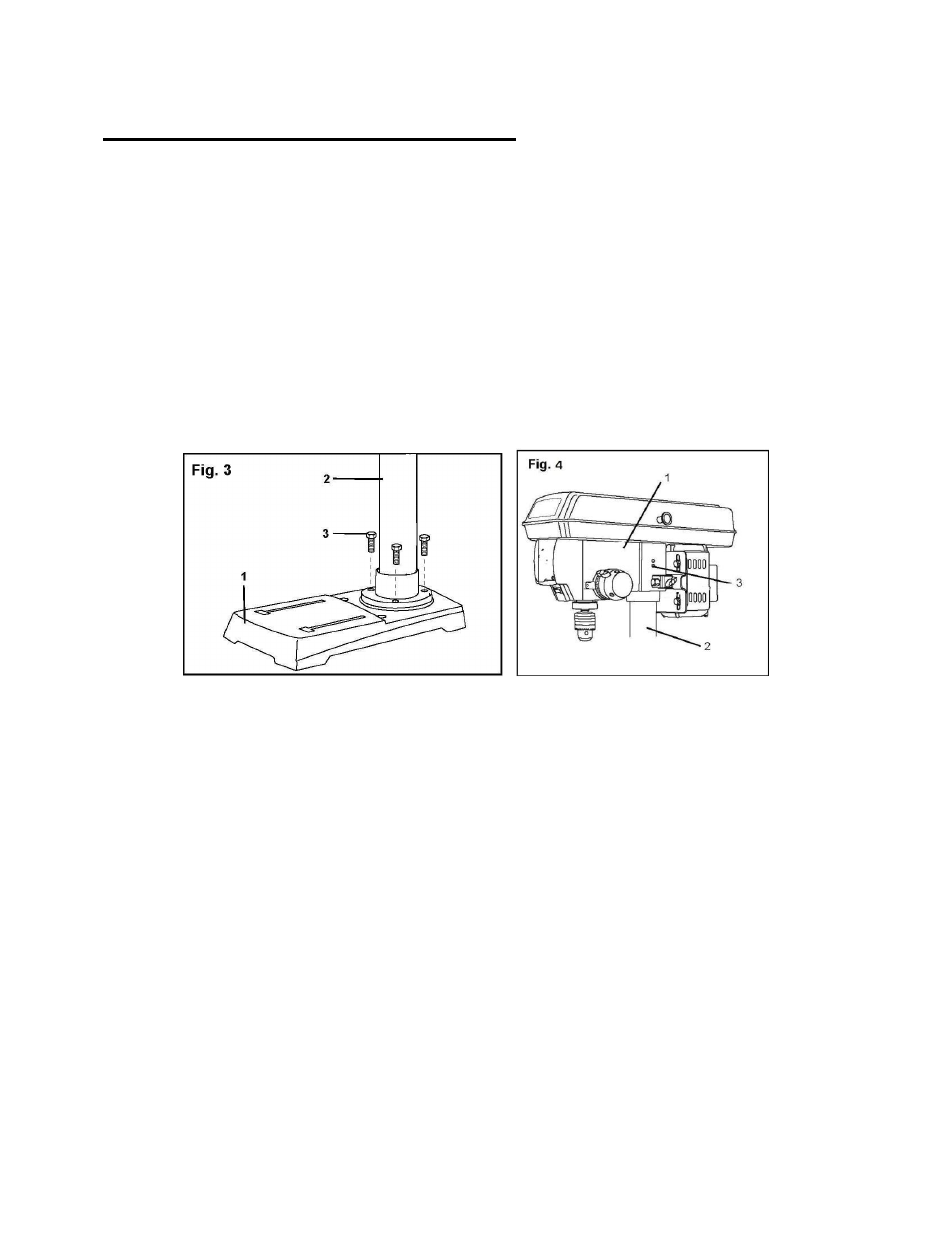

Base to column

(Fig. 3)


1. Set the base (1) on the floor.

2. Place the column tube (2) on the base (1), align the column support holes with the base holes.

3. Install a bolt (3) in each column support hole and tighten with the wrench.


Table to column


1. Slide the table down onto the column, and install the table lock handle.

2. Position the table in the same direction as the base, and tighten the column lock handle (G).

Drill press head to column

(Fig. 4)


1. Lift the drill press head assembly (1) carefully and place the mounting hole of the drill press

head onto the top of the column (2). Make sure the head is seated properly on the column.


2. Align the direction of the drill press head to the direction of the base and the table.

3. Tighten the set screw (3) using an Allen wrench.
