Operation (continued)

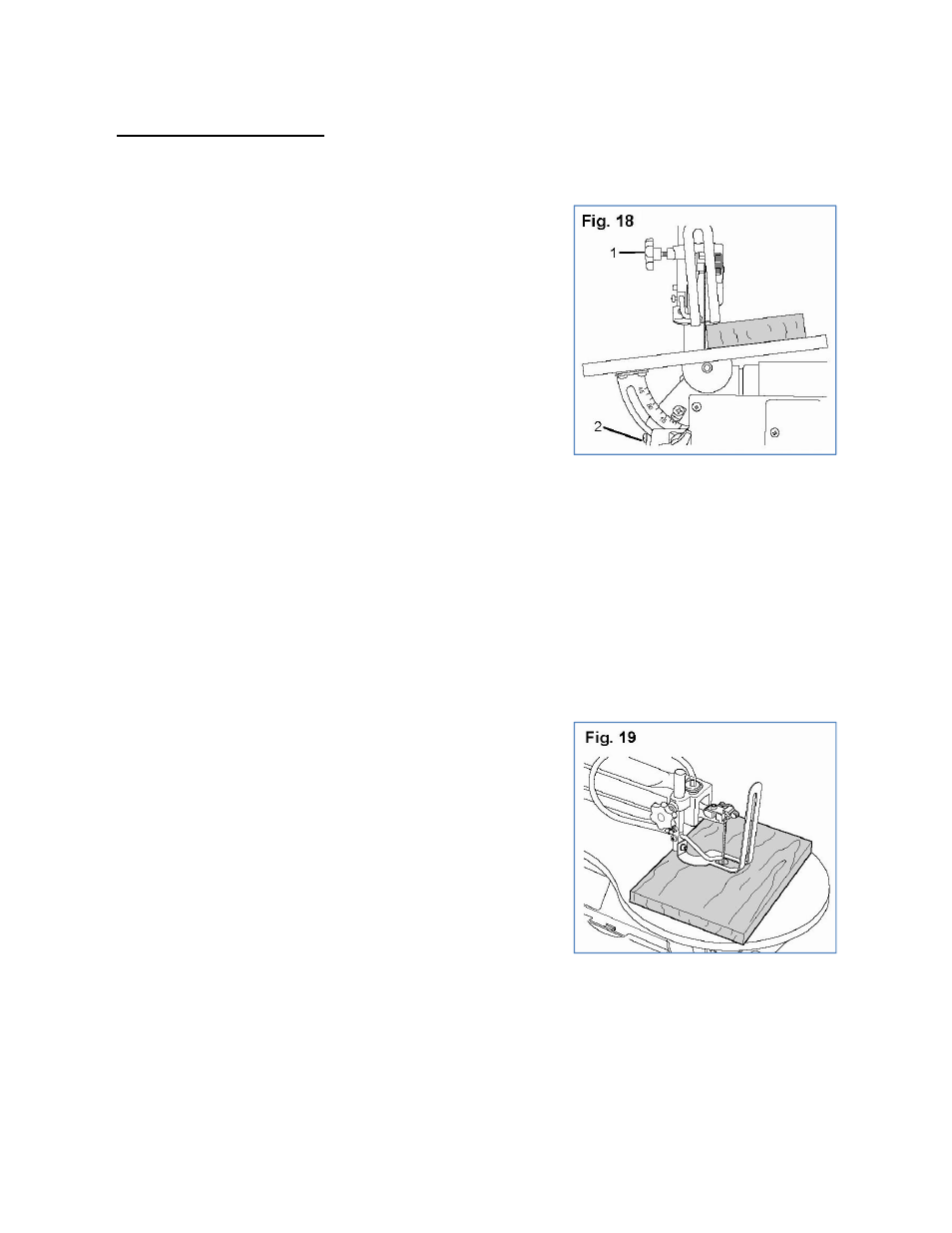

Angle cutting (bevel cutting) (Fig. 18)
1. Layout or secure design to work piece.
2. Move the blade guard foot to the highest position by
loosening the height adjustment knob (1). Retighten.
3. Tilt the table to the desired angle by loosening the
table bevel lock handle (2) and moving the table to the
proper angle using the degree scale and the pointer (3).
4. Tighten the table bevel lock handle (2).
5. Loosen the blade guard screw, and tilt the blade guard
to the same angle as the table. Retighten the blade guard screw.
6. Position the work piece on the right side of the blade. Lower the blade guard foot against the
surface by loosening the height adjustment knob. Retighten.
7. Follow steps 5¨C7 under Freehand cutting.
Interior cutting (Fig. 19)
1. Lay out the design on the work piece. Drill a 1/4" hole in the work piece.
2. Remove the blade. See Blade removal and installation.
3. Place the work piece on the saw table with the hole in
the work piece over the access hole in the table.
4. Install a blade through the hole in the work piece.
5. Follow steps 3-7, under Freehand cutting.
6. When finished making the interior scroll cuts simply
turn the scroll saw OFF. Unplug the saw before
removing the blade from the blade holder. Remove the
work piece from the table.
