11
Assembly and adjustments (continued)
Assembly instructions
No assembly required. Prior to making adjustments you
may want to mount the scroll saw on a stable surface.
See Bench mounting the saw.
Adjustments

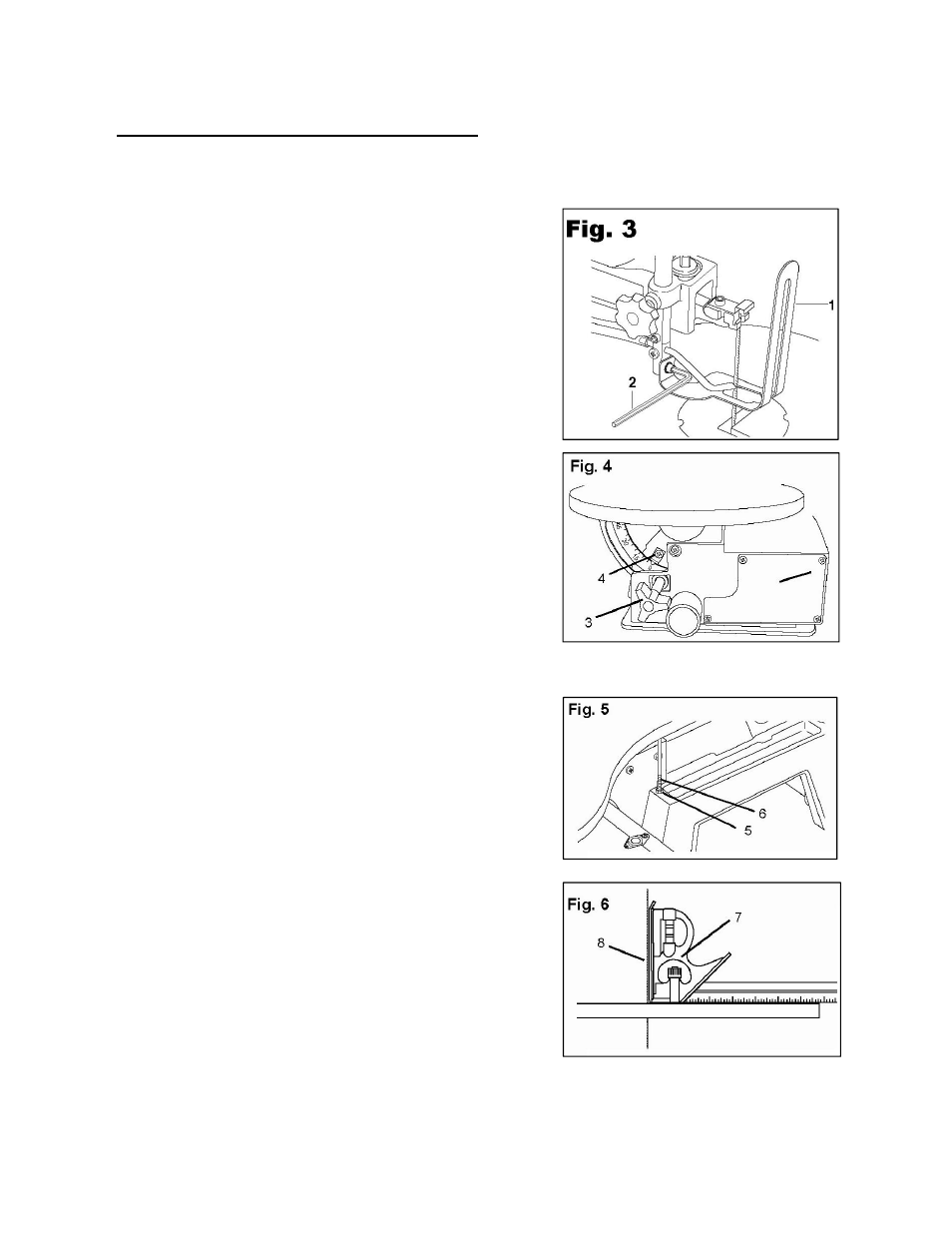

Align the bevel indicator (Fig. 3-6)
The bevel indicator has been factory adjusted. It should
be rechecked prior to use for best operation.
1. Remove the blade guard foot (1) using the hex
key (2) to loosen the screw.
2. Loosen the table bevel lock knob (3) and move
the table until it is approximately at a right angle
to the blade.
3. Loosen the locking nut (5) on the table adjusting
screw (6) under the table by turning it counter-
clockwise. Lower the table adjusting screw by
turning it clockwise.
4. Use a combination square (7) to set the table exactly 90º to the blade (8). If there is space
between the square and blade, adjust the table angle until the space is closed.
5. Lock the table bevel lock knob under the table (3)
to prevent movement.
6. Tighten the adjusting screw under the table until
the tip of the screw touches the table. Tighten the
lock nut.
7. Loosen the screw (4) holding the bevel scale
pointer and position pointer to 0°. Tighten the
screw.
8. Attach the blade guard foot (1) using the hex key
(2), so that the foot rests flat against the table.
Tighten the screw.
Note: Avoid setting the edge of the table against the top
of the motor, which could cause noise when the saw is running.
