TRITON SYSTEMS, INC. 6
MAKO EC EXTENDED CABINET INSTALLATION GUIDE
3. Move the pedestal back into position for mounting. Align the
mounting-hole cutouts in the pedestal base with the mounting
holes.
4. Insert a 3/8-inch security bolt through a provided lock washer,
flat washer and into each insert. Attach a 9/16-inch socket to a
torque wrench and tighten each bolt to a setting of 30 foot-
pounds. Because of the limited access in the lower cabinet
area, consider the following three alternative methods of
reaching the mounting bolts:
a. (Preferred method) Use a wrench with an extension bar at
least 21 inches long to move the wrench outside the lower
cabinet area. Figure 9 provides an example of this ap-
proach.
b. Use a torque wrench shorter than 11 inches to reach into
the lower cabinet area to access the bolts.
c. Use a short (less than 11 inches) standard wrench
equipped with a torque-limiting attachment to reach into
the lower cabinet area to access the bolts.
5. See Figure 10. Once the bolts are tightened down as specified
in the previous step, replace the metal floor plate that was removed
earlier. Secure the plate in place using the two retaining screws.
6. The installation of the Cash Dispenser cabinet is complete.

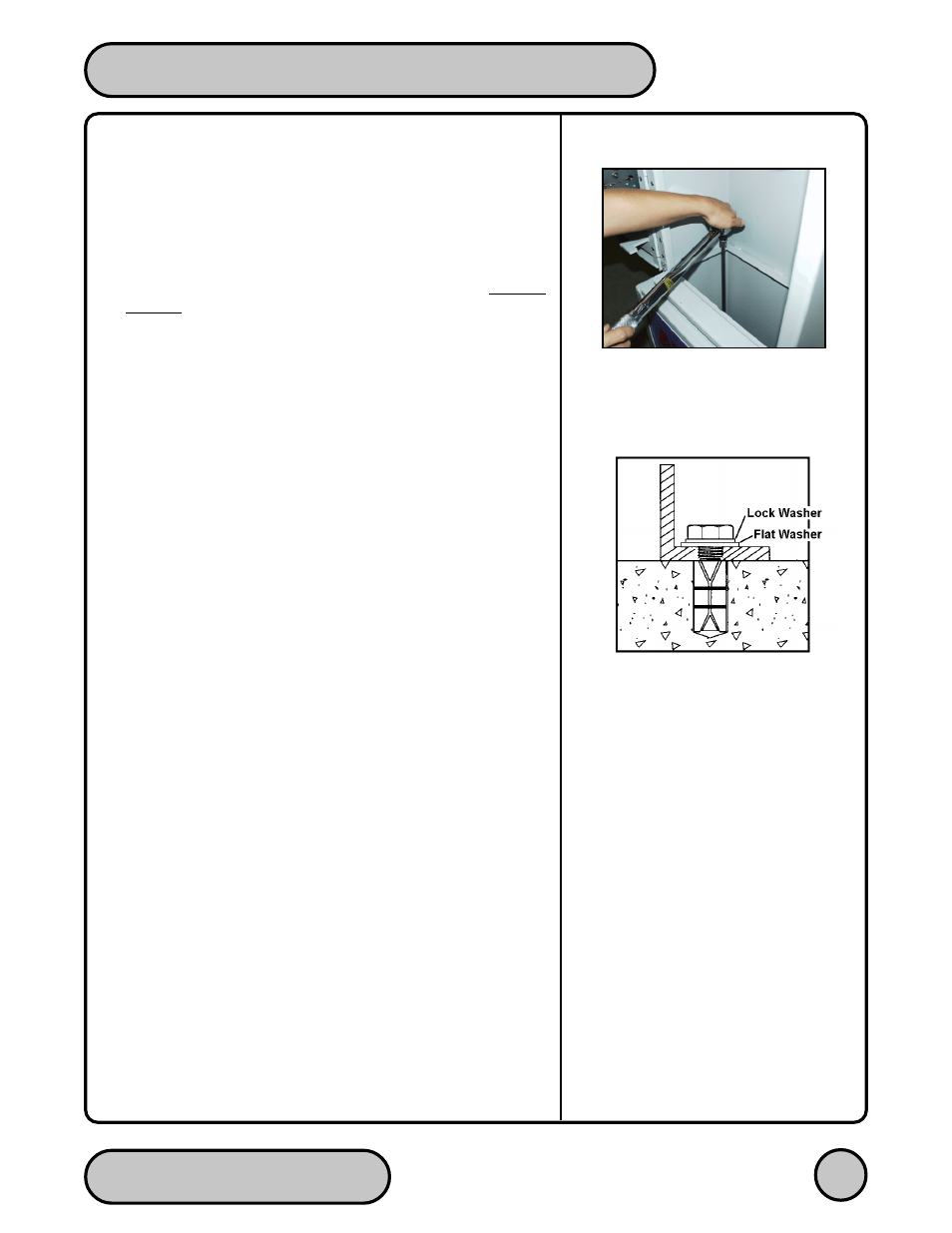

Fig. 9. Tightening Anchor Bolts
(Preferred Method).
Fig. 10. Anchor Bolt Installed.
