TRITON SYSTEMS, INC.

5

MAKO EC EXTENDED CABINET INSTALLATION GUIDE

2.

Use a 1/4-inch diameter carbide-tipped masonry bit to drill four
pilot holes at the drilling points marked in the previous step.
Drill the pilot holes approximately 1/2-inch deep into the floor.
See Figure 6. These holes will help guide the 3/4-inch masonry
bit that will be used to drill the anchor-bolt holes in the next
step.

3.

Use a 3/4-inch diameter carbide-tipped masonry bit to drill four
holes at least 1 3/4 inches deep into the floor. See Figure 7.
Be sure to take into account the depth of any floor covering,
such as tile, carpet, or vinyl when gauging the depth of the
anchor holes. Make sure the holes are drilled at least 1 3/4
inches
into the concrete floor.

5.

Use a portable vacuum cleaner to remove any dust or debris
that may have accumulated in the holes during the drilling
process.

1.

Note the two cone-shaped wedges at either end of the expan-
sion anchor; one cone has a threaded bore. Place the four
provided 3/4" expansion anchors into the mounting holes that
were drilled previously, threaded ends first.

2.

See Figure 8. The top of the expansion anchor sleeve must be
flush with the mounting surface. The top cone-wedge will project
slightly above the mounting surface, as shown.

**IMPORTANT**

Use a pencil or measuring rod to check the depth of each
hole; the depth of each hole must be at least 1 3/4 inches
before continuing!

BOLT CASH DISPENSER TO FLOOR

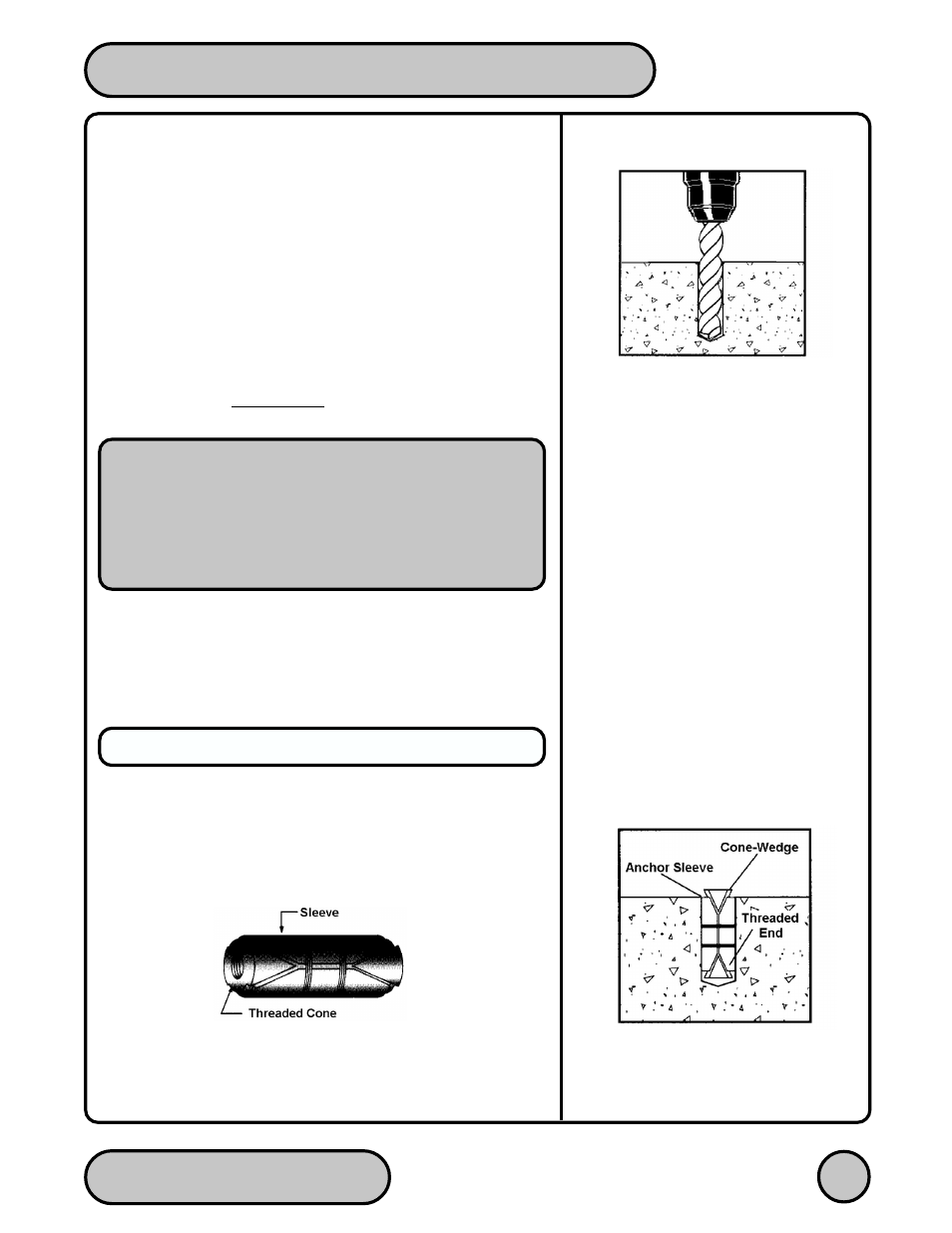

Fig. 7. Drill Anchor Hole.

Fig. 8. Insert Expansion Anchor.
