Rugged, Reliable Laser Leveling Systems

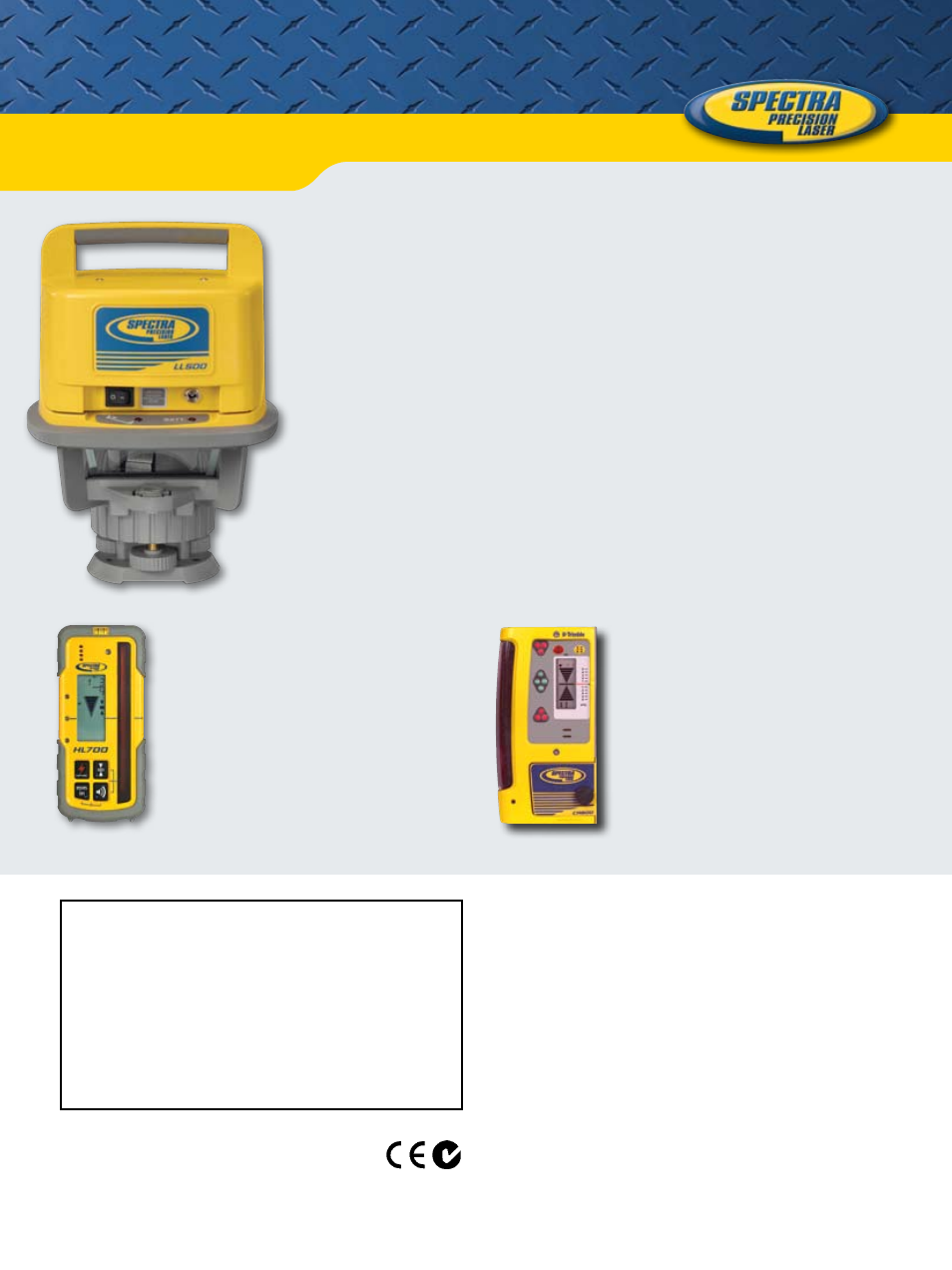

Spectra Precision Laser LL500
© 2002-2008, Trimble Navigation Limited. All rights reserved. Trimble, the Globe & Triangle logo and Spectra Precision are
trademarks of Trimble Navigation Limited, registered in the United States Patent and Trademark office and in other countries.
All other trademarks are the property of their respective owners.
PN 022485-179C (06/08)
www.trimble.com/spectra
CR600
HL700 Laserometer Specifications
Six On-Grade Sensitivities . . . . . . .Ultra Fine 0.5 mm (1/32 in)
Super Fine 1 mm (1/16 in)
Fine 2 mm (1/8 in)
Medium 5 mm (1/4 in)
Coarse 10 mm (1/2 in)
Calibration Mode 0.1 mm (1/64 in)
Operating Temperature . . . . . . . .-20°C to 60°C (-4°F to 140°F)
Battery Life (AA-2) . . . . . . . . 60+ hours continuous operation
Auto Shut-Off . . . . . . . . . . . . . . . . . . . . . . .30 minutes/24 hours
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.27 kg (9 1/2 oz)
Reception Height . . . . . . . . . . . . . . . . . . . . . .127 mm (5 inches)
Anti-strobe sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Yes
Dust and Waterproof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Yes
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . 3 Years “No Excuses”
LL500 Laser Specifications
Self-Leveling Range . . . . . . . . . . . . . . . . . . . . ± 11 arc minutes
Compensation Type . . . . . . . . . . . . . . Wire Hung, Air Damped
Accuracy . . . . . . . . . . . . . . . . 1.5 mm at 30 m (1/16 in at 100 ft)
±10 arc seconds
Temperature Compensation . . . . . . . . . . . . . . . . . . . . . . . . . .Yes
Laser Type . . . . . . . . . . . . . . . . . . . . . . . 670 nm visible, Class II
Machine Control Compatible . . . . . . . . . . . . . . . . . . . . . . . . .Yes
Battery Life 20°C (68°F) . . . . . . . . . .4 D-Cell Alkaline - 175 hrs
NiMH - 100 hrs, NiCad - 75 hrs
Operating Diameter . . . . . . . . . . . . . . . . . . . . . . 500 m (1,600 ft)
Operating Temperature . . . . . . . .-20°C to 50°C (-4°F to 122°F)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.6 kg (8 lbs)
Tripod Mount. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5/8 in x 11
Warranty . . . . . . . . . . . . . . . . . . . . . . . .2 Years Use-and-Abuse
HL700 Laserometer Features
Digital readout of elevation shows how far from on grade
without moving the rod clamp.
Large 127 mm (5 inch) reception height acquires the beam
quickly and keeps you in the laser beam.
CAPTURE function remotely acquires and retains a
measurement when the display is difficult to see.
Extremely tough - can withstand a drop of 3 m (10 ft) onto
concrete and has a 3 year warranty to back it up.
CR600 Receiver Features
Simultaneous 5-channel green and red LED display
ensures that information can be read even in poor light,
over long distances, and at an angle.
Magnetic mount is included for fast machine mounting and
holds the receiver firmly in place.
The CR600 wraparound receiver cells offer continuous
pickup through an operating range of 270° for reduced
setups and improved productivity, especially in machine
applications.
HL700
CR600 Receiver Specifications
Seven On-Grade Sensitivities . . .Ultra Fine 0.1 mm (0.004 in)
Super Fine 1.0 mm (1/32 in)
Fine 1.5 mm (1/16 in)
Medium 3 mm (1/8 in)
Coarse 6 mm (1/4 in)
Machine Fine 10 mm (3/8 in)
Machine Coarse 25 mm (1 in)
Operating Temperature . . . . . . . .-20°C to 50°C (-4°F to 122°F)
Battery Life (AA-3) . . . . . . . . . .100 hours at normal operation
Auto Shut-Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 minutes
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 kg (1.1 lb)
Reception Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270 degrees
Dust and Waterproof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Yes
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Years
