Maximum Versatility in Interior and General Construction Applications

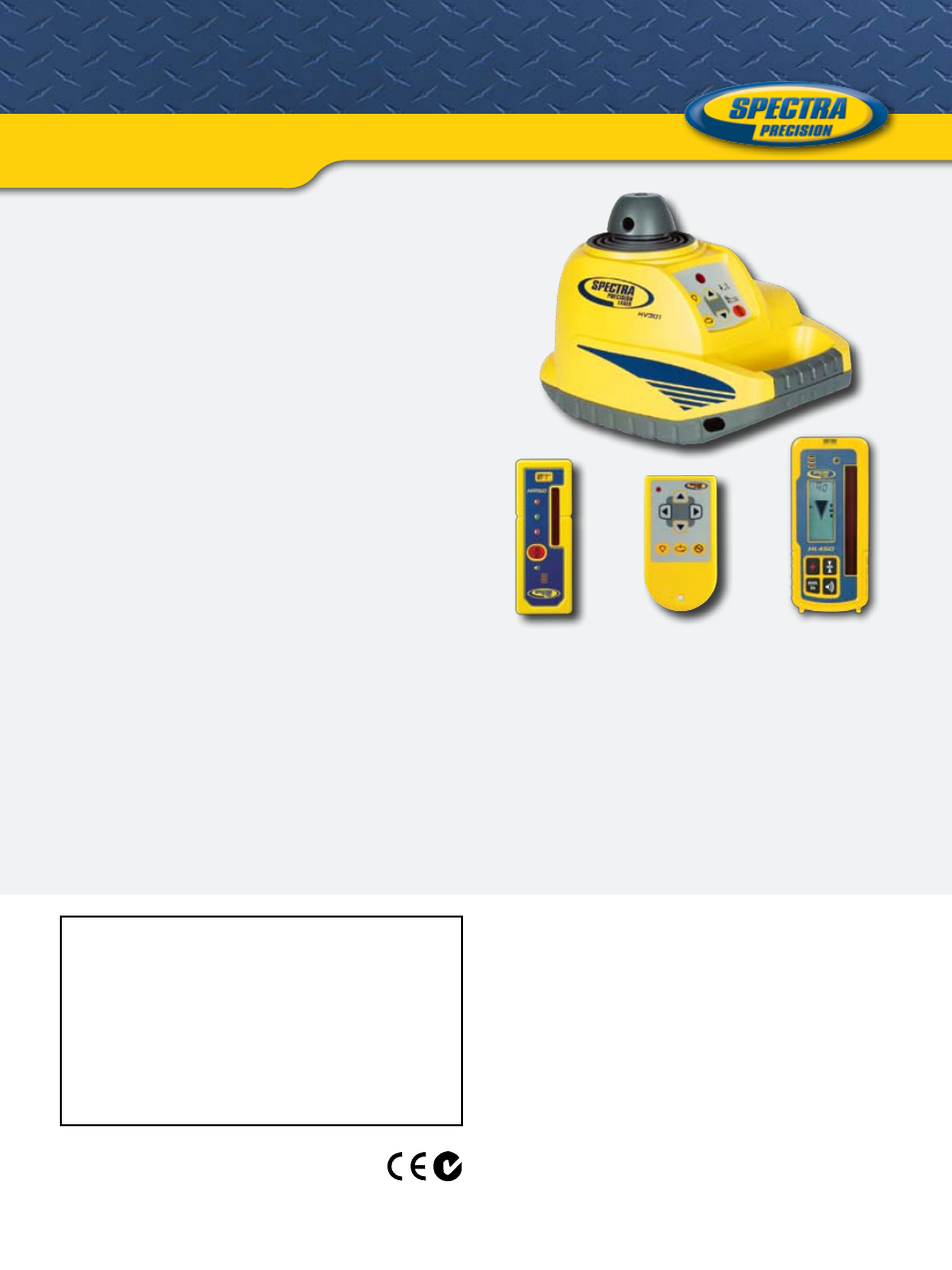

Spectra Precision HV301
HV301 Laser Features
• High durability with IP54 sealing
• Automatic self-leveling for level and plumb
• Temperature compensation for accurate outdoor use regardless of season
• Highly visible beam
• Flexible power options and battery recharge port
• Intuitive, one-touch operator controls
• Built-in vertical stand and 5/8” × 11” H/V mounting
• Manual slope control to match known references
• Wall mount feature allows vertical setups with no extra accessories
HV301 Laser Specifications
Laser source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <5 mW nominal
Laser accuracy . . . . ±3/32 in at 100 ft (±2.2 mm at 30 m) (±15 arc seconds)
Temperature compensation . . . . . . . . . . . . . . . . . . . . Yes (2 arc seconds / °C)
Self-leveling range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±5 degrees
Compensation method . . . . . . . . . . . . . . . . . . . . . . . . .Electronic self-leveling
Power source . . . . . . . . . . . . . . . . . . . . . . Rechargeable or alkaline batteries
Battery life . . . . . . . . . . . . . . . . . . . . 40 hours rechargeable, 90 hours alkaline
Battery Status LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Flashing red LED
Battery recharging time . . . . . . . . . . . . . . . . . . . . . . . . . . . .Less than 10 hours
Rotation speed . . . . . . . . . . . . . . . . Four preset speeds from zero to 600 rpm
Out-of-level warning . . . . . . . . . . . . . . . . . . . . . . .Rotor stops, laser shuts off,
red out-of-level LED flashes
Operating temperature . . . . . . . . . . . . . . . . . . -20 °C to 50 °C (-4 °F to 120 °F)
Storage temperature . . . . . . . . . . . . . . . . . . . . -20 °C to 70 °C (-4 °F to 158 °F)
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 years
Water resistant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes, and IP54 sealing
Size . . . . . . . . . . . . . . . . . . . .24.5L × 16.5W × 18.5H cm (9.6L × 6.5W × 7.3H in)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.7 kg (6 lbs)
www.trimble.com/spectra
HR150 Receiver Features
• Rugged, water-resistant composite housing
improves performance in tough jobsite conditions
• Visible operation, day or night, in any conditions with
Red HI/LOW LEDs and green on-grade
HL450 Laserometer Features
• Digital readout of elevation shows how far from
on grade without moving the rod clamp
• Large 102 mm (4 inch) reception height acquires the
beam quickly and keeps you in the laser beam
• Extremely tough - can withstand a drop of 1.5 m (5 ft)
onto concrete and has a 3 year warranty to back it up
HR150 Receiver Specifications
Drop capable on concrete . . . . . . . . . . . . . . . . . . . . 1.5 m (5 ft)
Operating range (radius) . . . . . . . . . . . . . . . . . . .150 m (500 ft)
Displays . . . . . . . . . . . . . . . . . . Dual LED with green on-grade
Number of display channels . . . . . . . . . . . . . . . . . . . . . . . . . . 3
On-grade sensitivities . . . . . . . . . . . . . . . . . . . 1: 3 mm (1/8 in)
Decibel level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 dBA
Low battery warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Auto shut-off (30 minutes) . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Water resistance . . . . . . . . . . . . . . . . . . . . . . .Waterproof IP67
Weight (without clamp) . . . . . . . . . . . . . . . . . . . . 245 g (8.6 oz)
Dimensions (D×W×L) . . . . . 2.8 Ч 5 Ч 13.7 cm (1.1 Ч 2 Ч 5.4 in)
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 year
HL450 Laserometer Specifications
Drop capable on concrete . . . . . . . . . . . . . . . . . . . . 1.5 m (5 ft)
Operating range (radius) . . . . . . . . . . . . . . . . . . .200 m (650 ft)
Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Dual LCD
Number of display channels . . . . . . . . . . . . . . . . . . . . . . . . . 21
On-grade sensitivities . . . . . . . . . .2: 1 & 5 mm (1/16 & 1/4 in)
Decibel level . . . . . . . . . . . . . . . . . . . . Low 65 / High 105 dBA
Low battery warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Auto shut-off (30 minutes) . . . . . . . . . . . . . . . . . . . . . . . . . . Yes
Water resistance . . . . . . . . . . . . . . . . . . . . . . .Waterproof IP67
Weight (without clamp) . . . . . . . . . . . . . . . . . . . 371 g (13.1 oz)
Dimensions (D×W×L) . . 3.6 Ч 7.6 Ч 16.8 cm (1.4 Ч 3.0 Ч 6.6 in)
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 years
RC601 Remote
included with interior
and combo package
HR150 Receiver
included with combo
package
HL450 Laserometer
included with GC package
