Rod clamps are standard on all receivers

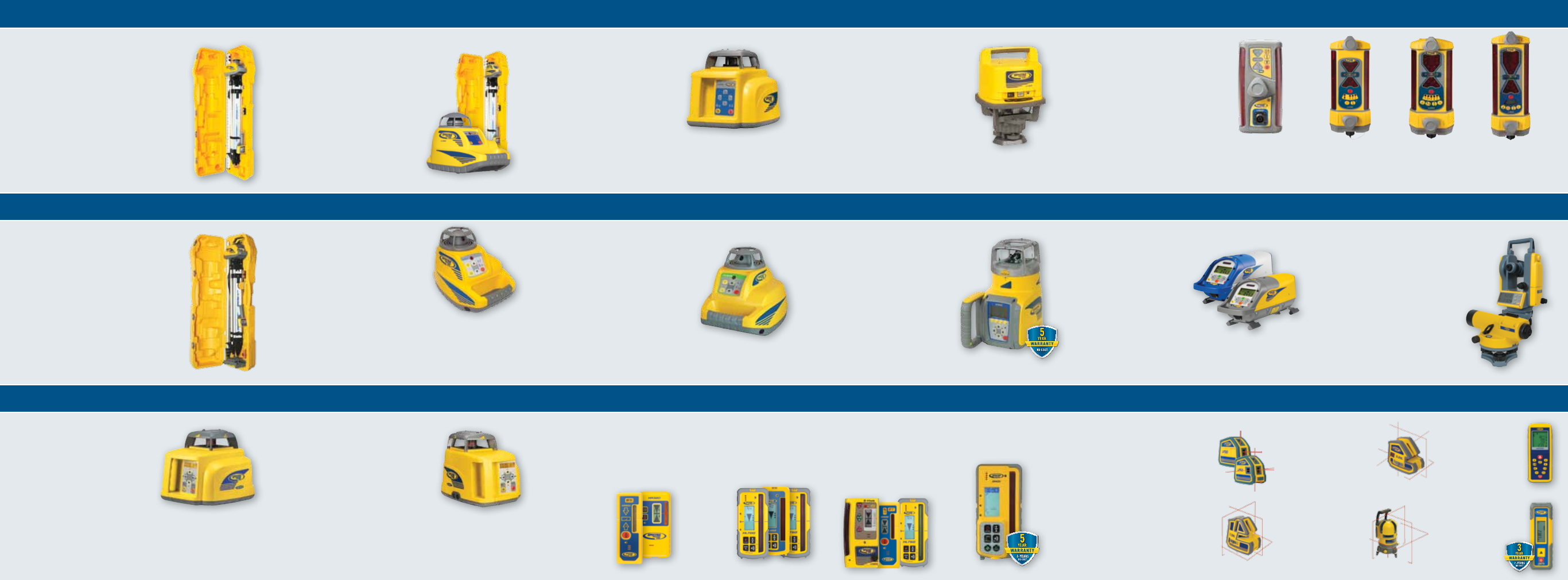

Laser Levels
Horizontal & Vertical Lasers
Grade Lasers Laser Receivers Portable Tools
Pipe Lasers Optical Instruments
Machine Receivers
Universal Lasers
Rugged design with “hard hat”
rotor protection
■ ■
Superior drop and weather protection.
Fully automatic self-leveling
■ ■
provides fast and accurate set-up.
extremely versatile with
single-axis manual slope
■ ■
Cross-axis self-leveling allows for
grade matching on the job site.
LL300
Complete system in one case
—includes laser, HR320 receiver,
rod, and tripod
■ ■
Convenient storage and transportation.
Compensated self-leveling,
maintains level automatically
■ ■
Maintains accuracy over the entire
work area, and minimizes errors.
Robust design
■ ■
3 year no downtime warranty keeps
productivity high and operating
costs low.
LL100
Bright beam, scanning
and variable speed control
■ ■
Suitable for shorter range interior jobs.
Automatic self-leveling in
both horizontal and vertical
■ ■
Simple controls provide one
touch setups.
■ ■
Simultaneous 90-degree split beam.
■ ■
ideal for layout of walls and framing.
Available in GC Package
■ ■
Complete system in a case for
interior and exterior applications.
HV101
Fully automatic self-leveling
performs three jobs cost
effectively
■ ■
Level, -10 to +15% grade, and
vertical alignment with plumb.
Full function remote control
does everything you can do
at the laser keypad
■ ■
Make grade changes from
anywhere on the job reducing setup times.
Automatic temperature and grade
compensation
■ ■
High accuracy in any weather.
GL412/GL422
2-way full function radio
remote control
■ ■
perform all functions that you can do
at the laser keypad anywhere on the
job site.
Wireless communication with the
HL750 Laserometer
■ ■
Grade Matching - easily measure
unknown grade between two points.
■ ■
planeLok - locks the beam to a fixed
elevation or vertical alignment point for
maximum stability and accuracy.
■ ■
Remote grade checking and wireless
monitoring capabilities.
GL512/GL522
Traditional laser receivers
■ ■
HR150U, HR320.
■ ■
ideal for general exterior
and interior applications.
■ ■
Models with LeD’s
and/or LCD’s.
Laserometers
■ ■
HL450, HL700, HL750.
■ ■
Digital readout of elevation.
■ ■
exceptional durability and
warranty.
■ ■
Advanced
features
including
radio comm.
the Rod-less Grade
Checker – DR400 DigiRod Specialty receivers
■ ■
Machine or rod mounted - CR600.
■ ■
Universal receivers detect red, infrared
and green beams - HL750U, HR150U.
■ ■
Line generator receiver - HR220.
HR’s, HL’s, CR600 & DR400
LP30 and LP50 Laser Pointers
■ ■
three and five point lasers are ideal
for interior wall layout, level and
plumb alignment of doors, windows,
cabinets and chair rails. perfect for
point transfer.
1.3XL 3 Beam Cross Line Layout
Laser with 1 Down Point
■ ■
One self-leveling tool gives you
level, horizontal and vertical layout,
square, and plumb. ideal for interior
wall construction, ceilings, cabinets
and even exterior leveling with
optional receiver.
HD100 Laser
Distance Meter
■ ■
Advanced measuring
and estimating tool
QM75 Quick Measure
Distance Meter
■ ■
Fast and accurate
distance measurement
with handheld
convenience.
1.5PL Precision Laser
■ ■
Built in collapsible
tripod legs and fine
adjustment knobs
ensure setup is fast
and accurate
5.2XL Multi-Purpose 5
Point & Cross Line laser
■ ■
Versatile, automatic
self-leveling, multi-
purpose tool combines
a pointer and line
generator in one tool.
LP’s, XL’s, PL’s & HD’s
Temperature compensation
■ ■
Maintains accuracy regardless
of season.
Composite material housing
is rugged, lightweight and
weatherproof
■ ■
easy for contractor to carry and use in
demanding jobsite conditions, less downtime for repair.
Fully automatic self-leveling in both
horizontal and vertical
■ ■
provides fast and accurate setup in
horizontal and vertical.
HV301
Green beam provides superior beam
visibility
■ ■
Four times more visible than red beams.
■ ■
For use over longer ranges or
bright conditions.
Long range remote control
■ ■
Adjust rotation speeds or scanning
zones from anywhere on the job site.
Flexible power options
■ ■
efficient nickel-Metal Hydride rechargeable batteries are
standard. Alkaline batteries can provide power backup.
HV301G
The most versatile laser - ever
■ ■
Dual Grade, Horizontal, Vertical,
interior and pipe Laying Laser
Fully automatic in X, Y
and Z axis
■ ■
total control for any application
Several unique
advanced features
■ ■
plane-Lok, Grade Match and Axis
Alignment ensure accuracy and
fast setup
UL633
Largest self-leveling range
■ ■
Fast, easy setups.
■ ■
no rough leveling required.
Wireless remotes
■ ■
included standard.
Construction tough
■ ■
Stands up to the demanding
underground conditions.
■ ■
proven rugged dependability.
DG511/DG711
Digital electronic Theodolite
■ ■
2 second accuracy for all
construction applications.
■ ■
Dual sided LCD with large
easy to read characters.
■ ■
Rechargeable and alkaline
battery packs included.
Spectra Precision Auto Levels
■ ■
20, 24, 28 or 32
power magnification.
■ ■
Choice of air dampened or
magnetic dampened.
DET-2 / ALXX-A/M Series
Fast setup and automatic
self-leveling
■ ■
Minimizes operating costs
and boosts productivity.
Highly rugged design and
patented lighthouse seal
■ ■
Superior drop and
weather protection.
Single-axis slope mode
■ ■
provides grade matching with
self-leveling cross axis.
LL400
500 m (1,600 ft) working diameter
■ ■
Long-range accurate laser increases
productivity by reducing the need for
multiple setups on large job sites.
Built-in leveling system with
out-of-level shut off
■ ■
Maintains accuracy over the entire work
area and minimizes errors.
High accuracy laser, 1.5 mm per
30 m (1/16 per 100 ft) with
temperature compensation
■ ■
Highly stable and repeatable accuracy
even under large temperature changes.
LL500
Increase machine and
operator productivity
■ ■
Check grade from the machine cab.
■ ■
Saves labor, time, and fuel.
■ ■
Use on backhoes, excavators,
dozers, box blades, trenchers,
and skid steer attachments.
All LR receivers feature
■ ■
Versatile 360 degree reception.
■ ■
Works with all types of rotating lasers.
■ ■
Multiple accuracy selections.
■ ■
power options and long battery life.
■ ■
Ultra-bright LeD’s with green on-grade.
■ ■
LR30 for general
grading
■ ■
3 selectable
accuracies
■ ■
LR50 for excavating
and grading
■ ■
Built in blade tilt and
plumb indication
■ ■
LR60 for excavating
■ ■
plumb indication
and unique angle
compensation
■ ■
LR20 and adjustable
magnetic mount for
compact machines
LR20, LR30, LR50, LR60
