Model # VSS-1000
Assembly / Installation Instructions

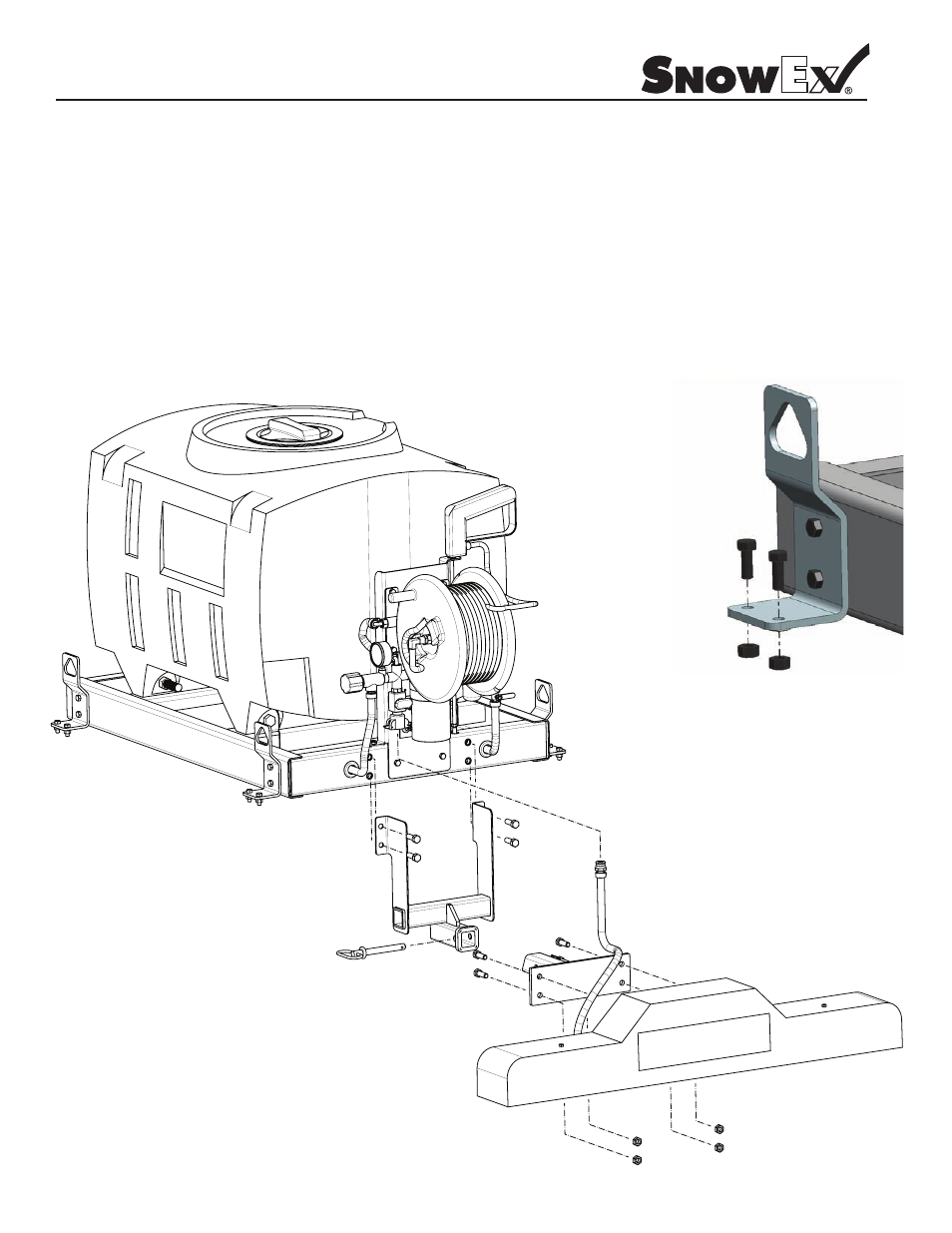

Step 1: Bolt boom mount assembly onto rear of frame with supplied hardware (see fig 1).
Step 2: Lift main assembly using the four corner lift point brackets and position onto vehicle. Center spray system left to
Step 3: Bolt boom onto 2” receiver mount with supplied hardware (see fig 3).
Step 4: Install boom assembly with mount into receiver that was installed in step one (see fig 4).
Step 5: Plug boom hose into pump output fitting located below shutoff valve (see fig 5).
figure 2
figure 1
Lift Point
figure 5
figure 3
right and then slide forward until boom mount just makes contact with vehicle. Bolt into place with supplied
hardware (see fig 2).
