SnowEx SP-1875 - Manual (Page 11)

11 © Trynex International 2011 (REV A) F50872

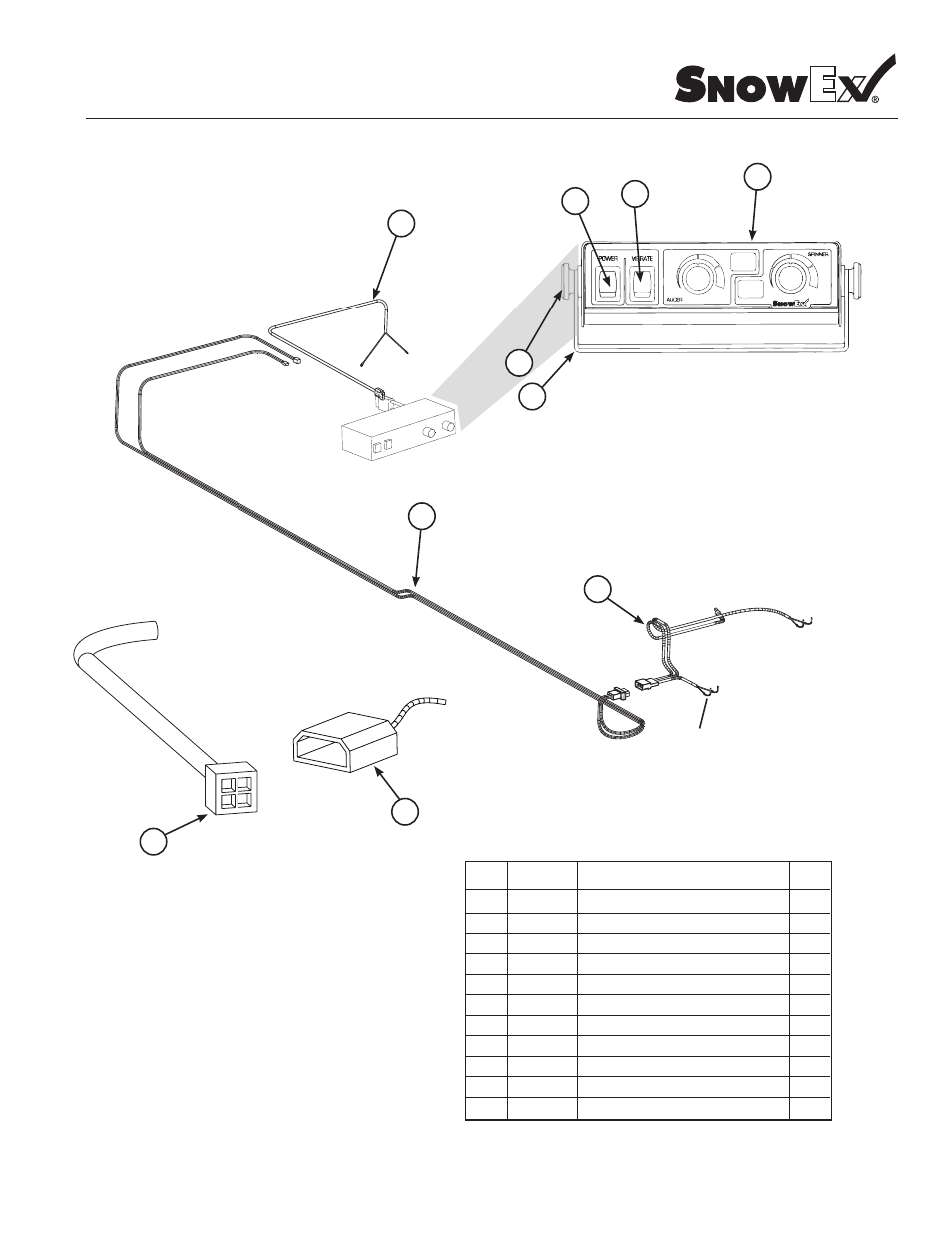

Control and Harness Diagram
Model # SP-1575/SP-1875
Key Part No. Description Qty
1 D6527 Spreader Control | Pro 1
2 D6124 Bracket Knob 2
3 D6329 Controller Mounting Bracket | Pro 1
4 D6341 Control Power Cable | 156" Pro 1
5 D6322 Vehicle Harness | 311" 1
6 D6321 Spreader Harness | 38" 1
7 D6343 Dust Cover | Pro 1
8 D6170 Connector Adapter | 6" Anderson 1
9 D6237 Power Switch | 5 Terminal 1
10 D6354 Vibrator Switch | 3 Terminal Red 1
11 D6344 Dielectric Grease | 1-1/2 oz. 1
IMPORTANT: In the off season remove control
and put in a cool dry place. The interior summer
temperatures could damage circuit board and
void warranty.
To Vibrator
To Auger Motor
To Spinner Motor
5
2
1
4
3
6
7
8
9
10
IMPORTANT: Do Not modify harness length. Any modifications
will void warranty.
Special Notes:
1) All external connections must have dielectric grease.
2) Read lead labels before attaching to power source or ground.
3) No other devices may be spliced into wiring harness.
4) Any repairs to wiring harness must be done with heat shrink butt
connectors.
5) If inline fuse is installed, use a 60 amp maxi fuse or circuit breaker.
