Grommet Panels for Bungees
Grommet
Panel
10066
cover

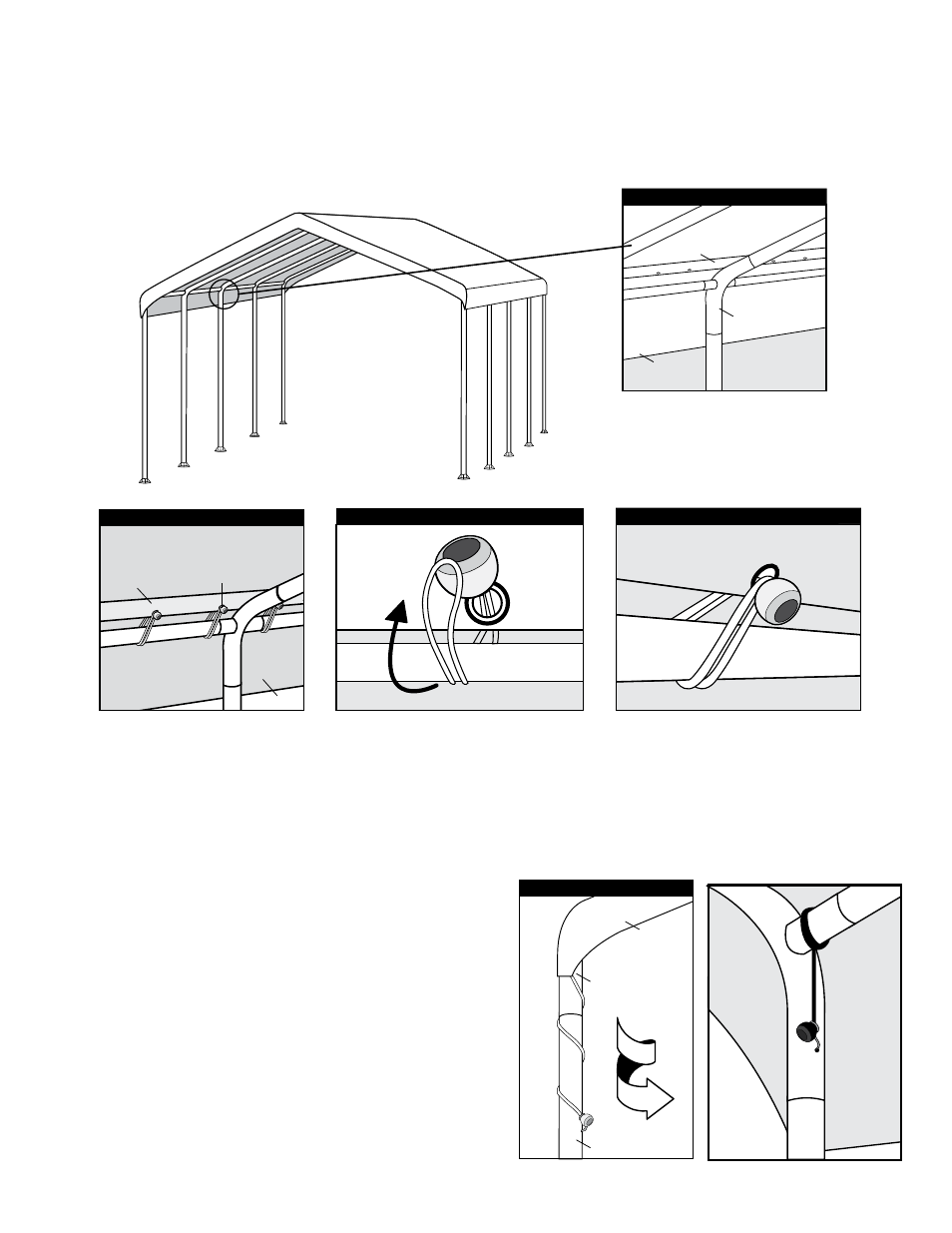

6. PlACE COVER AND SECURE TO CANOPY FRAME
A. Place cover over assembled roof frame with grommet panels facing down, aligned with cross rails.
B. Make sure the cover is properly aligned on the frame, secure the four corners of the cover with bungees
(10066) to the frame first . Attach remaining bungees.
Re-adjust bungees position along cross pole as needed to ensure a tight and even fit of the cover to the frame.
Secure Bungee Around Plastic Ball
Grommet Panels for Bungees
Grommet Panel
cover
Insert Bungee Cord Through Grommet Hole
10047
7. TIGHTEN THE COVER WITH TWIST TITE ™
A. Wrap the cover's cord with plastic ball and "S" hook
at the corners of the cover around the corner leg poles.
Insert "S" hook into the hole of the corner leg poles.
Twist each leg pole toward the inside of the shelter until
the cover becomes tight. Twist the leg poles equally to
ensure the cover stays aligned during tightening.
B. To keep the leg in place, wrap a TwistTite™ cord
around the cross rail and insert its "S" hook into the
lined-up hole of the leg pole and 3-way connector.
This will prevent the leg from "untwisting". Do this at
each corner.
Twist-Tite ™ Tighten Cover
800243
cover
10045 B A
