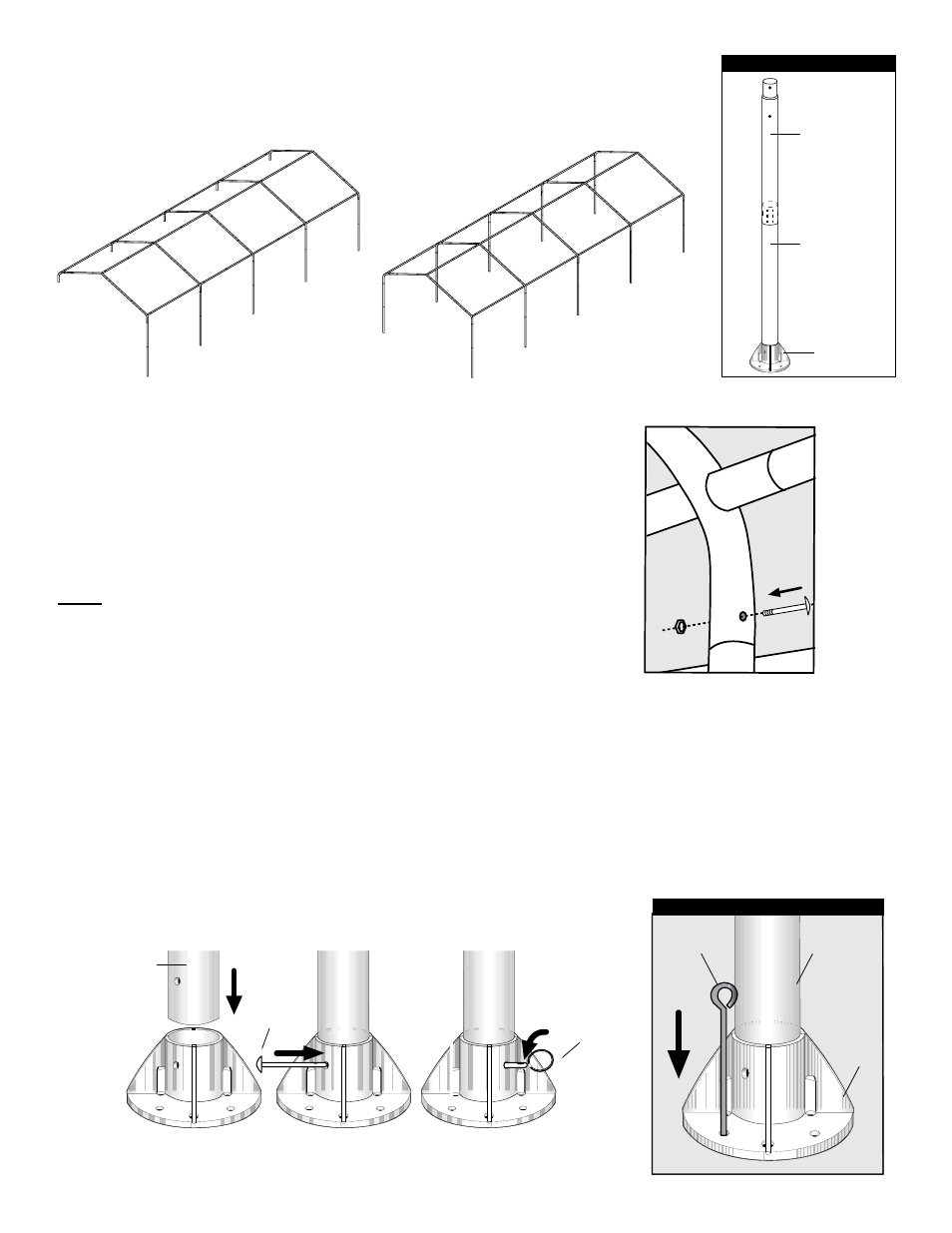

3. ASSEMBlE lEGS & ATTACH TO ROOF FRAME
Attach all legs to one side first. Let the other side of roof frame rest on the
ground. Repeat for opposite side.
4. SECURE lEGS
A. Assemble the middle upright leg sections and lay them next to the
canopy near each of the 4 way connectors. See figure 3.
B. Insert one middle leg on one side of the frame. Insert the rest of the
legs on that same side. Repeat for the opposite side. Now secure legs to
the top side bend connectors with nuts and bolts. See Insert.
Note: Ensure the hole in the pipe on the 4 corner legs part (800243)
is nearest the top for insertion of “S”-Hooks.
5. ATTACH FEET & ANCHOR CANOPY
A. Insert the foot plates onto the bottom of the legs by lifting each leg and slide the foot onto the pole leg.
B. Rotate the foot until the hole aligns with the hole in the pole leg. Insert a long pin (10052) into each hole to
secure each foot. Secure with ring. Repeat for all 10 legs.
C. There are four holes on each base foot that the anchor can go into. Select a hole in each base foot. Insert
each anchor into the ground until the round head is touching the base foot.
D. Insert one anchor into all 10 base feet.
This is a temporary spike anchor. Not intended for permanent use.
10093
Ring
10050
10052
A B
Leg Pole Assembly
800243
10093
10050
10050
Anchoring Base Feet
10093 10431
C
