SANDPIPER S20 Non-Metallic - Manual (Page 34)

520-202-000 9/03 Model S20 Non-Metallic Design Level 2 Page 32
MUFFLER CAP

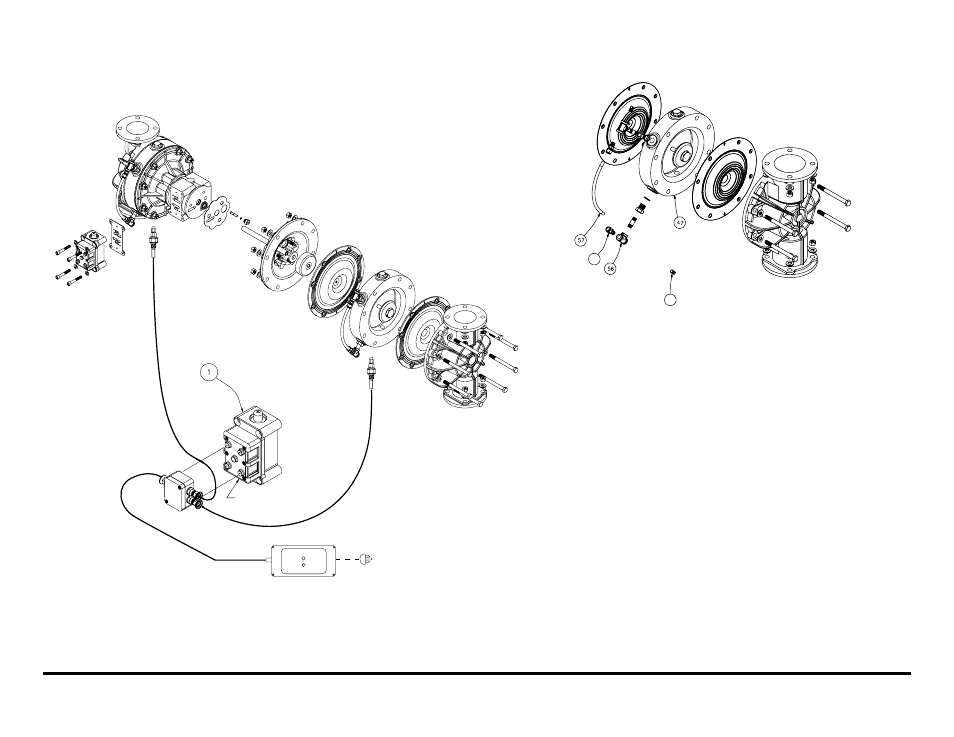

RuppTech ® Leak Detection Options Drawing
RuppTech® LEAK DETECTION OPTION (ELECTRONIC)
Follow instructions found elsewhere in this manual, “Filling the
RuppGUARD™ Spill Prevention Chambers” when installing leak
detectors.
Electronic Leak Detector Installation
Kit 032-037-000 100VAC 50Hz
or 110-120VAC 50/60Hz
or 220-240VAC 50/60Hz
Kit 032-045-000 12-32VDC
To install electronic leak detectors, remove the bottom ¼" NPT
pipe plug on the visual sight tube (item 52). Insert leak detector into
the ¼" pipe tee (item 56).
LEAK DETECTION OPTION (MECHANICAL)
Follow instructions found elsewhere in this manual, “Filling the
RuppGUARD™ Spill Prevention Chambers” when installing leak
detectors.
Mechanical Leak Detector Installation
Kit 031-023-110
To install mechanical leak detectors, remove the bottom ¼" NPT
pipe plug on the visual sight tube (item 52). Insert leak detector into
the ¼" pipe tee (item 56).
58
52
For pumps with
530-028-550
ENCLOSED MUFFLER
