SANDPIPER S20 Non-Metallic - Manual (Page 14)

520-202-000 9/03 Model S20 Non-Metallic Design Level 2 Page 12
Overlay Option Drawing
Muffler Option
Drawing

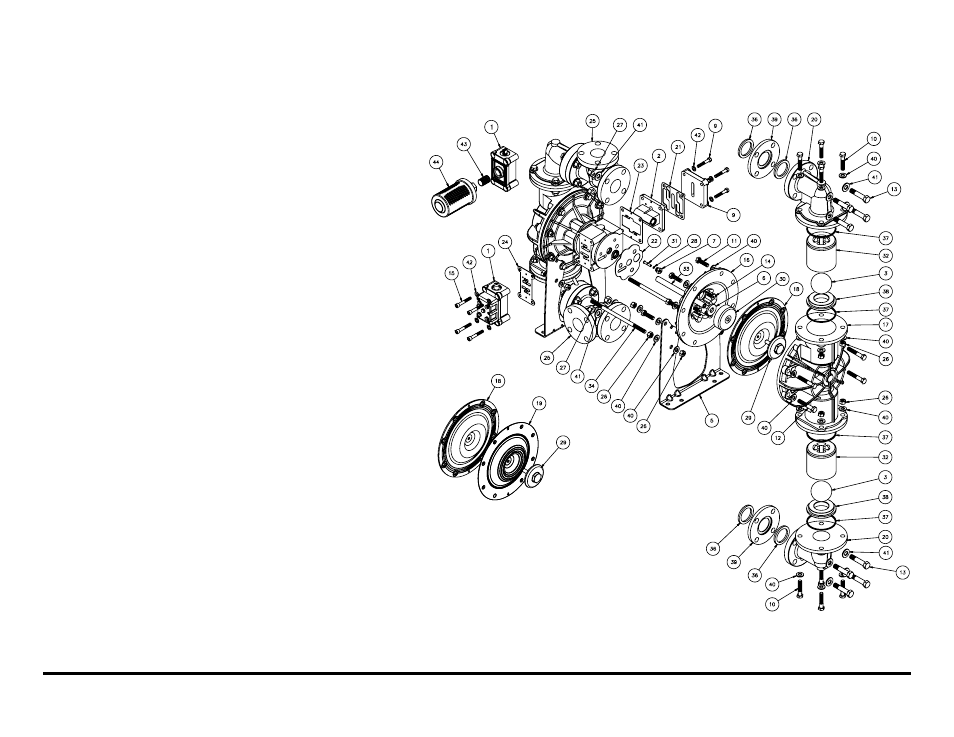

Composite Repair Parts Drawing
AVAILABLE SERVICE AND CONVERSION KITS
476-174-000
AIR END KIT
Seals, O-rings, Gaskets, Retaining Rings, Air Valve Sleeve &
Spool Set and Pilot Valve Assembly
476-175-000* AIR END KIT (for Stroke Indicator Option)
Seals, O-rings, Gaskets, Retaining Rings, Air Valve Sleeve &
Spool Set and Pitot Valve Assembly.
476-139-354 WETTED END KIT
Santoprene Diaphragms, Santoprene Balls and TFE Seals.
476-139-654 WETTED END KIT
Santoprene Diaphragms, PTFE Overlay Diaphragms, TFE
Balls and TFE Seals.
476-142-354 WETTED END KIT (for Polypropylene RuppGuard™)
Santoprene Diaphragms, PTFE Overlay Diaphragms, PTFE
Pumping Diaphragms, PTFE Balls and PTFE Seals.
476-142-655 WETTED END KIT (for PVDF RuppGUARD™)
Santoprene Diaphragms, PTFE Overlay Diaphragms, PTFE
Pumping Diaphragms, PTFE Balls and PTFE Seals.
031-141-000 ASSEMBLY, AIR VALVE
(without Encapsulated Muffler, Muffler Cap and six screws)
HARDWARE KITS
475-170-308 PTFE Coated Stainless Steel Capscrews, Hex Nuts,
Washers and Support Rod
475-171-308 (For use with RuppGUARD™ Spill Prevention Options)
RuppTech® PULSE OUTPUT KITS
(For use with 530-010-000 and 530-032-000 Mufflers, or piped exhaust)
475-198-001
DC Kit
475-198-002 DC Intrinsically Safe Kit
475-198-003 110/120VAC or 220/240VAC Kit
475-198-004 110/120VAC Intrinsically Safe Kit
475-198-005 220/240VAC Intrinsically Safe Kit
(For use with encapsulated 530-028-550 Muffler)
475-198-006
DC Kit
475-198-007 DC Intrinsically Safe Kit
475-198-008 110/120VAC or 220/240VAC Kit
475-198-009 110/120VAC Intrinsically Safe Kit
475-198-010 220/240VAC Intrinsically Safe Kit
RuppTech® ELECTRONIC LEAK DETECTOR KITS
032-037-000 100VAC 50Hz
or 110-120VAC 50-60Hz
or 220-240VAC 50-60Hz
032-045-000 12-32VDC
