Pilot valve assembly drawing – SANDPIPER S20 Non-Metallic User Manual
Page 26
520-202-000
9/03
Model S20 Non-Metallic Design Level 2 Page 24
Pilot Valve Assembly Parts List
Item
Part Number
Description
Qty
2
095-093-000
Pilot Valve Assembly
1
2-A
095-092-001
Body, Pilot Valve
1
2-B
135-033-506
Bushing
2
2-C
675-055-115
Ring, Spiral Retaining
2
2-D
770-049-175
Spacer
5
2-E
917-001-374
Wiper
6
2-F
775-033-506
Spool, Pilot
1

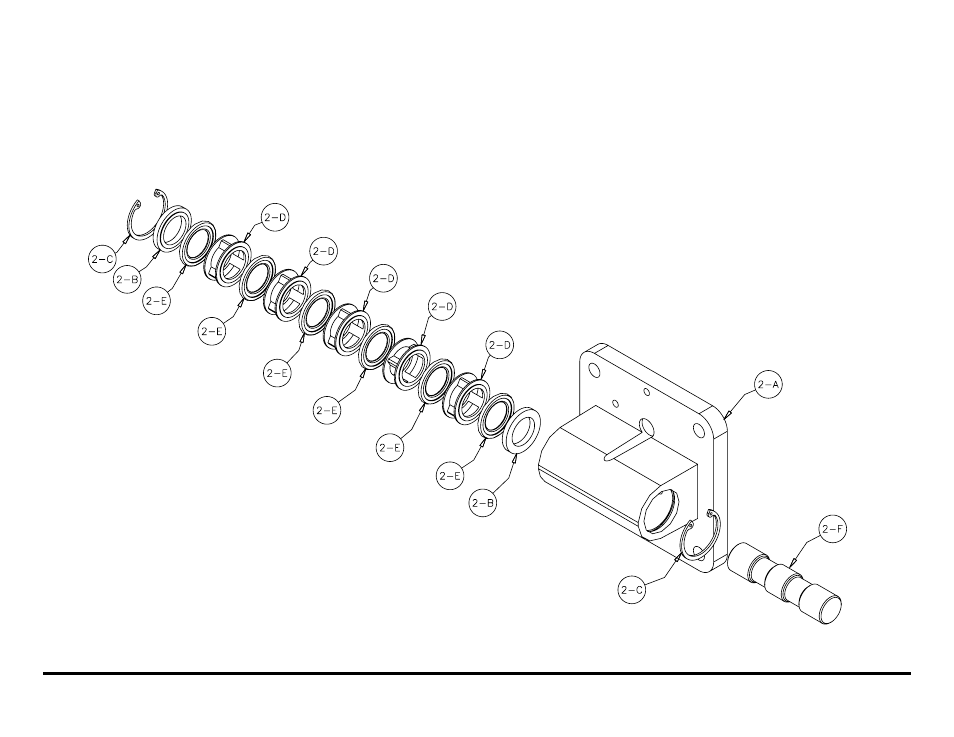

Pilot Valve Assembly Drawing
