rhdf2dl1sm_haz duty-rev0614 Model RHDF2 Hazardous Duty Page 28
Note: Refer to AirVantage Composite Repair Parts
List on page 23 for part numbers

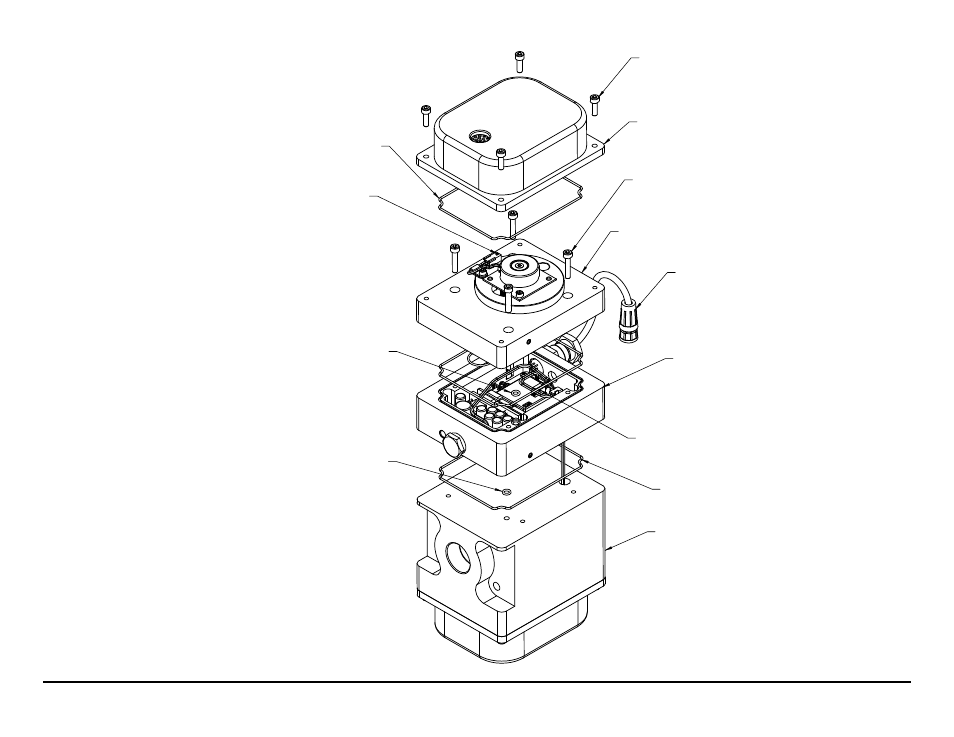

AirVantage Servicing -
Poppet Valve Drawing
CAPSCREW, HEX SOC HD
M5 x 0.8 x 16
COVER
CAPSCREW, HEX SOC HD,
M5 x 0.8 x 25
SEAL, O-RING
CONNECTOR (Power
Generation Module to
Control Module)
POWER GENERATION MODULE
CONNECTOR
(To Intermediate)
Connector (Control Module
to Power Generation Module)
CONTROL MODULE
VALVE, POPPET
SEAL, O-RING
SEAL, O-RING
SEAL, O-RING
