PULSE OUTPUT KIT OPTION
This pump can be fitted with a Pulse Output Kit. This converts the mechanical strokes of the
pump to an electrical signal which interfaces with the Stroke Counter/ Batch Controller or user
control devices such as a PLC.
The Pulse Output Kits mount directly onto the Muffler Cap on the Air Distribution Valve Assembly
or onto the air valve and senses each stroke of the main spool.
Consult the factory for further information and availability.

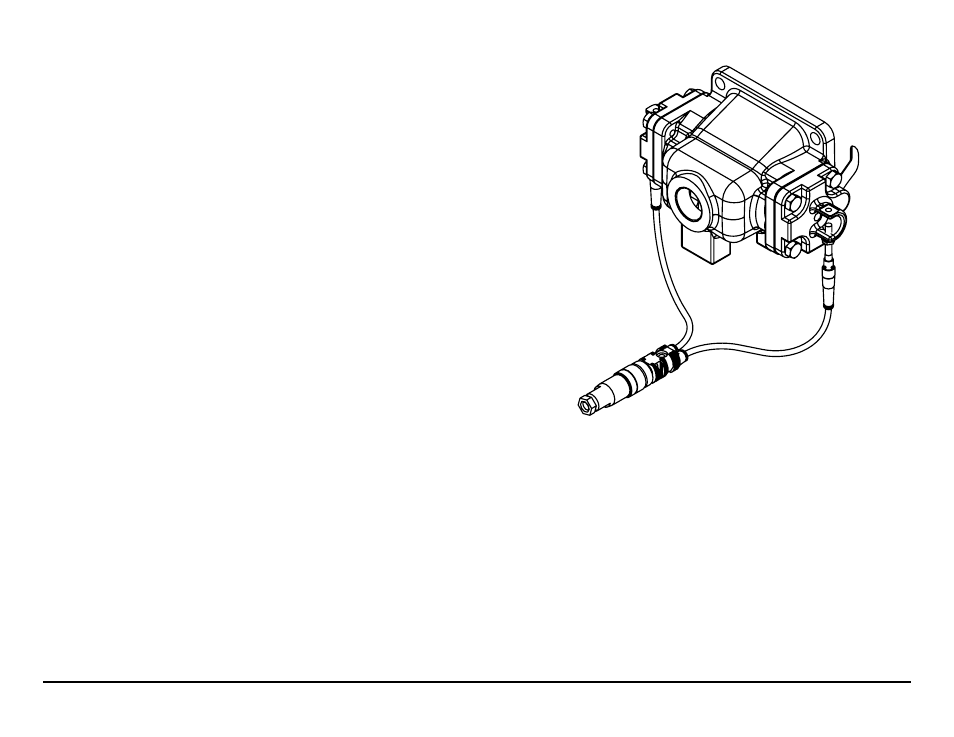

Pulse Output Kit Drawing
Pulse Output Kits
475-244-001 10-30 VDC
475-244-002 110/220 VAC
475-244-003 10-30VDC, 110VAC and 220 VAC
