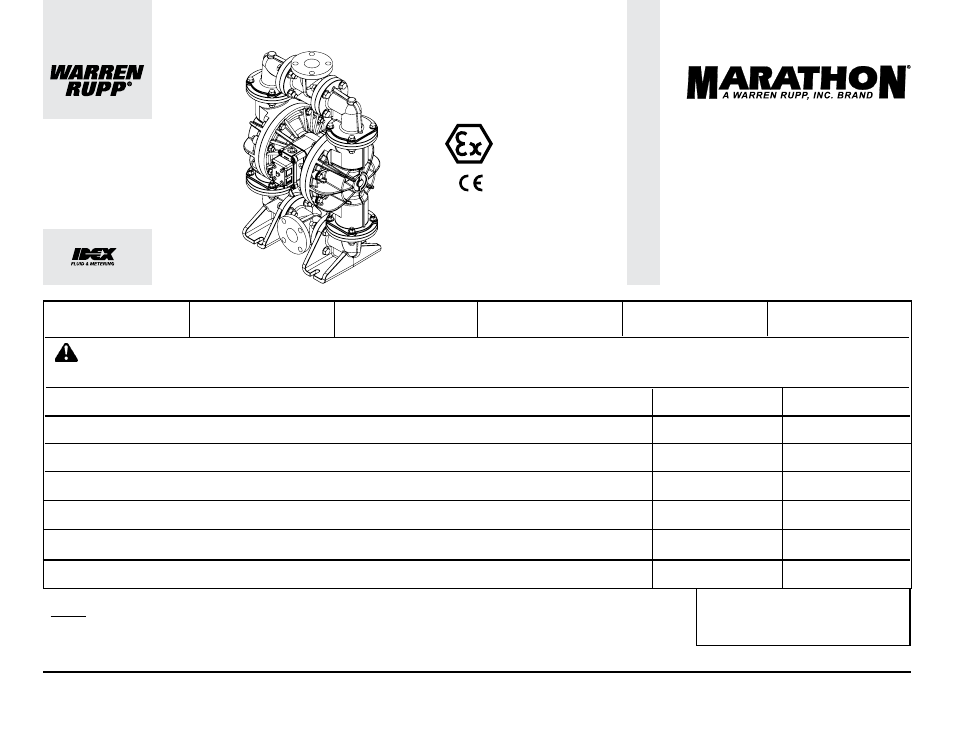

m20nmdl3sm-rev0713 Model M20 Non-Metallic Page 1
INTAKE/DISCHARGE PIPE SIZE
2" Universal Flange
(Fits ANSI & DIN Flange)
CAPACITY
0 -160 US Gallons per minute
(0 - 605 liters per minute)
AIR VALVE
No-lube, no-stall
design
SOLIDS-HANDLING
Up to .66 in. (17mm)
HEADS UP TO
100 psi or 231 ft. of water
(7 bar or 70 meters)
DISPLACEMENT/STROKE
.46 US gallons (1.73 liter)
Quality System
ISO9001 Certified
Environmental
Management System
ISO14001 Certified
M20
Non-Metallic
Ball Valve
Design Level 3
Air Operated
Double Diaphragm Pump
ENGINEERING, PERFORMANCE
& CONSTRUCTION DATA
See page 2
for ATEX ratings. See pages 2, 33 and 34
for ATEX ratings.
For specific applications, always consult the Warren Rupp “Chemical Resistance Chart”
CAUTION! Operating temperature limitations are as follows:
Materials
Maximum* Minimum*
Operating Temperatures
CAUTION: Nonmetallic pumps and plastic components are not UV stabilized. Ultraviolet radiation can damage these parts and negatively affect material properties.
Do not expose to UV light for extended periods of time.
Nitrile General purpose, oil-resistant. Shows good solvent, oil, water and hydraulic fluid resistance. Should not be used with highly polar solvents
like acetone and MEK, ozone, chlorinated hydrocarbons and nitro hydrocarbons.
PVDF A durable fluoroplastic with excellent chemical resistance. Excellent for UV applications. High tensile strength and impact resistance.
NEOPRENE All purpose. Resistant to vegetable oils. Generally not affected by moderate chemicals, fats, greases and many oils and solvents. Generally
attacked by strong oxidizing acids, ketones, esters, nitro hydrocarbons and chlorinated aromatic hydrocarbons.
PTFE Chemically inert, virtually impervious. Very few chemicals are known to react chemically with PTFE: molten alkali metals, turbulent liquid or gaseous
fluorine and a few fluoro-chemicals such as chlorine trifluoride or oxygen difluoride which readily liberate free fluorine at elevated temperatures.
FKM (Fluorocarbon) shows good resistance to a wide range of oils and solvents; especially all aliphatic, aromatic and halogenated hydrocarbons, acids,
animal and vegetable oils. Hot water or hot aqueous solutions (over 70°F) will attack FKM.
Santoprene ® Injection molded thermoplastic elastomer with no fabric layer. Long mechanical flex life. Excellent abrasion resistance.
Polypropylene A thermoplastic polymer. Moderate tensile and flex strenght. Resists strong acids and alkalie. Attacked by chlorine, fuming nitric acid and
other strong oxidizing agents.
190°F -10°F
88°C -23°C
250°F 0°F
121°C -18°C
200°F -10°F
93°C -23°C
220°F -35°F
104°C -37°C
350°F -40°F
177°C -40°C
275°F -40°F
135°C -40°C
180°F 32°F
82°C 0°C
Maximum and Minimum Temperatures are the limits for which
these materials can be operated. Temperatures coupled with
pressure affect the longevity of diaphragm pump components.
Maximum life should not be expected at the extreme limits of
the temperature ranges.
