SANDPIPER M20 Non-Metallic - Manual (Page 14)

m20nmdl3sm-rev0713 Model M20 Non-Metallic Page 12
Torque:
350 in. lbs.
Torque:
400 in. lbs.
Torque:
350 in. lbs.
Torque:
480 in. lbs.
Torque:
480 in. lbs.
Torque:
120 in. lbs.
Torque:
150 in. lbs.
Torque:
120 in. lbs.

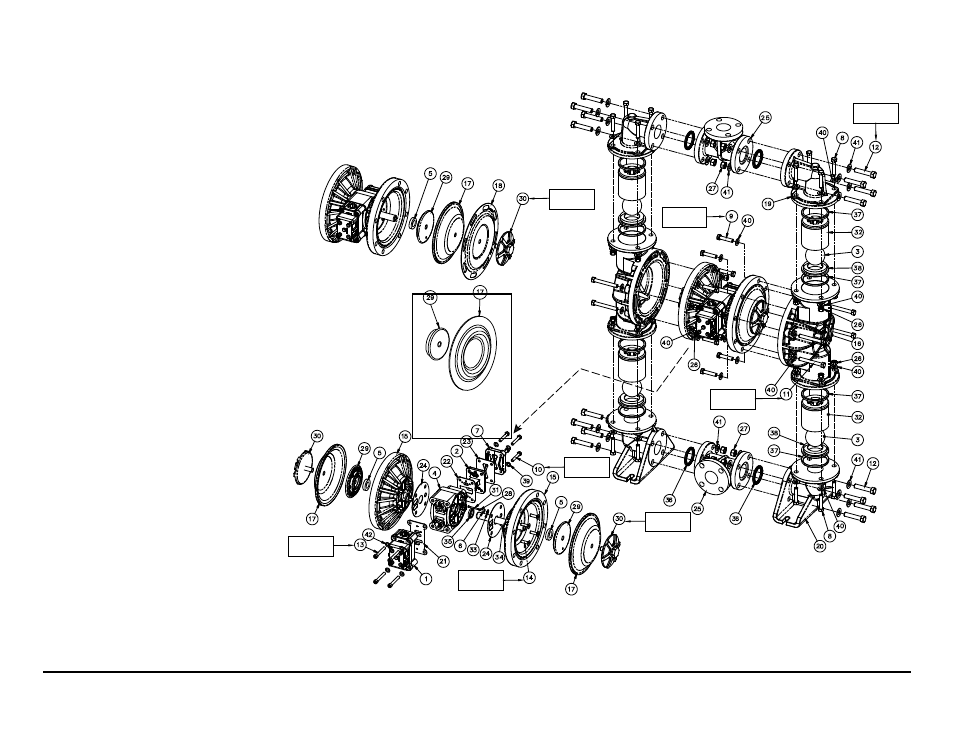

Composite Repair Drawing
Overlay Option
Drawing
One-Piece
Bonded Option
Fluid End Section
Assembly
Air End Section
Assembly
476-253-000 AIR END KIT
Seals, O-Rings, Gaskets,
Retaining Rings, Air Valve
Sleeve & Spool Set
and Pilot Valve Assembly
476-254-000 AIR END KIT
(for Stroke Indicator Option)
Seals, O-Rings, Gaskets,
Retaining Rings, Air Valve
Sleeve & Spool Set
and Pilot Valve Assembly
476-257-354 WETTED END KIT
Santoprene Diaphragms,
Santoprene Balls and TFE Seals
476-257-360 WETTED END KIT
Nitrile Diaphragms,
Nitrile Balls and PTFE Seals
476-257-365 WETTED END KIT
Neoprene Diaphragms,
Neoprene Balls and PTFE Seals
476-257-633 WETTED END KIT
FKM Diaphragms,
PTFE Balls and PTFE Seals
476-257-635 WETTED END KIT
Neoprene Diaphragms,
PTFE Overlay Diaphragms,
PTFE Balls and PTFE Seals
476-257-654 WETTED END KIT
Santoprene Diaphragms,
PTFE Overlay Diaphragms,
PTFE Balls and PTFE Seals
476-258-640 WETTED END KIT
(For Spill Containment Pumps)
Neoprene Diaphragms,
PTFE Overlay Diaphragms,
PTFE Balls and PTFE Seals
