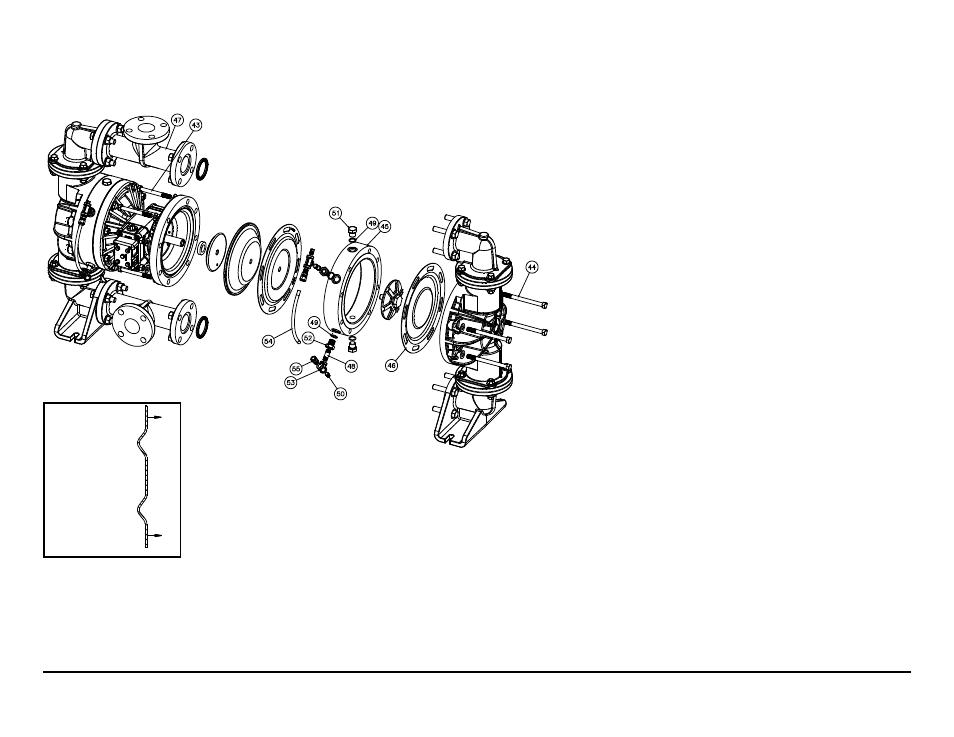

Spill Containment Option
M20 Spill Containment Repair Parts List
ITEM PART NUMBER DESCRIPTION QTY
1 031-146-000 Air Valve Assembly 1
(replaces 031-140-000)
031-147-000 Air Valve Assembly 1
(replaces 031-141-000)
43 170-073-115 Capscrew, Hex HD 1/2-13 x 4.50 8
(replaces 170-068-115)
170-073-308 Capscrew, Hex HD 1/2-13 x 4.50 8
(replaces170-068-115)
44 170-102-115 Capscrew, Hex HD 1/2-13 x 6.00 8
(replaces 170-095-115)
170-102-308 Capscrew, Hex HD 1/2-13 x 6.00 8
45 196-189-520 Chamber, Spill Prevention 2
196-189-552 Chamber, Spill Prevention 2
46 286-120-600 Diaphragm, Pumping 2
47 518-200-520 Manifold 2
(replaces 518-199-520)
518-200-520E Manifold, 50mm DIN 2
(replaces 518-199-520E)
518-200-552 Manifold 2
(replaces 518-199-552)
518-200-552E Manifold, 50mm DIN 2
(replaces 518-199-552E)
48 538-022-110 Nipple, Pipe 4
538-022-308 Nipple, Pipe 4
49 560-078-611 O-Ring 8
50 618-003-110 Plug, Pipe 4
618-003-308 Plug, Pipe 4
51 618-025-110 Plug, Boss 4
618-025-308 Plug, Boss 4
52 618-031-110 Plug, Boss 4
618-031-308 Plug, Boss 4
53 835-005-110 Tee, Pipe 4
835-005-308 Tee, Pipe 4
54 860-055-606 Tube, Sight 2
55 866-060-110 Connector, Tube 4
Note:
Items # 46
the diaphragms
are to be installed
with the concave
side facing
toward the outer
chambers.
