SANDPIPER WR10 3/8 - Manual (Page 9)

Page 6 Rev 0614
DETAIL B
DETAIL B
DETAIL A
45
46
44
38
40 37 34
33
12
10
9
62
1
11
2 3
5
4
35
8
60 in-lbs
(6.8 N-m)
Torque
Settings
25 in-lbs
(2.8 N-m)
40 in-lbs
(4.5 N-m)
Water Chamber Bolts 40 in-lbs (4.5 N-m)
Diaphragm Plates — Rubber 60 in-lbs (6.8 N-m)
Diaphragm Plates — PTFE 60 in-lbs (6.8 N-m)
Air Valve Cap Screws 25 in-lbs (2.8 N-m)
Description Qty Part Number
Valve Spool U-Cup 2 P98-104A
End Cap O-Ring 2 E500E
Air Diverter 1 10-075
Valve Insert 1 E500H
Valve Gasket 1 E800J
Pilot Shaft O-Ring 6 E503B
Main Shaft O-Ring 2 E503B

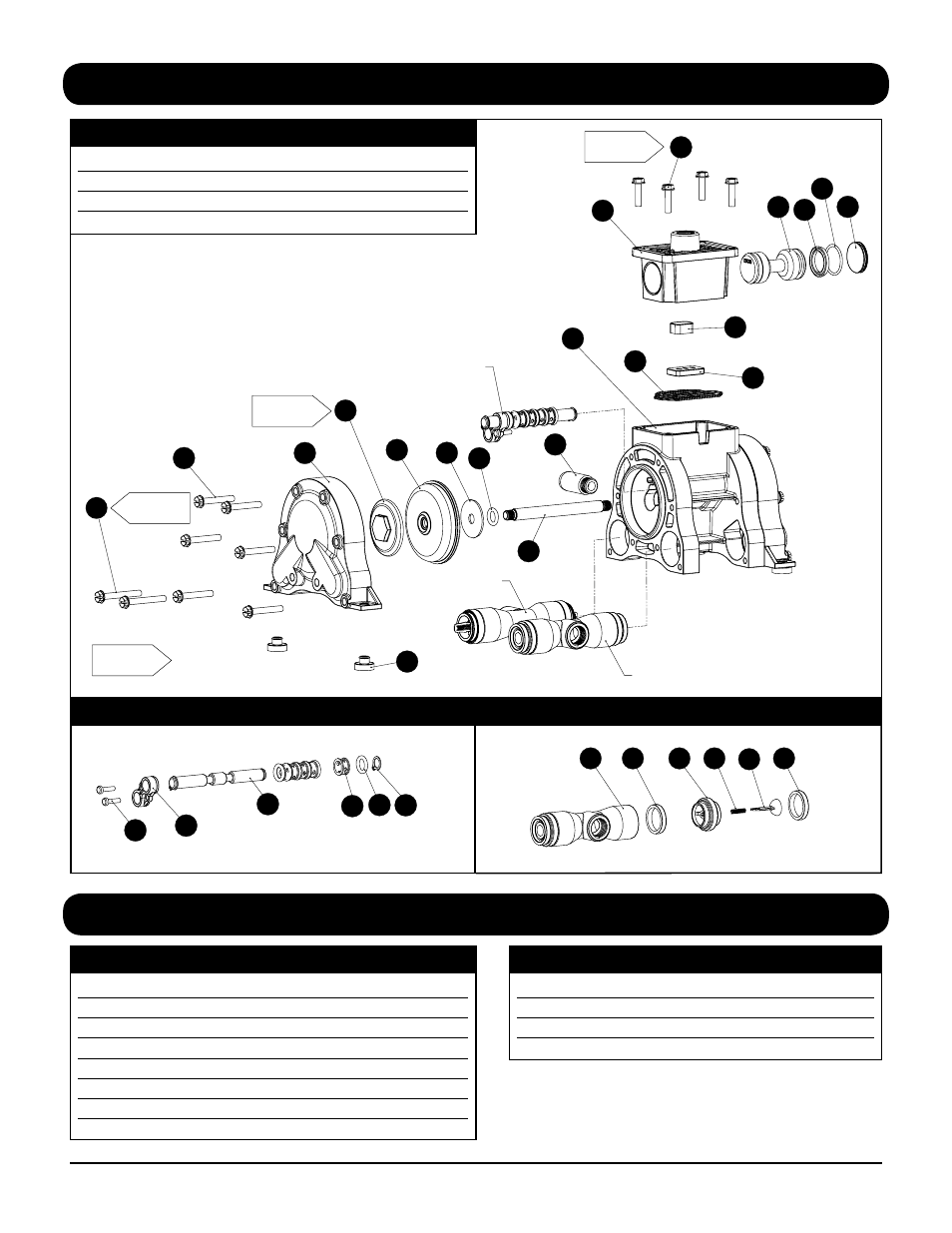

WR10 EXPLODED VIEW
WR10 Repair and Maintenance Kits
Torque Settings
Air End Kit- Part #: WR10 AIR KIT
Part Number Description
WR10 XL KIT XL Elastomer Kit
WR10 G KIT Geolast Elastomer Kit
WR10 TX KIT PTFE Elastomer Kit
Wetted End Kits
Detail A Detail B
25
22
18 19 20 21
60 50 52 53 51 51
