Specifications
Consult factory for certified drawings.
Disch
arge He
ad in PSI
1 5 3
0
100
90
80
70
60
50
40
30
20
10
0
Meters Feet
240
220
200
180
160
140
120
100
80
60
40
20
0
75
70
65
60
55
50
45
40
35
30
25
20
15
10
5
0 0
1
2
3
4
5
6
7
BAR 6 4 9 8 7 2 0
5 10 15 20 25 30 35
Capacity in Liters Per Minute
Capacity in U.S. Gallons Per Minute
Displacement Per Stroke, 0.009 Gal. (0.034 L)
1
3
5
AIR CONSUMPTION IN SCFM
AIR PRESSURE IN PSI
SCFM M3/HR
1 1.7
3 5.1
5 8.5
Flow Rate adjustable to . 0-6.8 gpm (261 lpm)
Port Size
Inlet and Discharge . . . . 3/8" Female NPT (BSP)
Air Inlet . . . . . . . . . . . . . . . 0.25" Female NPT
Air Exhaust . . . . . . . . . . . 0.25" Female NPT
Suction Lift . . . . . . . . . . . . . . .8' (2.44 m) Dry
Max. Particle Size (Diameter) 0.10"(2.25 mm)
dB(A) Reading . . . . . . . . . . . . . . . . . . . . 78 dB(A)
Shipping Weights
Polypropylene . . . . . . . . . . . . . . . 3 lbs (1.40 kg)
Kynar . . . . . . . . . . . . . . . . . . . . . 4.5 lbs. (2.04 kg)
CAUTION: Do not exceed 100 psig (6.8 bars) air supply or liquid pressure.
Performance
2.79
[71]
0.94
[24]
Opposite Side:
1/4" Female NPT Air Exhaust
Removable Foot Pad
5/16" Mounting Hole
3/8" Female NPT
Fluid Discharge Connection
3/8" Female NPT
Fluid Suction
Connection
1/4" Female NPT
Air Inlet Connection
5.32
[135]
0.20
[5]
15.71
[399]
2.07
[53]
4.09
[104]
POLY
5.13
[130]
KYNAR
5.08
[129]
POLY
5.72
[145]
KYNAR
5.67
[144]
2.07
[53]
Inches [mm]

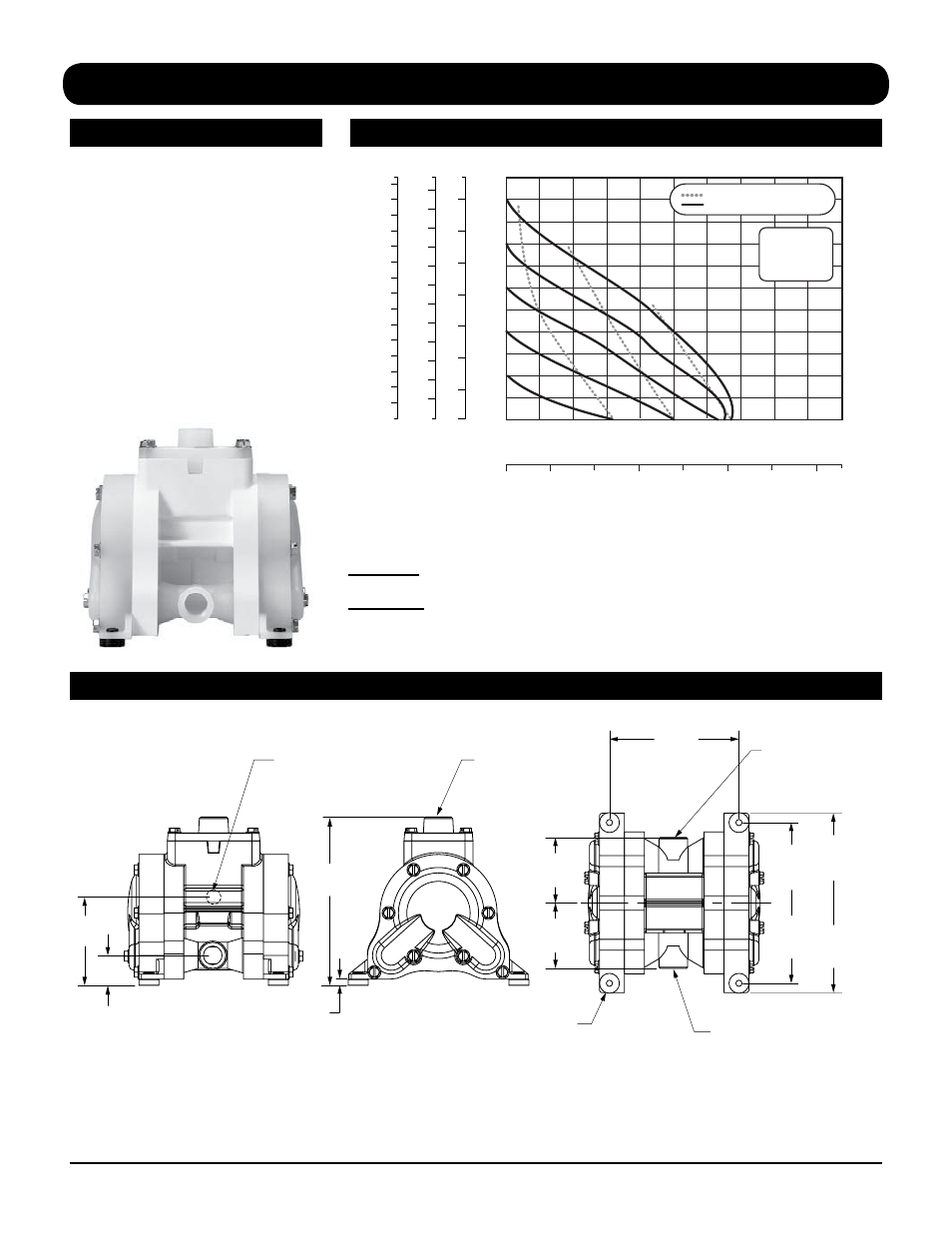

WR10 SPECIFICATIONS & PERFORMANCE
Dimensions
Front
Inches
[mm]
Side Bottom
CAUTION: Nonmetallic pumps and plastic components are not UV stabilized. Ultraviolet
radiation can damage these parts and negatively affect material properties. Do not expose to
UV light for extended periods of time.
