SANDPIPER T15 - Manual (Page 5)

t15mdl1sm-rev0614
sandpiperpump
.
com Model T15 Metallic •
2
Performance
T15 METALLIC
SUCTION/DISCHARGE PORT SIZE
•2" Sanitary Clamp
CAPACITY
• 0 to 106 gallons per minute
(0 to 401 liters per minute)
AIR DISTRIBUTION VALVE
• No-lube, no-stall design
SOLIDS-HANDLING
• Up to .25 in. (6mm)
HEADS UP TO
• 125 psi or 289 ft. of water
(8.6 Kg/cm 2 or 86 meters)
DISPLACEMENT/STROKE
• .41 Gallon / 1.55 liter
MAX OPERATING PRESSURE
• 125 psi (8.6 bar)
SHIPPING WEIGHT
• Stainless Steel 95 lbs. (43kg)
Materials
CAUTION! Operating temperature limitations are as follows:

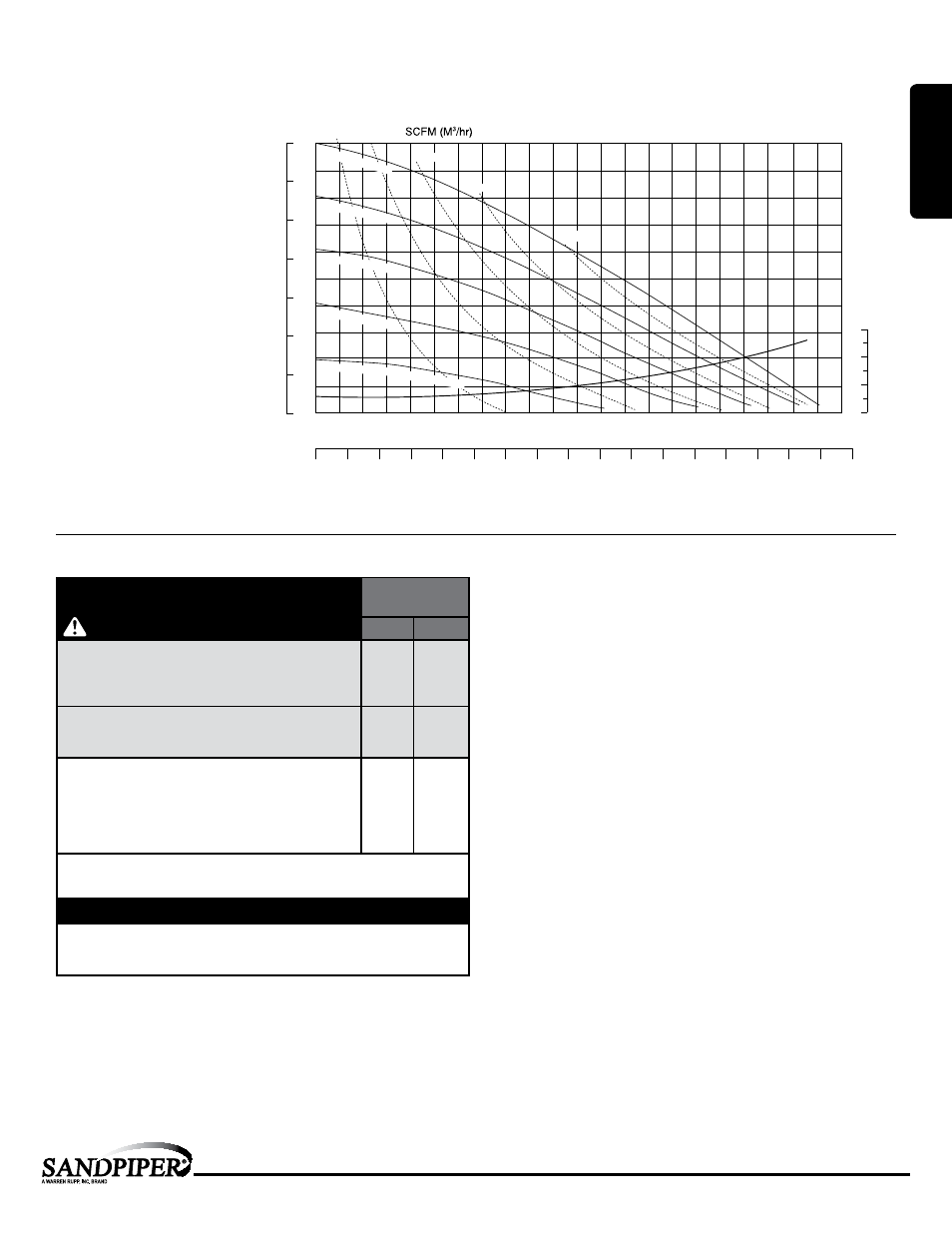

10 (17) 20 (34)
70 80 90 100 110 60 50 40 30 20 10 0
CAPACITY
U.S. Gallons per minute
Liters per minute
425 400 375 350 325 300 275 250 225 200 175 150 125 100 75 50 25 0
100
90
80
70
60
50
40
30
20
10
0
BAR PSI
HEAD
1
2
3
4
5
6
7
0
30
20
10
0
9.1
6
7.6
3
4.5
1.5
NPSHR
FEET METERS
100 PSI (6.8 Bar)
80 PSI (5.44 Bar)
60 PSI (4.08 Bar)
40 PSI (2.72 Bar)
20 PSI (1.36 Bar)
Air Inlet Pressure
30 (51)
40 (68)
50 (85)
Performance based on the following: elastomer fitted pump, flooded suction, water at ambient conditions.
The use of other materials and varying hydraulic conditions may result in deviations in excess of 5%.
Material Profile: Operating
Temperatures:
Max. Min.
Nitrile: General purpose, oil-resistant. Shows good solvent, oil,
water and hydraulic fluid resistance. Should not be used with
highly polar solvents like acetone and MEK, ozone, chlorinated
hydrocarbons and nitro hydrocarbons.
190°F
88°C
-10°F
-23°C
Santoprene®: Injection molded thermoplastic elastomer with
no fabric layer. Long mechanical flex life. Excellent abrasion
resistance.
275°F
135°C
-40°F
-40°C
Virgin PTFE: (PFA/TFE) Chemically inert, virtually impervious.
Very few chemicals are known to chemically react with PTFE;
molten alkali metals, turbulent liquid or gaseous fluorine and
a few fluoro-chemicals such as chlorine trifluoride or oxygen
difluoride which readily liberate free fluorine at elevated
temperatures.
220°F
104°C
-35°F
-37°C
Maximum and Minimum Temperatures are the limits for which these materials can be operated.
Temperatures coupled with pressure affect the longevity of diaphragm pump components.
Maximum life should not be expected at the extreme limits of the temperature ranges.
Metals:
Stainless Steel: Equal to or exceeding ASTM specification A743 CF-8M for corrosion
resistant iron chromium, iron chromium nickel and nickel based alloy castings for
general applications. Commonly referred to as 316 Stainless Steel in the pump industry.
For specific applications, always consult the Chemical Resistance Chart.
CAUTION! Operating temperature limitations are as follows:
1: PUMP
SPECS
