Dimensions: u1f ul79 listed metallic – SANDPIPER U1F User Manual
Page 6
u1fmdl1sm-rev0614
Model U1F UL79 Listed Metallic Design Level 1 Page 4
DISCHARGE PORT
1” NPT
SUCTION PORT
1” NPT
AIR INLET
1/2” NPT
WITH 530-033-000
MUFFLER
BOTH SUCTION AND
DISCHARGE PORTS ARE
AVAILABLE WITH
1” BSPT TAPERED THREADS
BOTTOM VIEW
FRONT VIEW
SIDE VIEW
1” NPT EXHAUST PORT
FOR OPTIONAL MUFFLER
STYLES OR PIPING EXHAUST
AIR IN SUBMERGED
APPLICATIONS.

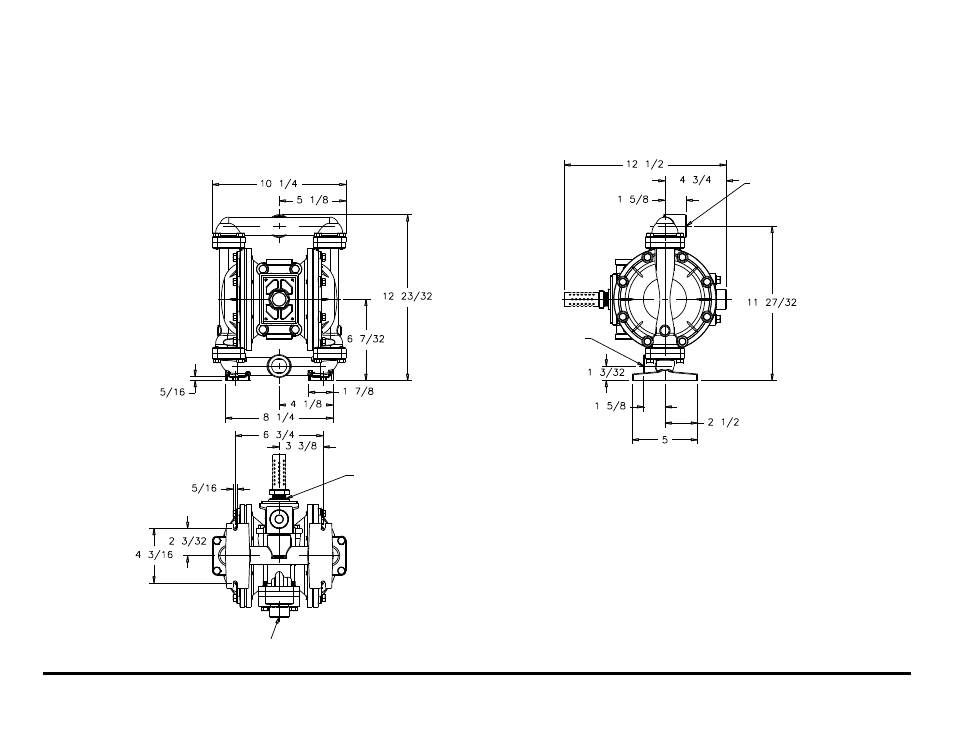

Dimensions: U1F UL79 LISTED Metallic
Dimensions in Inches
Dimensional Tolerance:±
1
/
8
"
