17
• Model S05 Non-Metallic
DUAL PORT SUCTION AND/OR DUAL PORT DISCHARGE
REPAIR PARTS LIST
Item
Part Number
Description
Qty
10*
171.063.115
Capscrew, Flanged 5/16-18 x 1.25
8
171.063.308
Capscrew, Flanged 5/16-18 x 1.25
8
11*
171.064.115
Capscrew, Flanged HD 5/16-18 X 1.50
4
171.064.308
Capscrew, Flanged HD 5/16-18 X 1.50
4
17
312.106.520N
Elbow, ½" NPT (replaces 312.106.520)
2
312.106.521N
Elbow, ½" NPT (replaces 312.106.521)
2
312.106.542N
Elbow, ½" NPT (replaces 312.106.542)
2
312.106.552N
Elbow, ½" NPT (replaces 312.106.552)
2
312.106.557N
Elbow, ½" NPT (replaces 312.106.557)
2
18
312.112.520N
Elbow, ½" NPT (replaces 312.112.520)
2
312.112.521N
Elbow, ½" NPT (replaces 312.112.521)
2
312.112.542N
Elbow, ½" NPT (replaces 312.112.542)
2
312.112.552N
Elbow, ½" NPT (replaces 312.112.552)
2
312.112.557N
Elbow, ½" NPT (replaces 312.112.557)
2
25*
544.005.115
Nut, Flanged 5/16-18
20
544.005.308
Nut, Flanged 5/16-18
20
37
115.144.305
Bracket, Free Standing (replaces 115.140.115)
2
115.144.306
Bracket, Free Standing (replaces 115.140.115)
2
38
171.068.115
Capscrew, Flanged 5/16-18 X 1.63
8
171.068.308
Capscrew, Flanged 5/16-18 X 1.63
8
*Hardware quantities are variable based on porting configurations

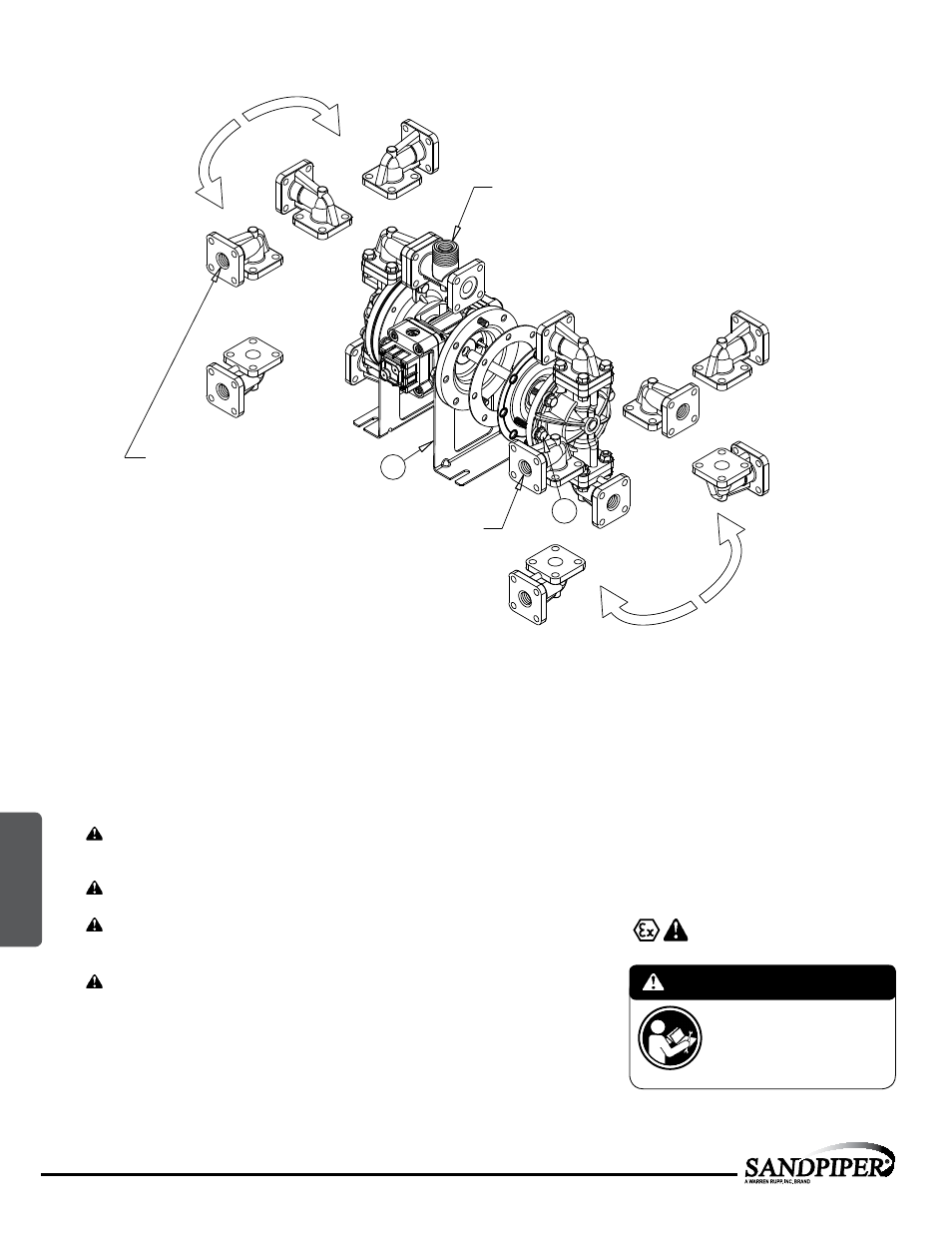

Dual Port Option Drawing
Illustration for Dual Port Suction and Single or Dual Port Discharge
37
38
½" NPT or ½" BSP Tapered
Connection
½" NPT or ½" BSP Tapered
Connection
1" NPT or 1" BSP Tapered External
½" NPT or ½" BSP Tapered Internal
Connection
*Dual suction/dual discharge = no manifold.
ATEX Compliant
IMPORTANT
Read these instructions completely, before
installation and start-up. It is the responsibility
of the purchaser to retain this manual
for reference. Failure to comply with the
recommendations stated in this manual will
damage the pump, and void factory warranty.
6: OPTIONAL
