7
• Model S05 Non-Metallic
IMPORTANT NOTE: Polypropylene pumps are shipped with the 1/2" NPT Pipe Plug (item 37) installed in the end ports of both suction and discharge
one-piece manifolds. To convert to the Inline porting positions for pump installation and operation, first remove the pipe plugs and re-install in the center
ports. Apply PTFE tape or pipe sealant to threads of the plug before installation.
DIAPHRAGM CONFIGURATION
DETAIL
NOTE TO ASSEMBLY
THE DIAPHRAGMS FOR BOTH
CONFIGURATIONS SHOWN ABOVE ARE TO BE
INSTALLED WITH CONVOLUTIONS FACING
TOWARDS CENTER OF PUMP
ILLUSTRATION SHOWS
DIRECTION OF DIAPHRAGMS
476.219.000 AIR END KIT
Seals, O-Ring, Gaskets, Retaining Rings, Air Valve
Assembly and Pilot Valve Assembly.
476.220.000 AIR END KIT (Air Valve with Stroke Indicator Pin)
Seals, O-Ring, Gaskets, Retaining Rings, Air Valve
Assembly Pilot Valve Assembly.
476.202.360 WET END KIT
Nitrile Diaphragms, Nitrile Check Balls, PTFE
Seats and PTFE Seals.
476.202.365 WET END KIT
Neoprene Diaphragms, Neoprene Check Balls,
PTFE Seats and PTFE Seals.
476.202.354 WET END KIT
Santoprene Diaphragms, Nitrile Spacer Gaskets,
Santoprene Check Balls, PTFE Seats and
PTFE Seals.
476.202.357 WET END KIT
Polyurethane Diaphragms, Nitrile Spacer Gaskets,
Santoprene Check Balls, PTFE Seats and PTFE Seals.
476.202.654 WET END KIT
Santoprene Diaphragms, PTFE Overlay
Diaphragm, PTFE Check Balls, PTFE Seats
and PTFE Seals.
476.202.659 WET END KIT
One-Piece Bonded PTFE/Nitrile Diaphragm,
PTFE Balls, PTFE Seats.
Torque:
70 in/lbs
36
35
INLINE DISCHARGE
MANIFOLD OPTION
INLINE DISCHARGE
MANIFOLD OPTION
OVERLAY OPTION
MUFFLER OPTION
Torque:
70 in/lbs
Torque:
50 in/lbs
Torque:
120 in/lbs
Torque:
70 in/lbs
Torque:
50 in/lbs

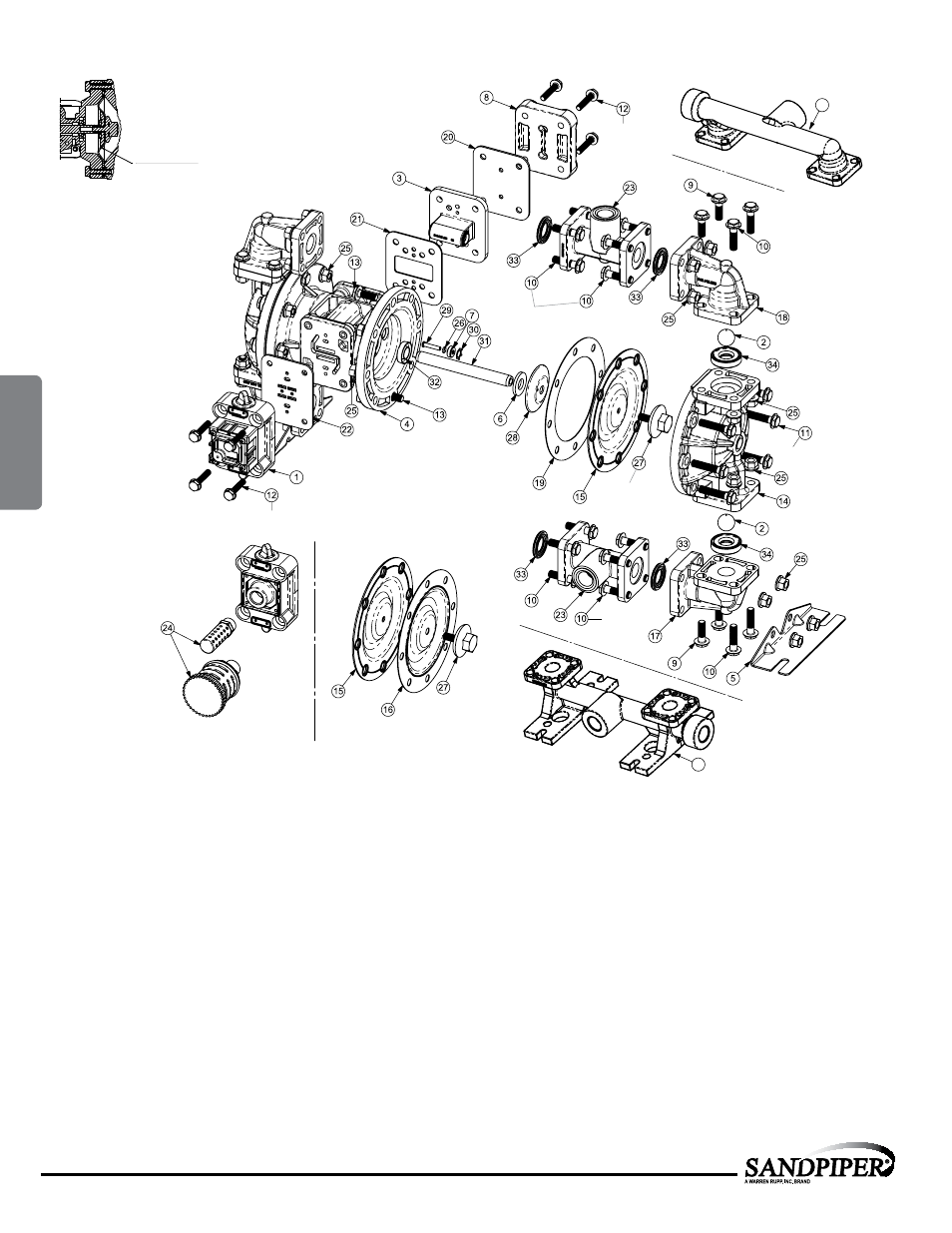

Composite Repair Parts Drawing
Service & Repair Kits
3: EXP
VIEW
