3
• Model HDB1½/HDB40
hdb15dl7sm-rev0714

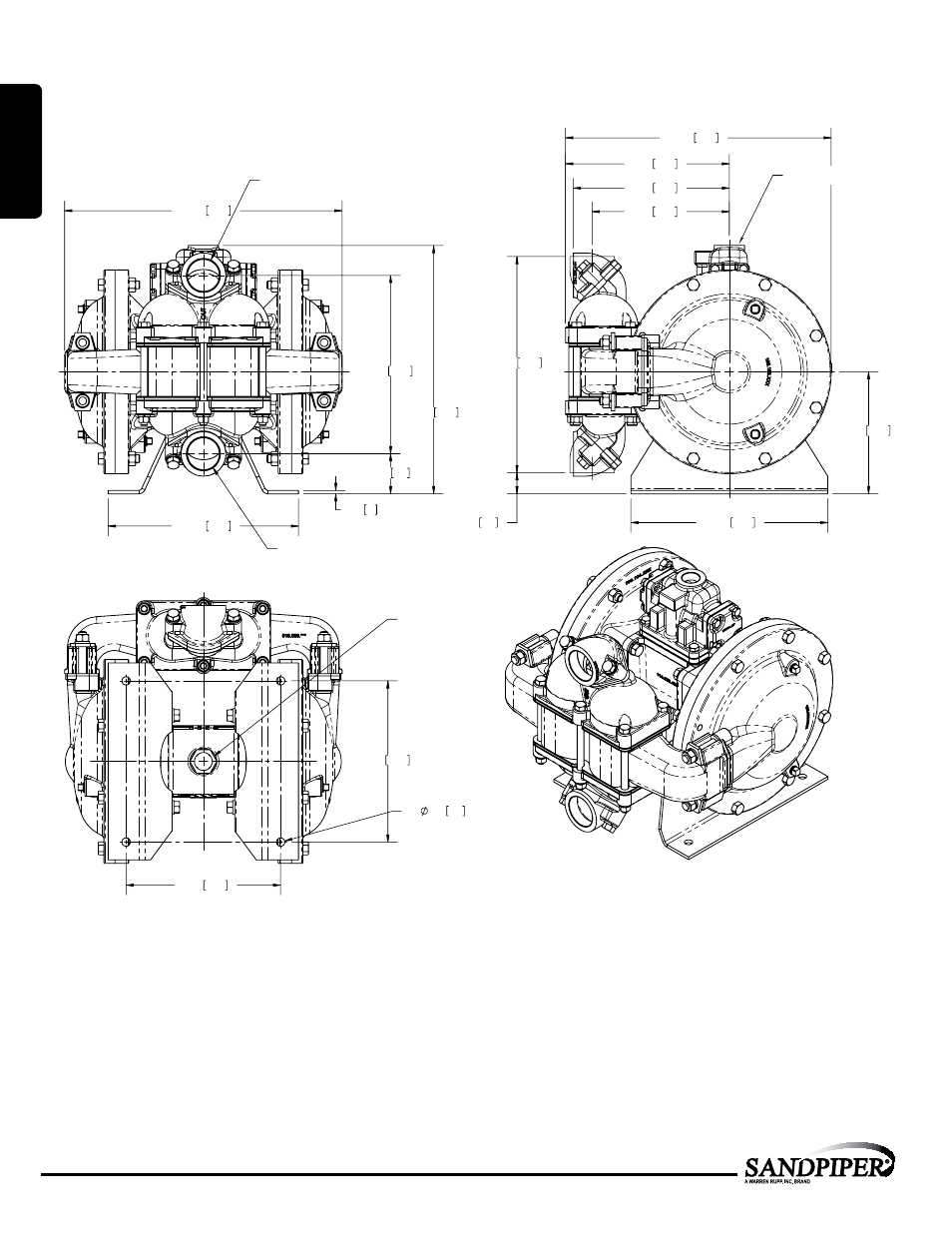

HDB1 1/2 & HDB40, Side Ported
Dimensions are ± .13" (3mm). Figures in parenthesis = millimeters
Model HDB1½-A features 1½" NPT threaded connections.
Model HDB40-A features 1½" BSP Tapered connections.
2.23 57
9.96 253
10.63 270
15.50 394
13.87 352
.19 5
*
*
*
8.71 221
9.15 232
11.00 279
6.81 173
14.84 377
1.18 30
12.06 306
7.67 195
8.63 219
9.00 229
4X .47 12
1 1/2" NPT (1 1/2" BSP TAPERED)
DISCHARGE PORT
1 1/2" NPT (1 1/2" BSP TAPERED)
SUCTION PORT
MOUNTING HOLES
AIR EXHAUST
3/4" NPT
AIR INLET 3/4" NPT
* INDICATES DIMENSIONS WITH SUCTION
AND DISCHARGE PORTS ROTATED 180°
TO A VERTICAL POSITION
Dimensional Drawings
MODEL SPECIFIC
1: PUMP
SPECS
