SANDPIPER HDB40 - Manual (Page 11)

sandpiperpump
.
com Model HDB1½/HDB40 •
8
hdb15dl7sm-rev0714
8
30
17
35
18
34
36
16
15
43
38
12
45
9
22 20 33
23
23
2
44
29
21
22
33
6 11
45
14
45
23
23
7
46
45
30
10
24
39
31
3
41
32
28
19
*
*
40
2
*
37 27
5
42
42
25
26
1
13
4
NOTE:
FOR TEFLON UNITS (SGN, SGV, DGN, & DGV)
ADD ITEM #19, AND REMOVE ITEM #34
Optional Angle Valve Kit
These items available in
kit form only- Order PN:
475.102.000.
Optional Rubber Foot Kit:
These items available in
kit form only- Order PN:
475.101.000.

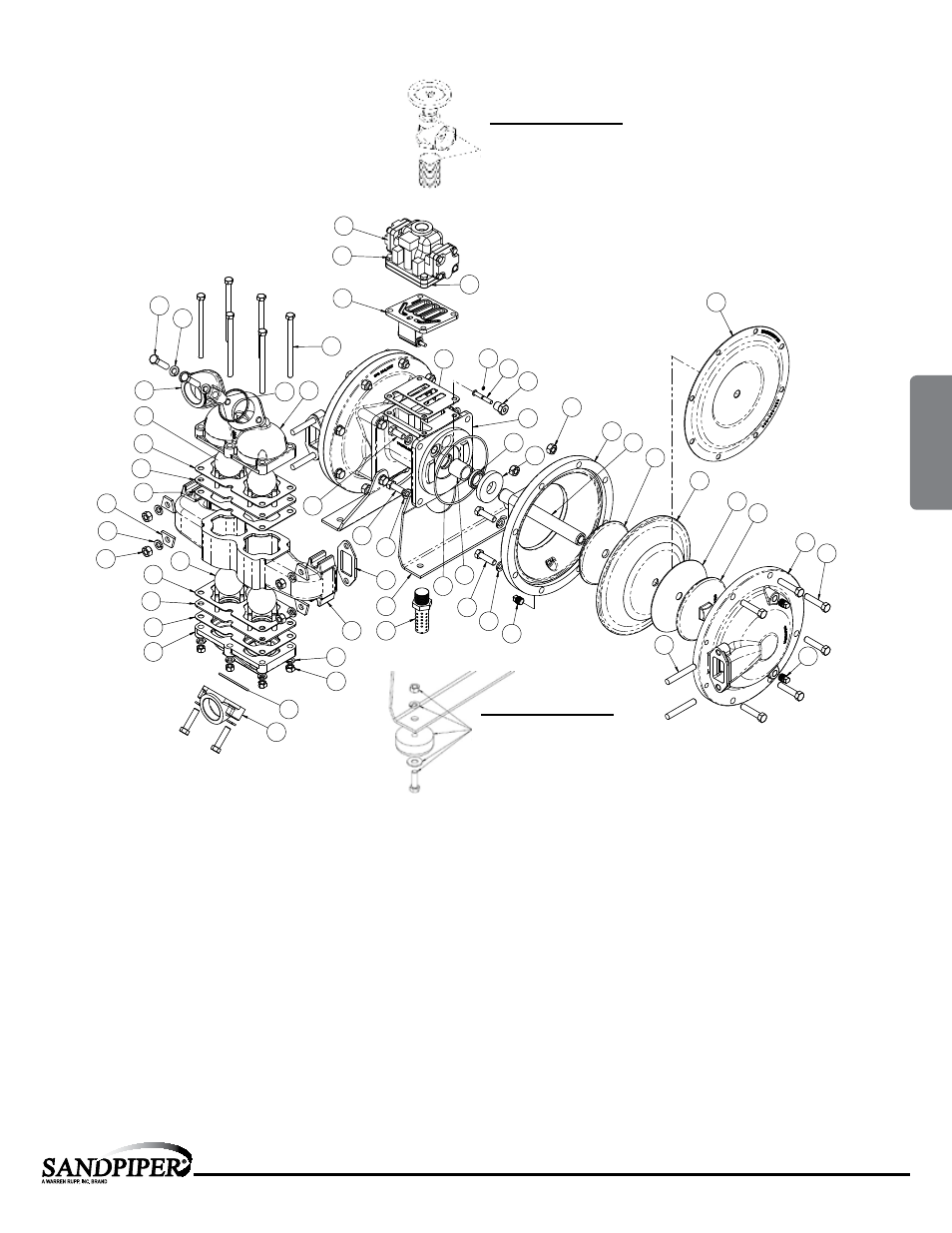

Troubleshooting Guide Composite Repair Parts Drawing - Side Ported
476.247.000 Air End Kit
Sleeve and Spool Set, O-rings, Bumpers, U-Cup Seals,
and Gaskets.
476.244.354 Wet End Kit
Santoprene Diaphragms, Santoprene Balls, Santoprene
Wear Pads, Conductive PTFE Seat Gaskets,
Fiber Manifold Gaskets, Nitrile O-rings
476.244.360 Wet End Kit
Nirtile Diaphragms, Weighted Nitrile Balls, Conductive
Nitrile Seat Gaskets, Fabric Manifold Gaskets, Nitrile
O-Rings, Nitrile Wear Pads
476.244.363 Wet End Kit
FKM Diaphragms, FKM Balls, Conductive PTFE Seat
Gaskets, PTFE Manifold Gaskets, PTFE Encapsulated
O-rings, FKM Wear Pads
476.244.364 Wet End Kit
EPDM Diaphragms, EPDM Balls, Conductive PTFE Seat
Gaskets, Fabric Manifold Gaskets, Nitrile O-rings,
EPDM Wear Pads
476.244.365 Wet End Kit
Neoprene Diaphragms, Weighted Neoprene Balls,
Conductive Neoprene Seat Gaskets, Fabric Manifold
Gaskets, Nitrile O-rings, Neoprene Wear Pads
476.244.644 Wet End Kit
Santoprene Diaphragms, PTFE Balls, Conductive PTFE
Seat Gaskets, PTFE Manifold Gaskets,
PTFE Encapsulated O-rings, EPDM Wear Pads
476.261.635 Wet End Kit
Neoprene Backup Diaphragms, PTFE Overlay Diaphragms,
PTFE Balls, Conductive PTFE Seat Gaskets, PTFE Manifold
Gaskets, PTFE Encapsulated O-rings
476.036.659 Wet End Kit
PTFE One-Piece Diaphragms, PTFE Balls, Conductive PTFE
Seat Gaskets, PTFE Manifold Gaskets,
PTFE Encapsulated O-rings
Service & Repair Kits
MODEL SPECIFIC
3: EXP
VIEW
